THE STRONGEST, MOST DURABLE

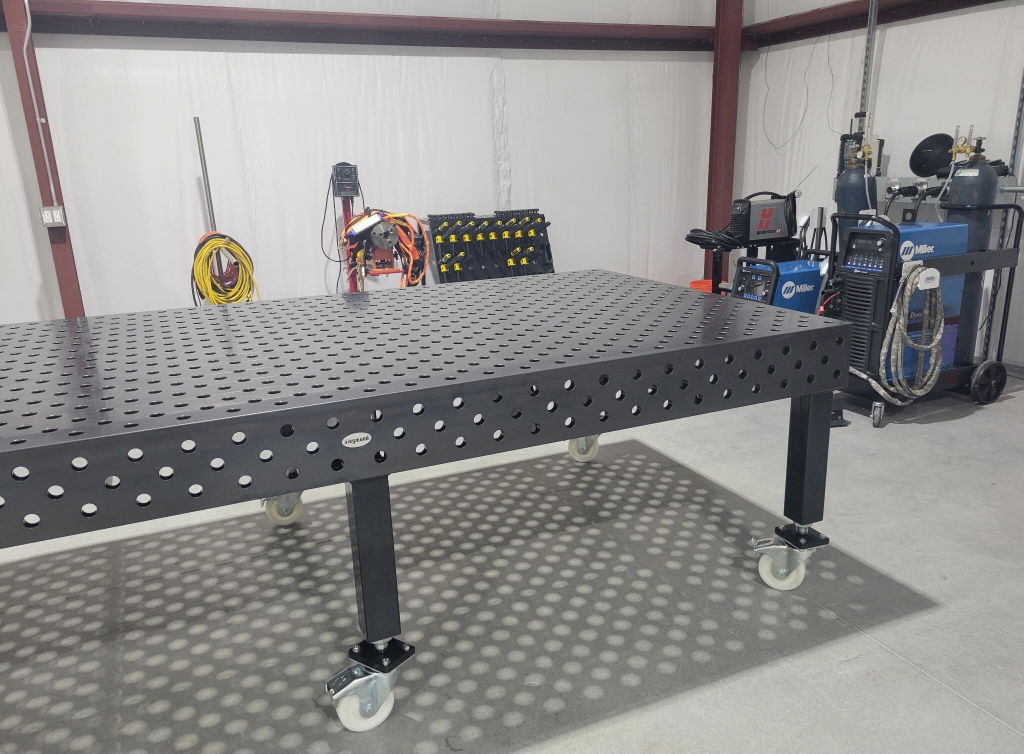

Welding Tables
Ever Made
We offer Welding Table Systems for Every Type of Welding Job
The World's Most Trusted
Welding Tables
Can't Decide Which Welding Table to Choose?
Contact Our
Team for More
Information

Siegmund
Welding Table Systems

The ALL-NEW Fast Clamping Bolt

Fast Clamping Bolt with Handle for System 28mm Welding Tables and Accessories (Item No. 2-280516, also known as S2-280516).

With the Fast Clamping Bolt with handle, components can be clamped quickly and easily without any additional tools. The clamping stroke can be regulated with the adjusting nut in the range from 33mm (1.3") to 60mm (2.3").

This bolt is NOT permitted for combining tables and U-formed squares!

PRICE IS ONLY $106 EACH.

Specs and Features:

Length: 9.25" (235mm)
Diameter: 1.10" (28mm)
Shearing Force (k1): 220 kN

Tensile Force (k2): 25 kN

Weight: 1.4 Ibs.

Click Here to order the ALL-NEW SIegmund Fast Clamping Bolt.

Best Sellers

Go to section
Go to section
Go to section
Go to section

Find Out Which Welding Table System is Best for You

For any additional questions, Call our team at (909) 476-8007

The System 16 Welding Tables

The System 16 Welding Tables are generally used for fine detail applications.

Borehole Radius: 0.080" (2mm)

Borehole Diameter: 0.63" (16mm)
Grid Styles Available: Standard Grid
Height of the Table Top: 3.93" (100mm)
Weight Load Per Standard Table Leg: 2,200 lbs.
Borehole Spacing:
 1.96" x 1.96" Grid (50mm x 50mm)
Borehole Spacing on Table Side Panels: 0.98" (25mm)
Table Edge & Corner Radii: 0.120" / 0.230" (3mm / 6mm)
Material Thickness:
Approx. 0.45" x 0.51" (11.5mm - 13mm)
Material Type: Hardened X8.7 Tool Steel, Plasma Nitrided and BAR-Coated

Most of the System 16 Series Tables have Reinforced Ribbing on the underside of the tables and Measurement Scaling on the Table Tops in mm for accurate measuring.

The System 22 Welding Tables

The System 22 Welding Tables are stronger than the System 16 Series Tables and are a middle of the road option between the System 16 Tables and The System 28 Tables.

Borehole Radius: 0.10" (2.5mm)

Borehole Diameter: 0.86" (22mm)
Grid Styles Available: Standard Grid & Diagonal Grid
Height of the Table Top: 5.90" (150mm)
Weight Load Per Standard Table Leg: 2,200 lbs.
Borehole Spacing:
 3.93" x 3.93" Grid (100mm x 100mm)
Borehole Spacing on Table Side Panels: 1.96" (50mm)
Table Edge & Corner Radii: 0.120" / 0.230" (3mm / 6mm)
Material Thickness:
 Approx. 0.67" x 0.75" (17mm - 19mm)
Material Type: Hardened X8.7 Tool Steel, Plasma Nitrided and BAR-Coated

Most of the System 22 Series Tables have Reinforced Ribbing on the underside of the tables and Measurement Scaling on the Table Tops in mm for accurate measuring.

The System 28 Welding Tables

The System 28 Welding Tables are stronger than any Welding Table available in the world market today. They are made to outlast every piece of equipment in your shop and to handle any Heavy Duty Application.

Borehole Radius: 0.120" (3mm)

Borehole Diameter: 1.10" (28mm)
Grid Styles Available: Standard Grid & Diagonal Grid
Height of the Table Top: 7.87" (200mm)
Weight Load Per Standard Table Leg: 4,400 lbs.
Borehole Spacing:
 3.93" x 3.93" Grid (100mm x 100mm)
Borehole Spacing on Table Side Panels: 1.96" (50mm)
Table Edge & Corner Radii: 0.120" / 0.230" (3mm / 6mm)
Material Thickness:
 Approx. 0.96" x 1.06" (24.5mm - 27mm)
Material Type: Hardened X8.7 Tool Steel, Plasma Nitrided and BAR-Coated

Most of the System 28 Series Tables have Reinforced Ribbing on the underside of the tables and Measurement Scaling on the Table Tops in mm for accurate measuring.
