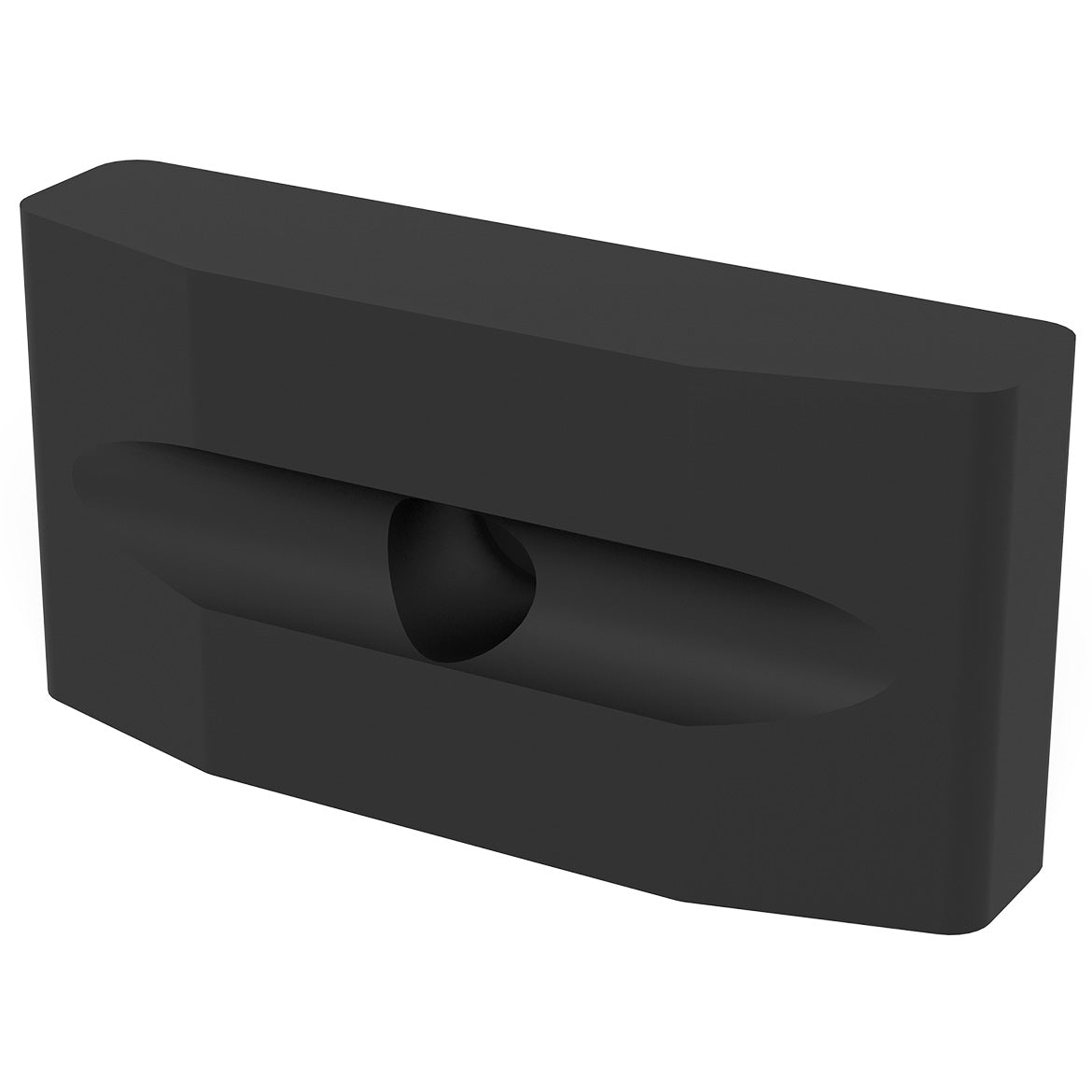

The Siegmund Pipe Bending Plug Ø21.4mm POM-C is a specialized tool designed for precision pipe bending and straightening with Siegmund Table Press systems. Its durable, precision-milled polymer body ensures consistent results while preventing damage to pipe surfaces — ideal for delicate or finished materials such as stainless or coated tubing.
- Compatible with Siegmund Table Press models 2-280780, 2-220780, and 2-160780.
- Designed specifically for pipes with an outer diameter of Ø21.4mm (0.84" Inches).
- Manufactured from POM-C for exceptional dimensional stability and surface protection.
- Used for both pipe bending and straightening applications.
- Fits Siegmund System 28, 22, and 16 fixturing systems.
Key Features:
- Enables smooth, controlled bending and straightening of Ø21.4mm round pipes.
- Non-metallic POM-C material prevents marking or deformation of the pipe surface.
- Provides precise contact and uniform pressure across the entire pipe section.
- Lightweight, durable, and optimized for high-repeatability shop use.
I- ntegrates directly with all Siegmund Table Press configurations.
Specifications:
- Siegmund System 28 / 22 / 16 Metric Series
- Designed For: Siegmund Table Press 2-280780 / 2-220780 / 2-160780
- Pipe Compatibility: Ø21.4mm (0.84" Inches)
- Length: 120mm (4.72" Inches)
- Width: 35mm (1.38" Inches)
- Height: 60mm (2.36" Inches)
- Weight: 0.55 lbs. (0.25 kg.)
- Material: POM-C (Acetal Engineering Plastic)
- Function: Pipe Bending and Straightening
- Recommended Use: Stainless and Polished Pipes
Common Uses:
The Siegmund Pipe Bending Plug 2-000704.1 is designed for accurate forming and correction of Ø21.4mm (0.84" Inches) round pipes. Used with the Siegmund Table Press, it allows for clean, repeatable bends and precise straightening without scratching or deforming the workpiece — ideal for fabrication, welding preparation, and custom frame building.
