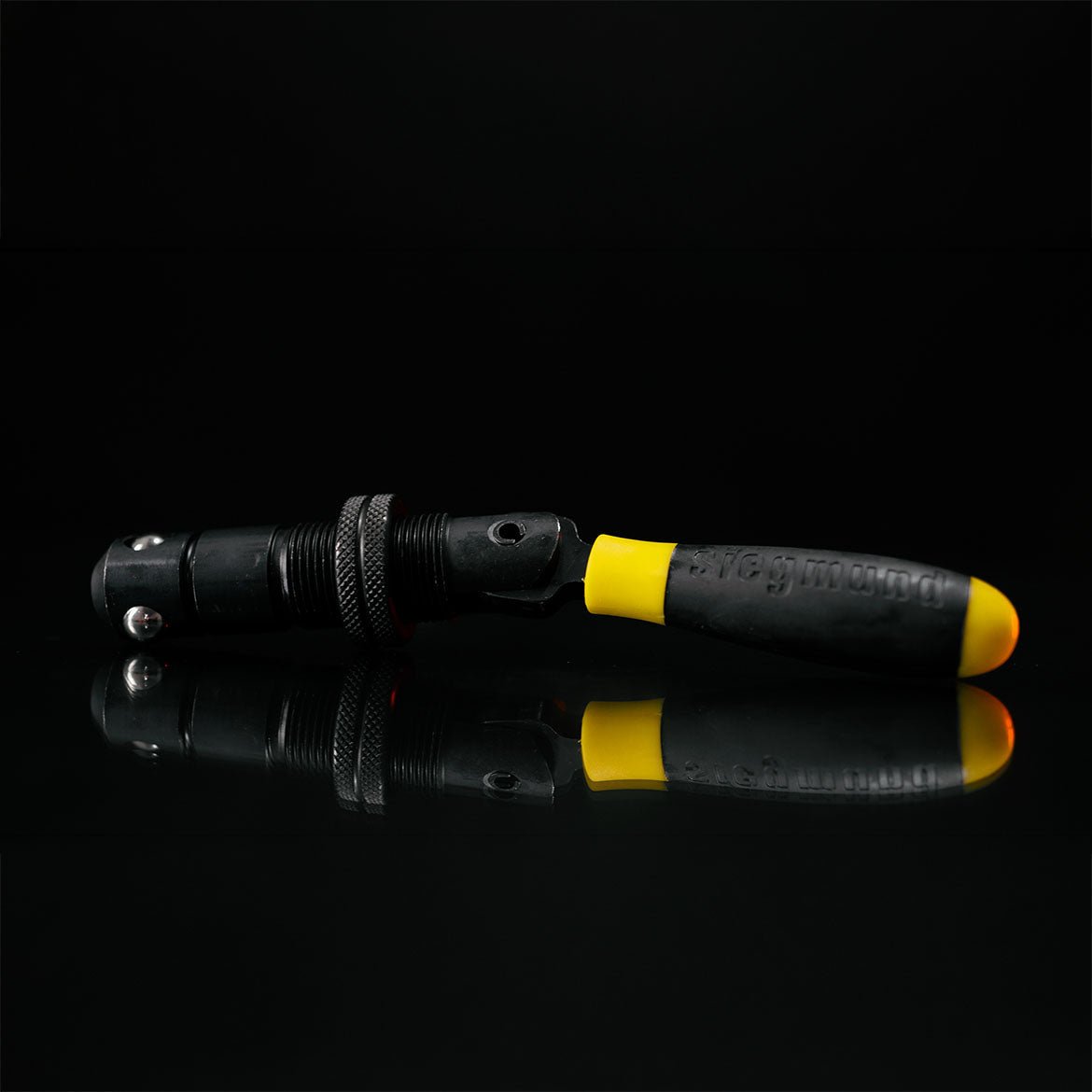

US280516: Fast Clamping Bolt with Handle (Burnished)
">
US280516: Fast Clamping Bolt with Handle (Burnished) - 28mm Imperial Series Welding Table Accessories by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World
US280516: Fast Clamping Bolt with Handle (Burnished) - 28mm Imperial Series Welding Table Accessories by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World
US280516: Fast Clamping Bolt with Handle (Burnished) - 28mm Imperial Series Welding Table Accessories by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World
US280516: Fast Clamping Bolt with Handle (Burnished) - 28mm Imperial Series Welding Table Accessories by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World
US280516: Fast Clamping Bolt with Handle (Burnished)

US280516: Fast Clamping Bolt with Handle (Burnished)

Manufacturer: Siegmund
Part No. (SKU): US280516
Current Availability in the USA: 282 In Stock
Series: 28mm Imperial Series Welding Table Accessories
$92
$130
$92
Subtotal: $92

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

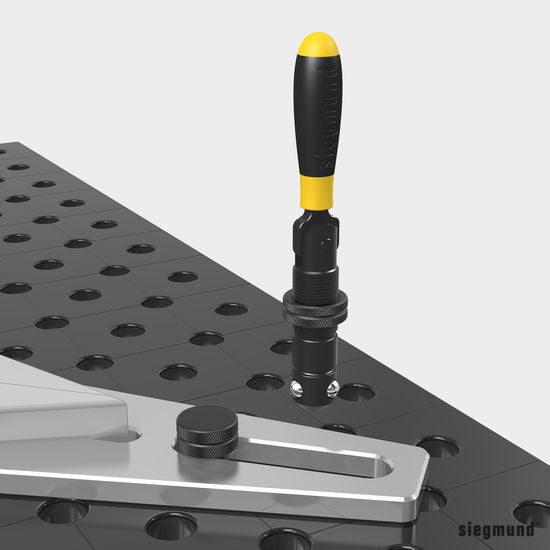

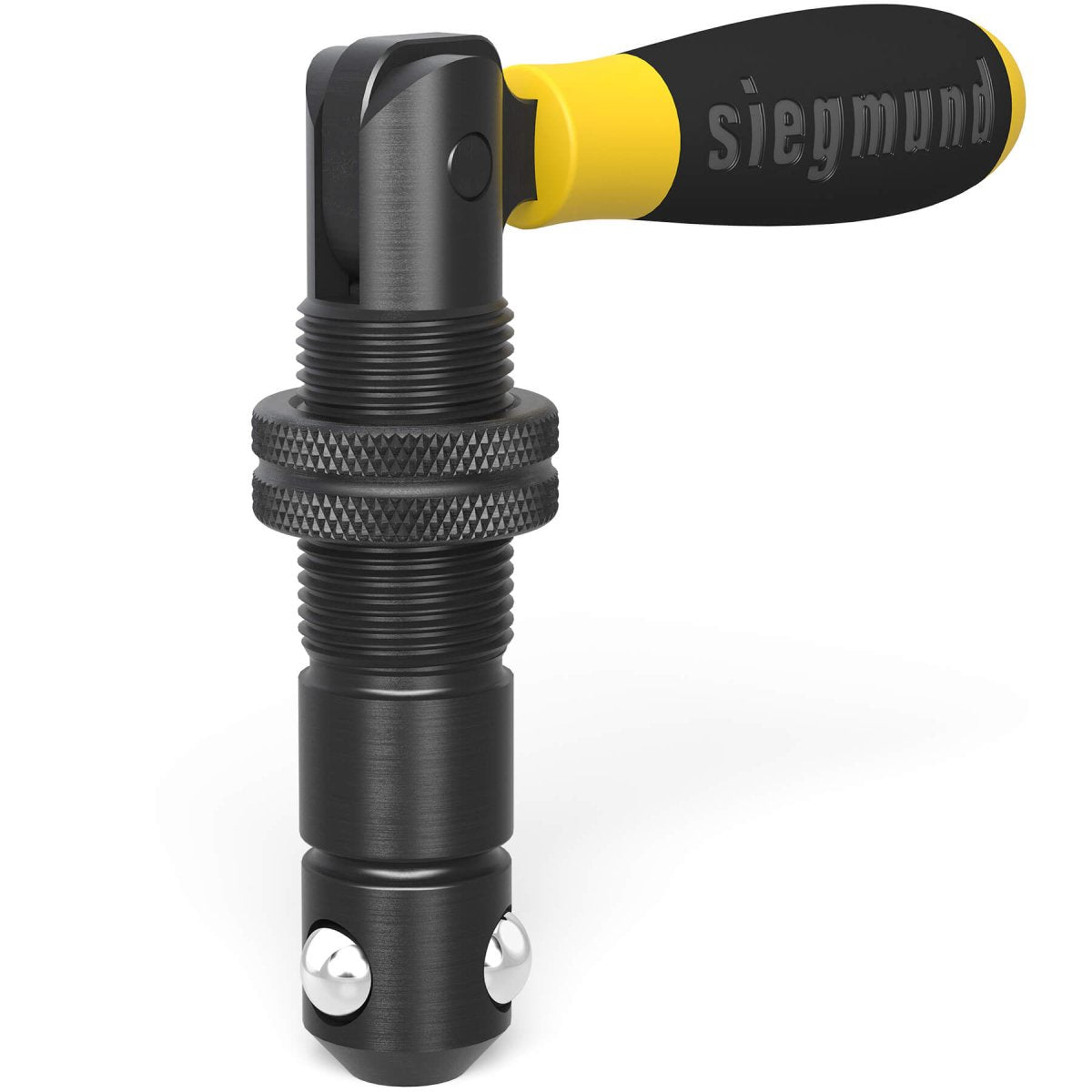

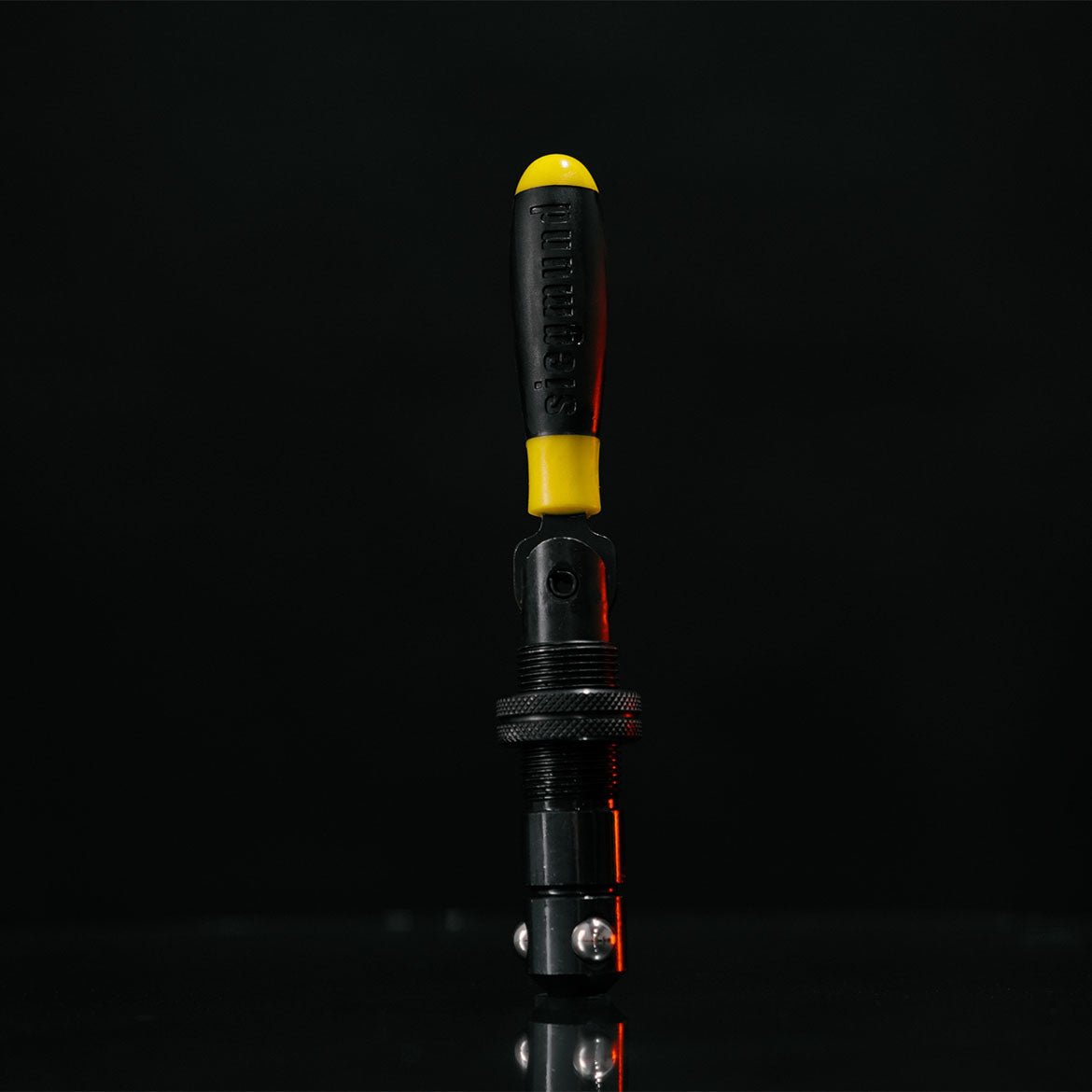

The System 28 Fast Clamping Bolt With Handle Enables Fast, Powerful, and Effortless Clamping.

With the New Fast Clamping Bolt with Handle you can Clamp Components Quickly and Easily Without any Additional Tools. It is Especially Suitable for Clamping Different Material Thicknesses.

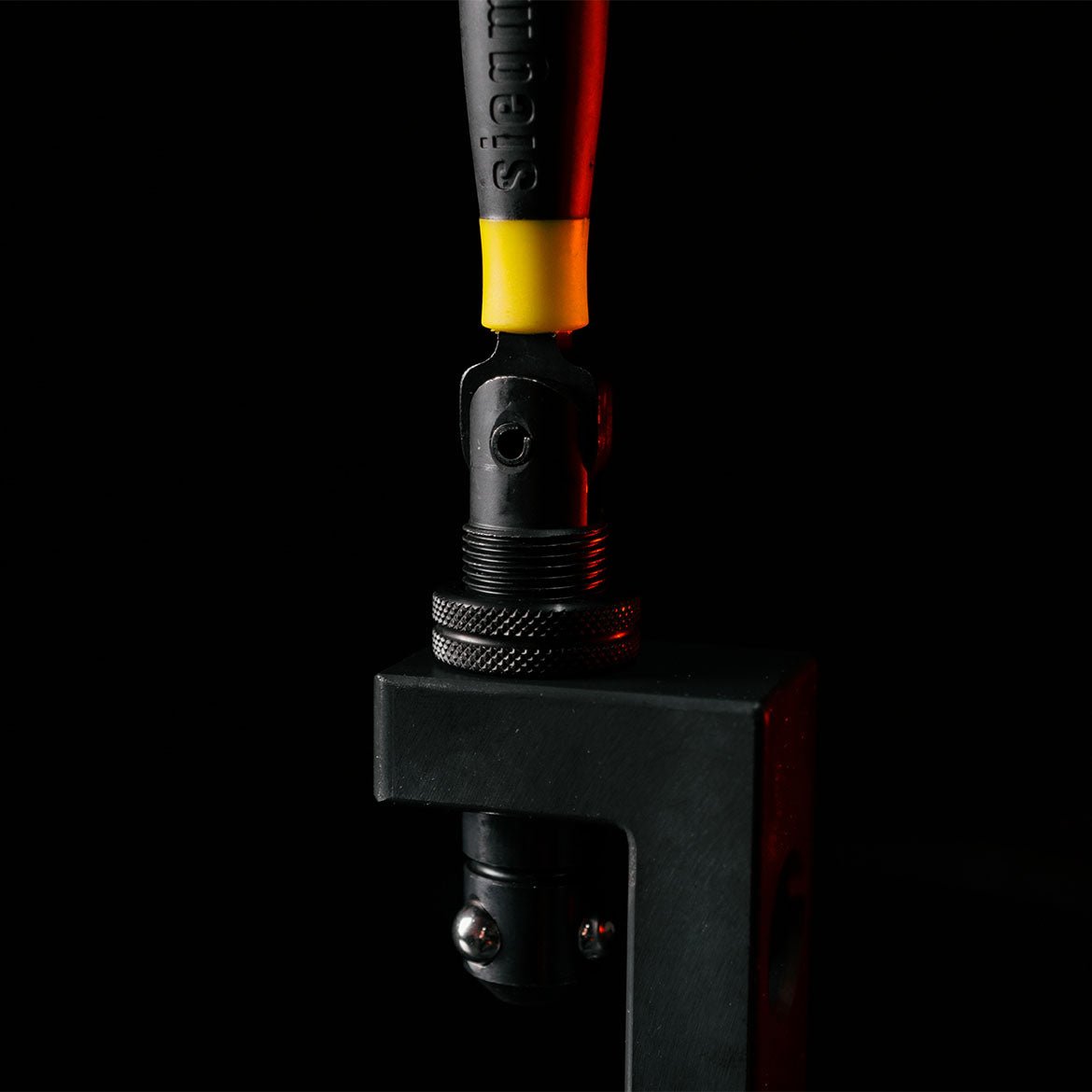

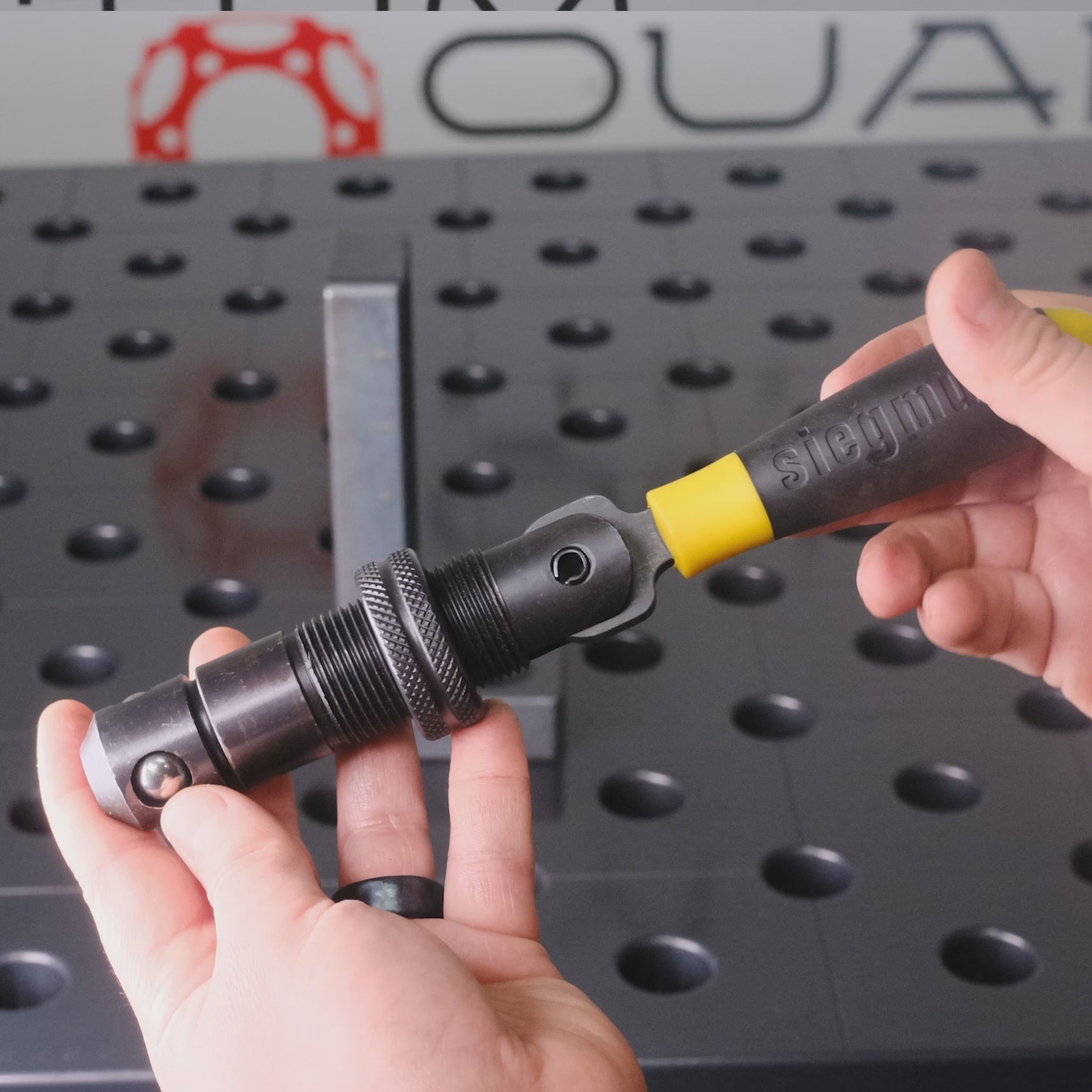

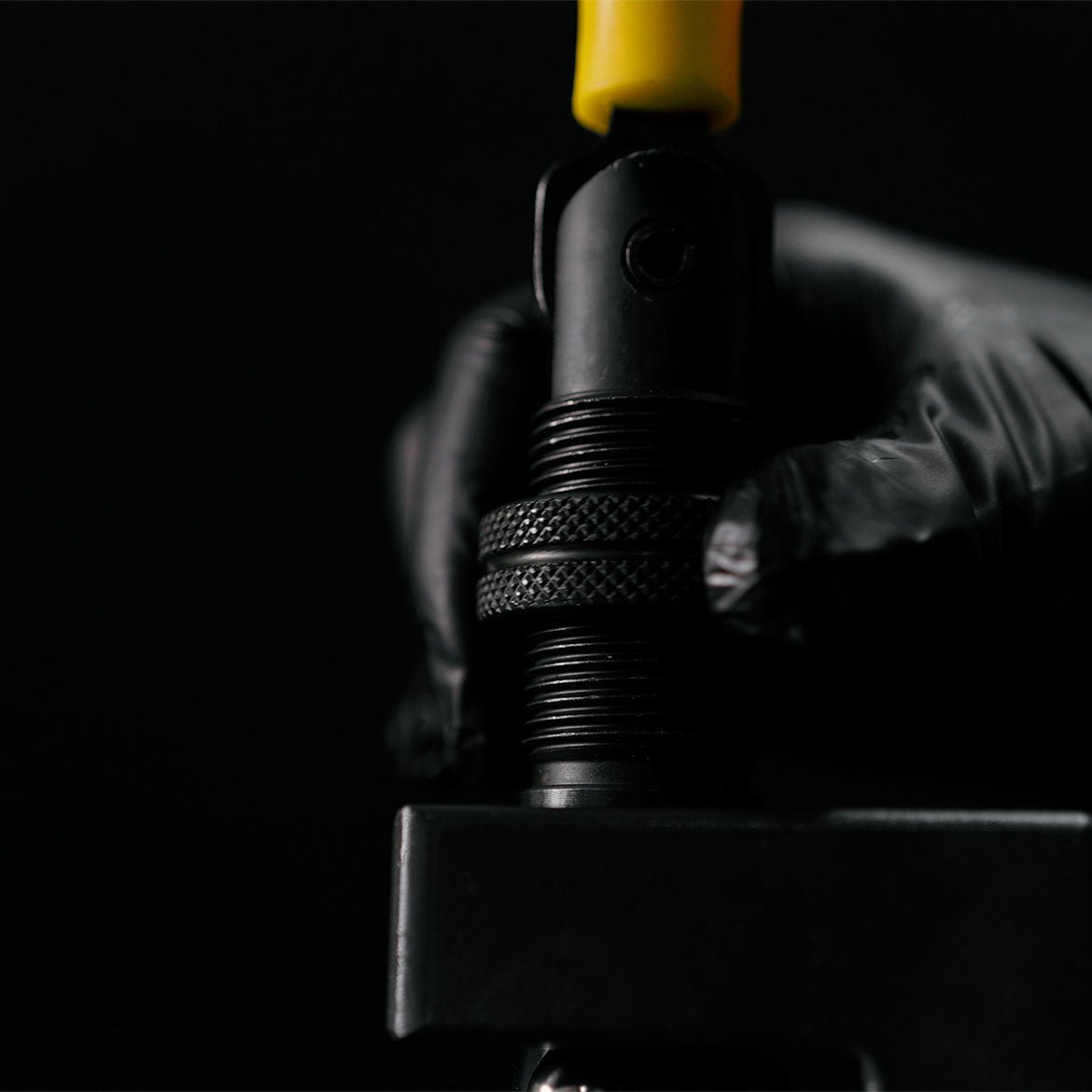

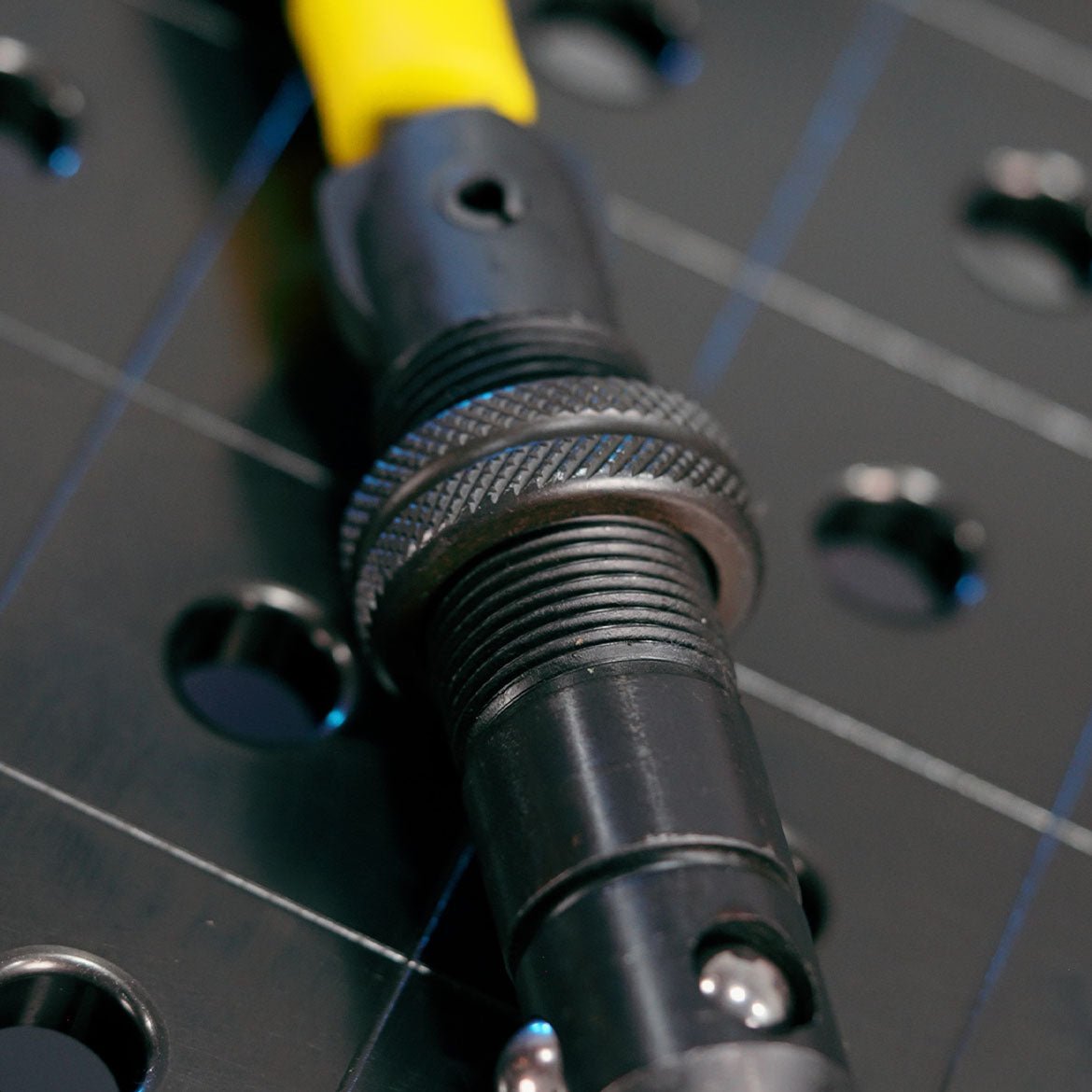

NEW THIMBLE DESIGN

  • With the New Thimble the Height can be Adjusted Within Seconds.
  • The Grip Design Allows the Adjusted Height to be Locked in Place.

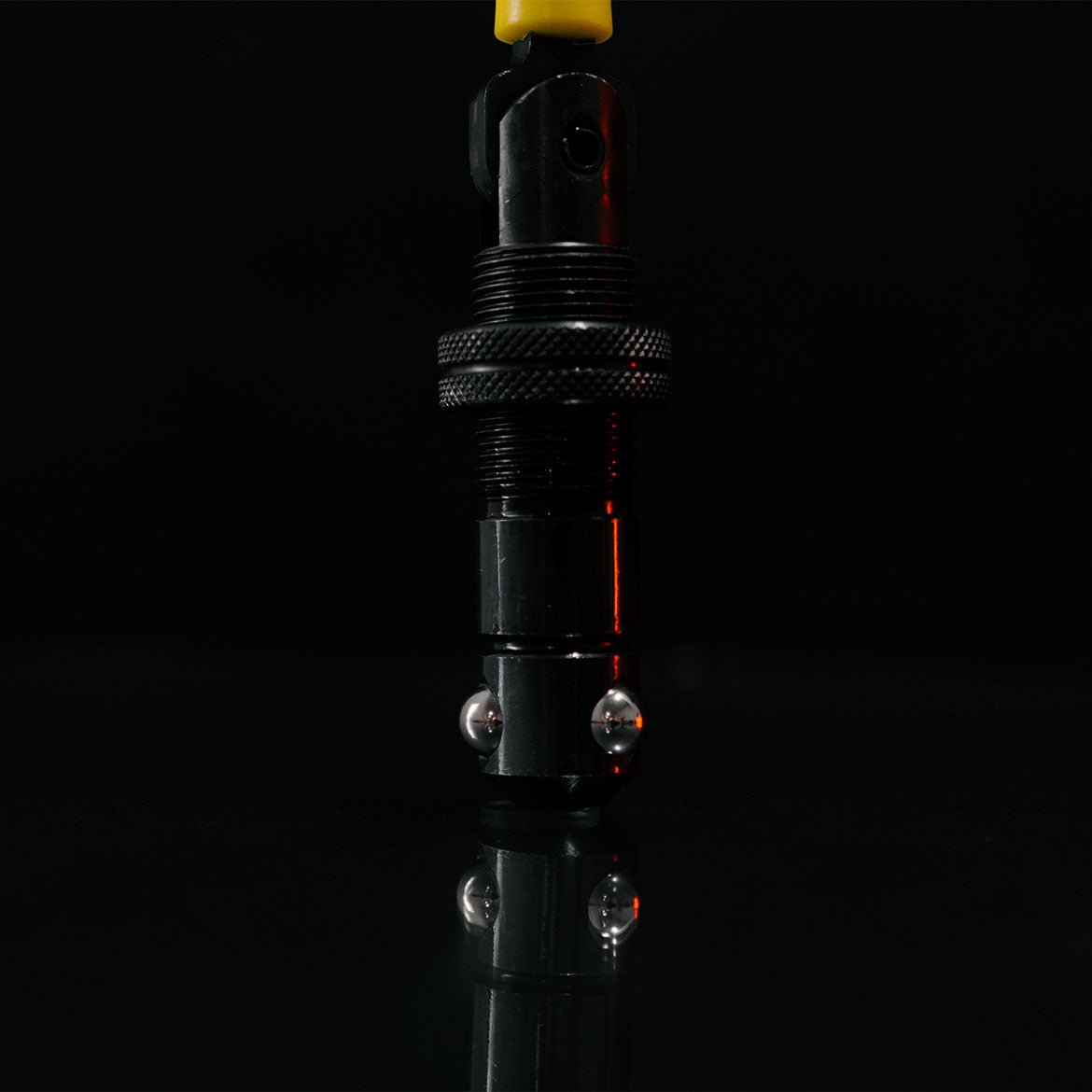

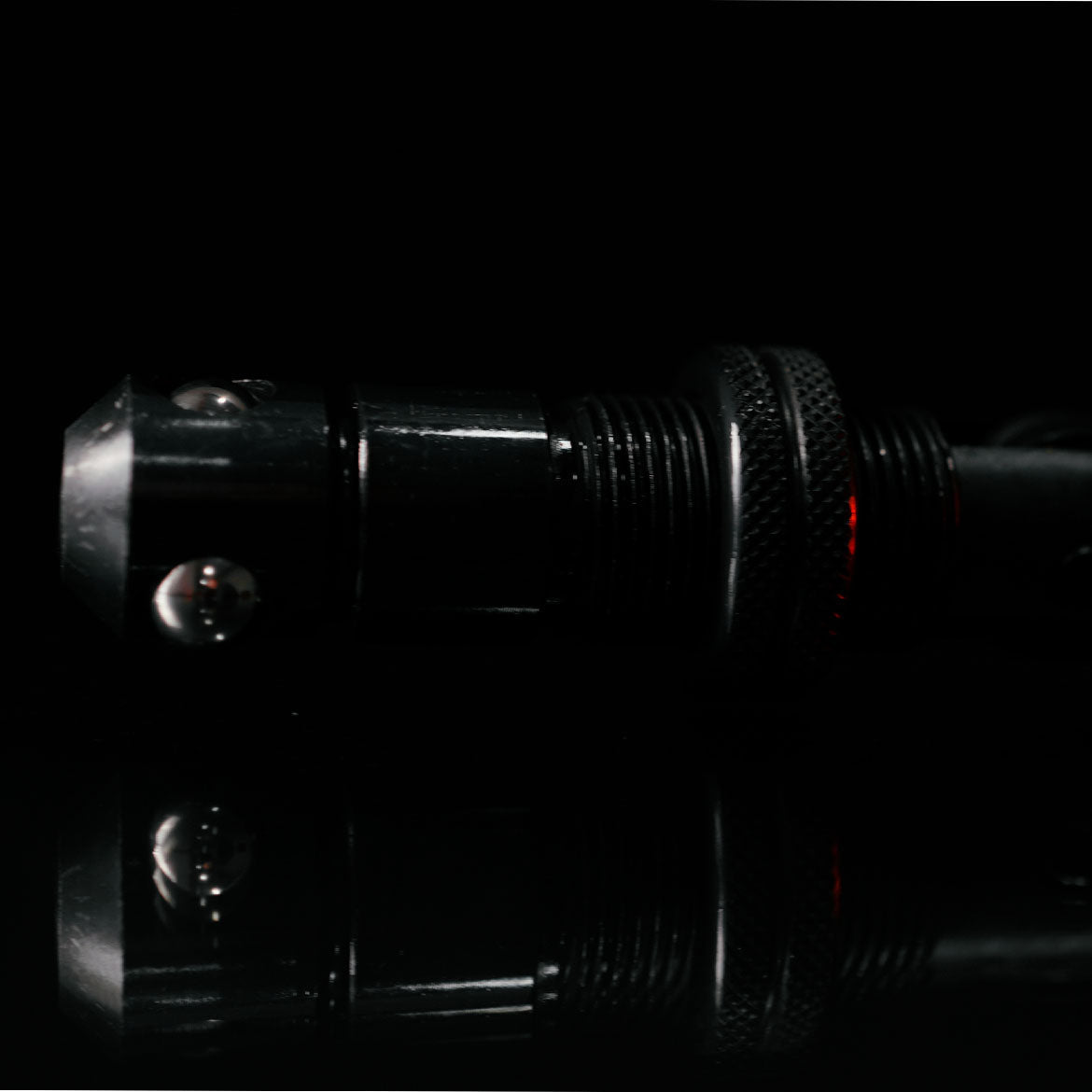

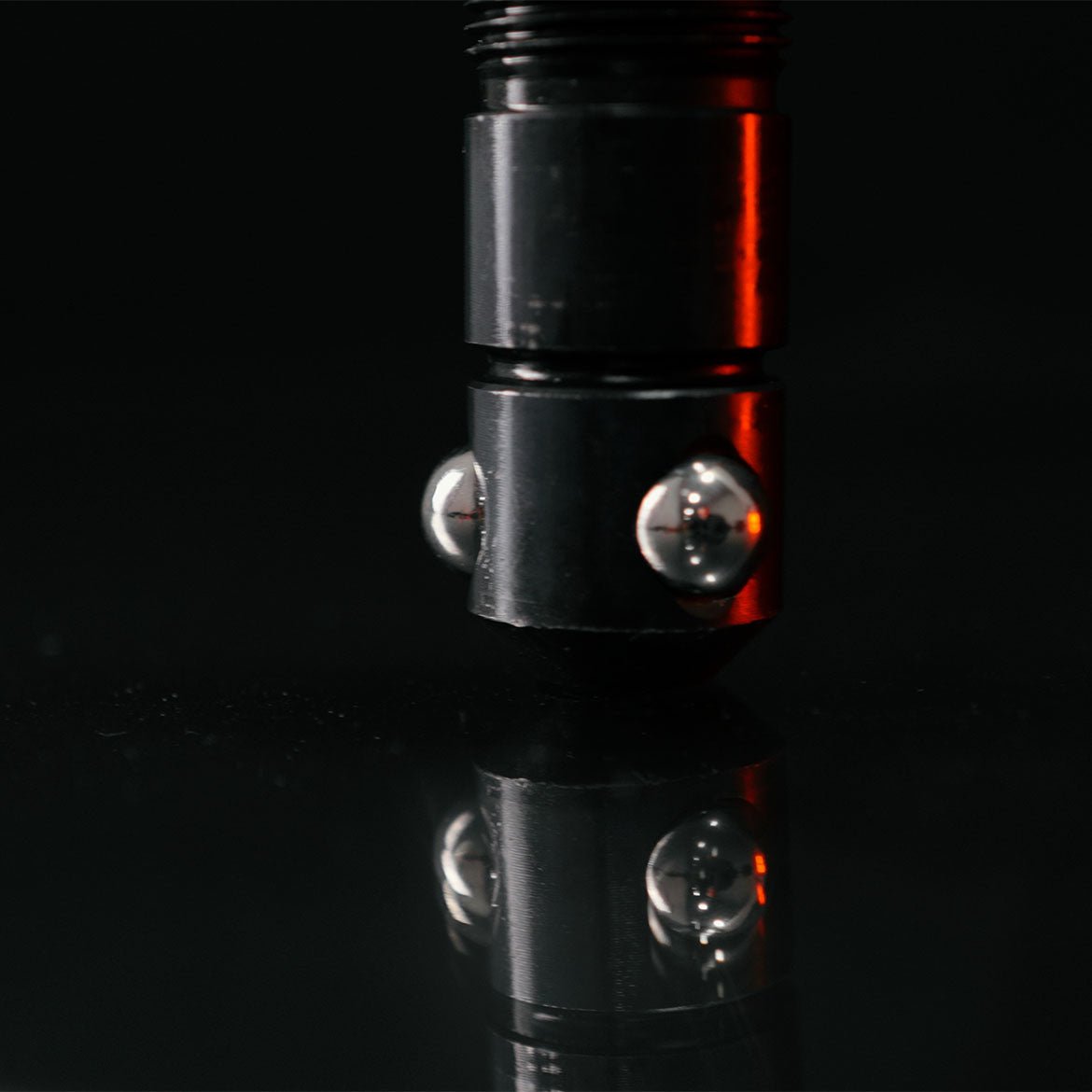

EASY-TO-USE BALL BEARINGS

  • It Features Especially Large Balls, which Protect the Bevel of the Bore Holes.
  • The Fourth Ball Located in the Center, Reduces Internal Friction and Strengthens the Power of the Handwheel.
  • Specifically Made for System 28 Bore Holes, both Welding Tables and Stops.

SECURE CONNECTIONS

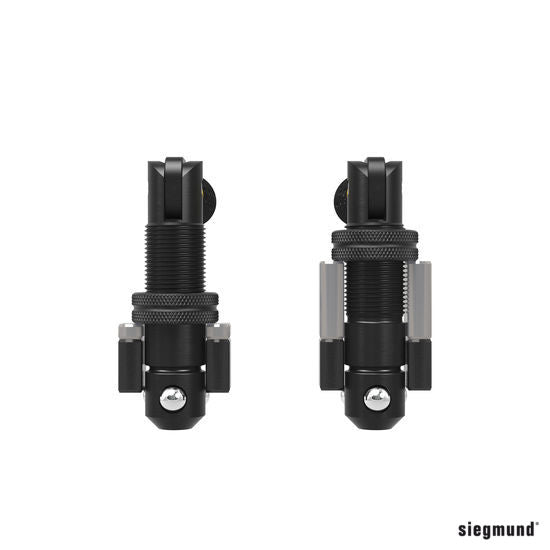

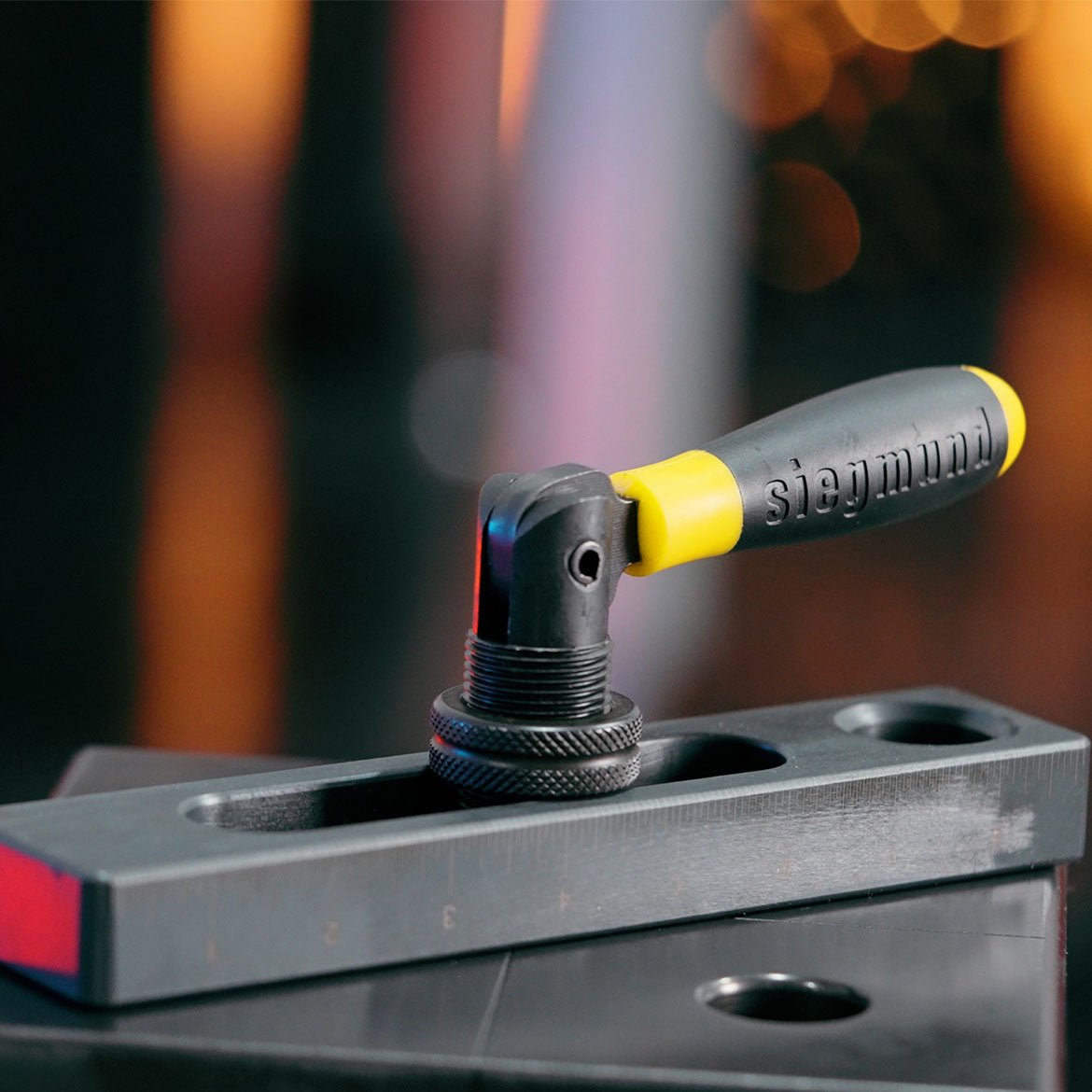

  • Laser Cut Profiles of Varying Thickness can Easily be Clamped.
  • For Clamping up to 2 Siegmund Components.
  • This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!

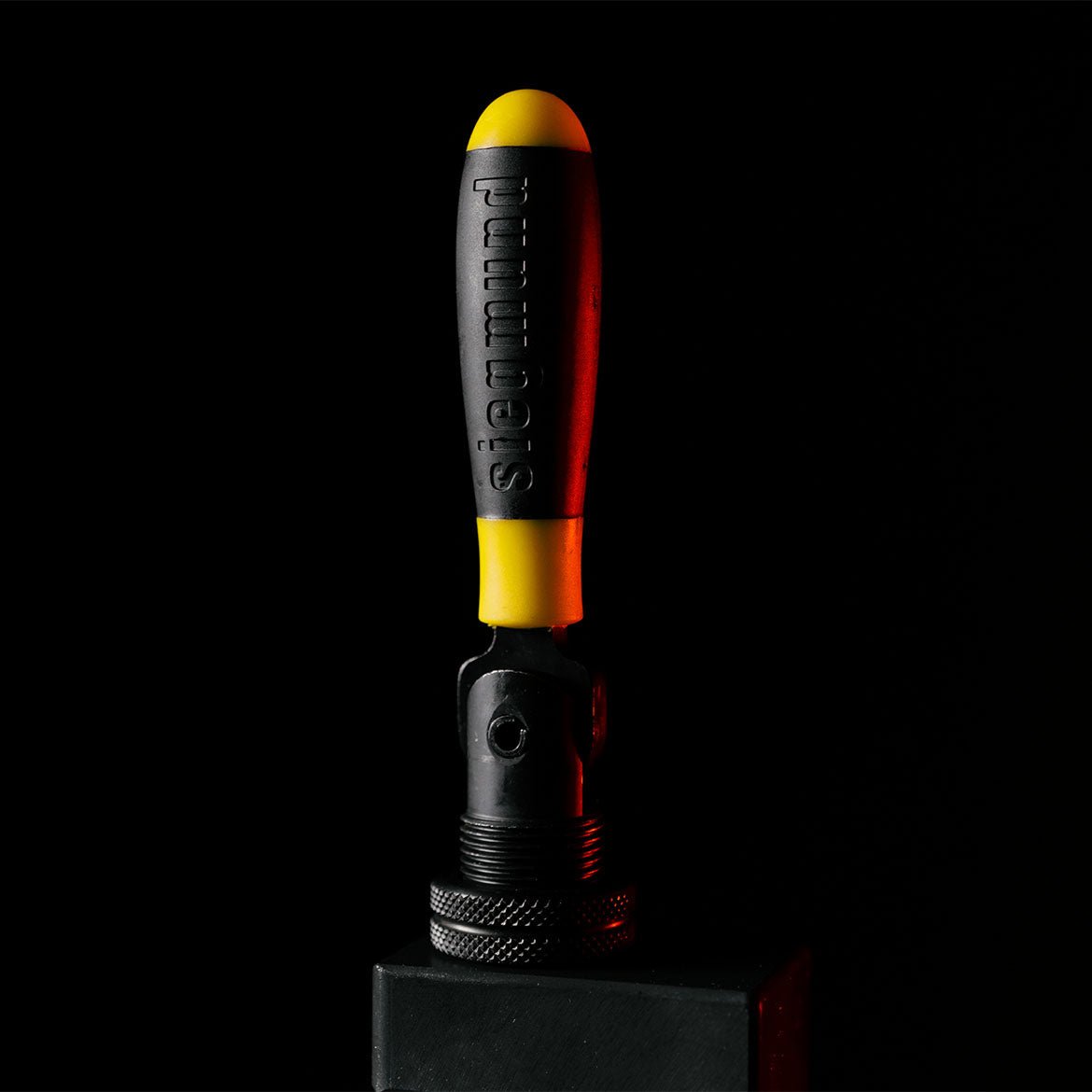

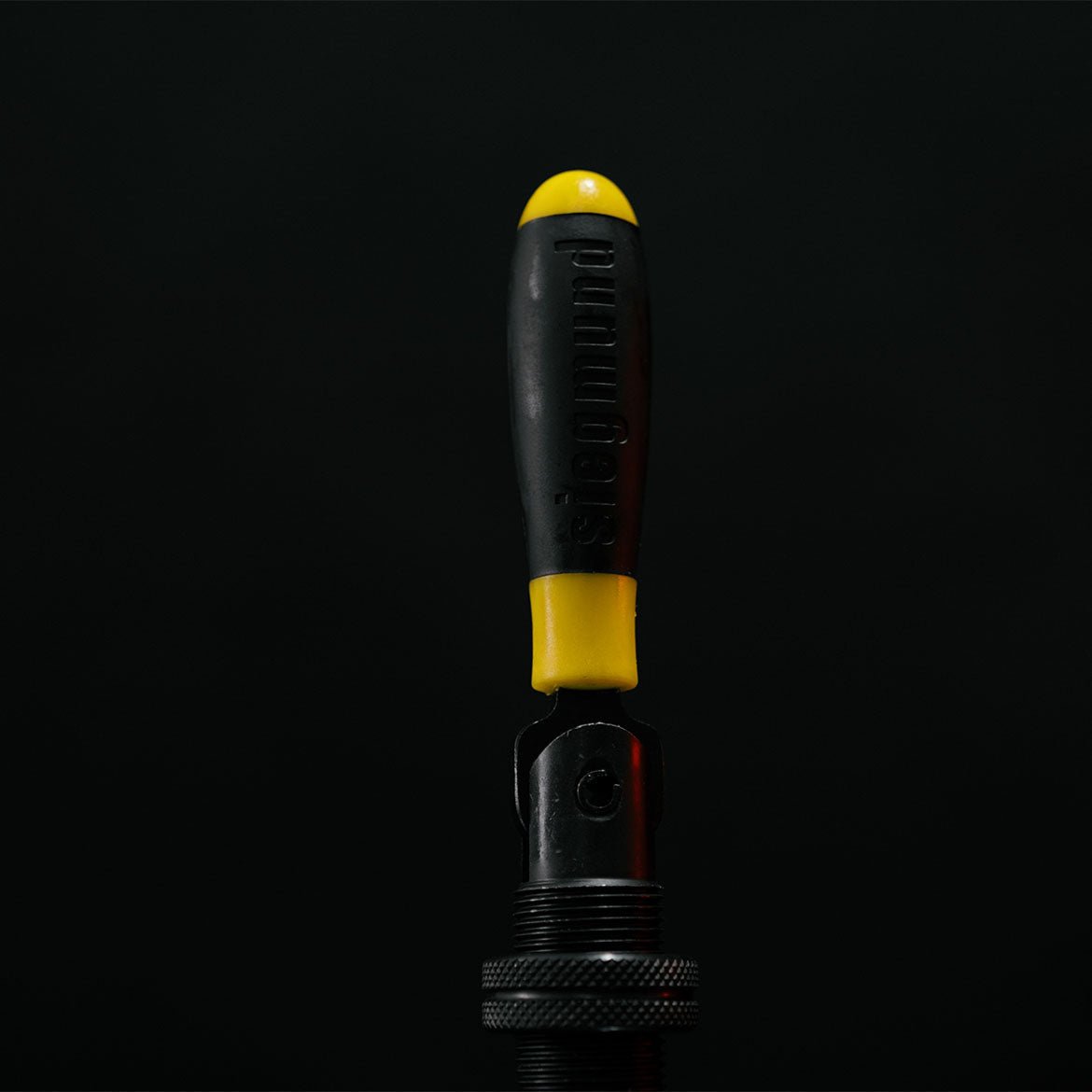

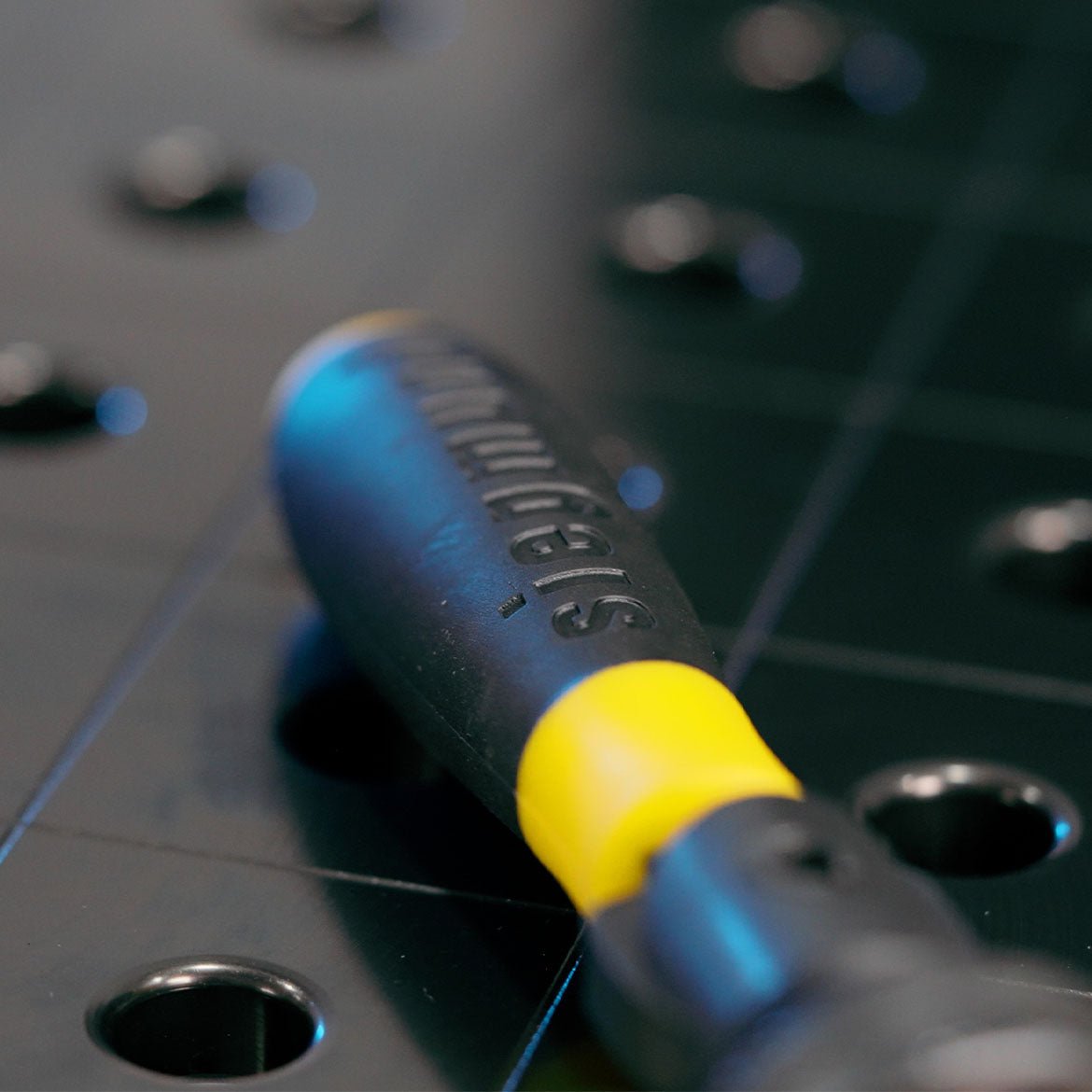

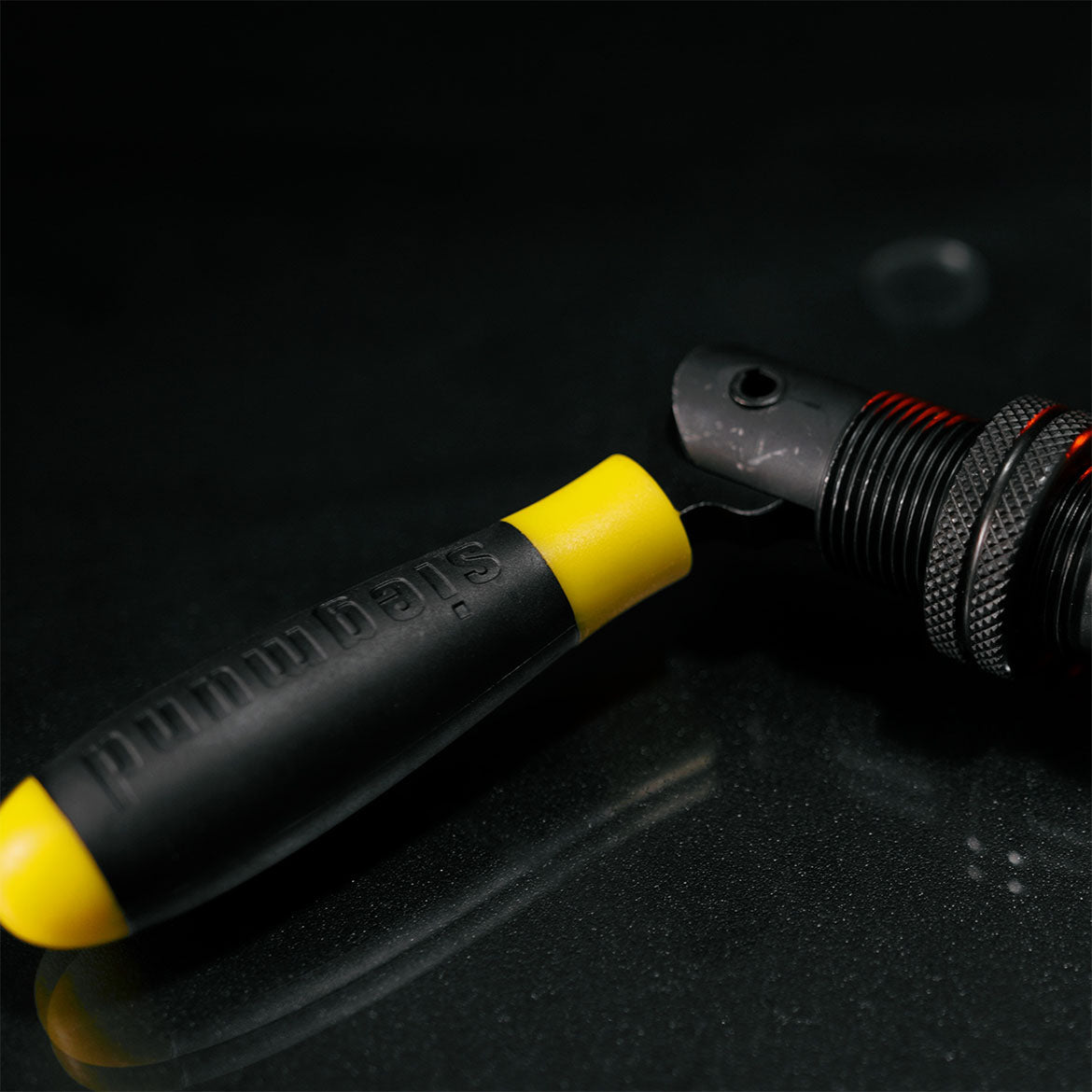

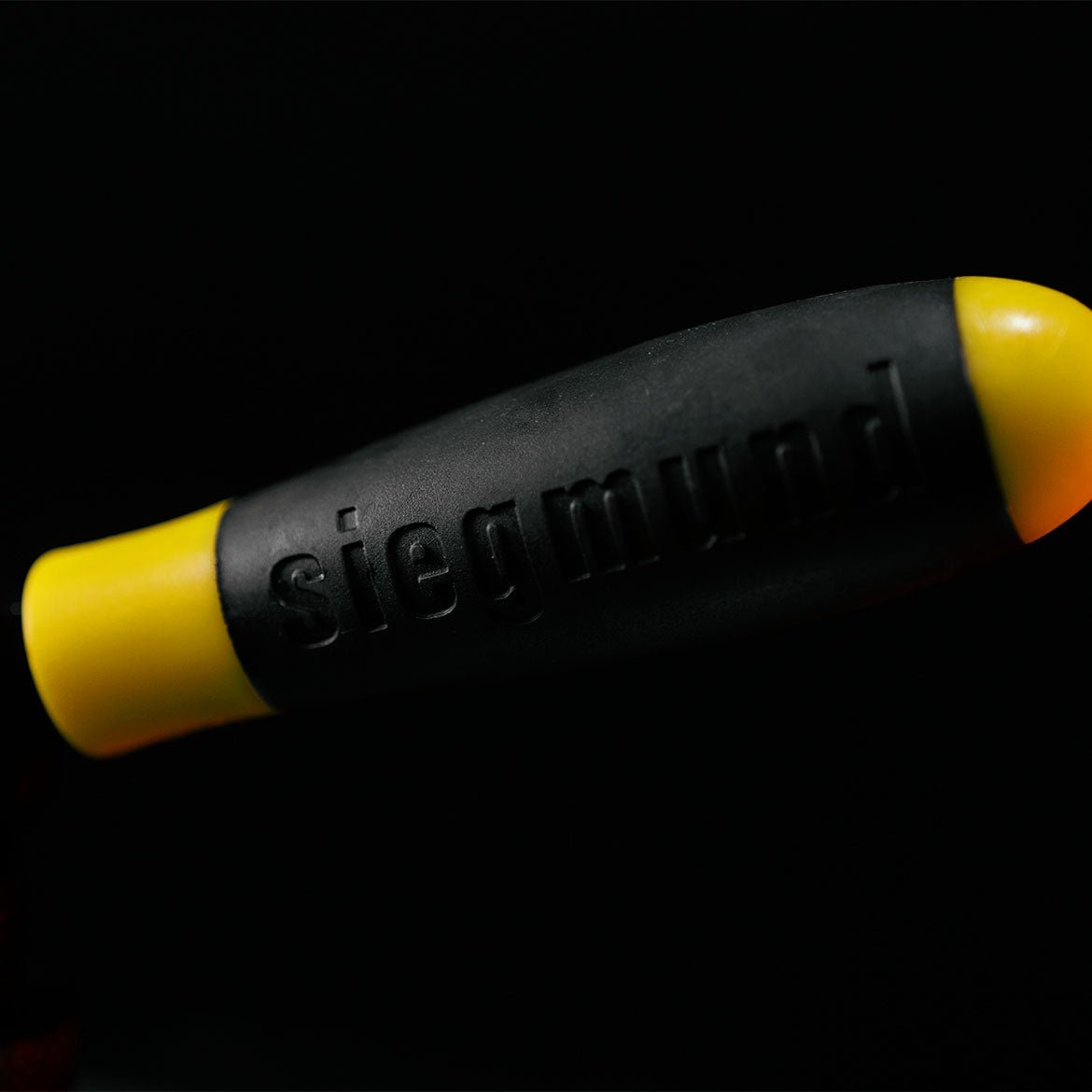

EFFORTLESS HANDLE

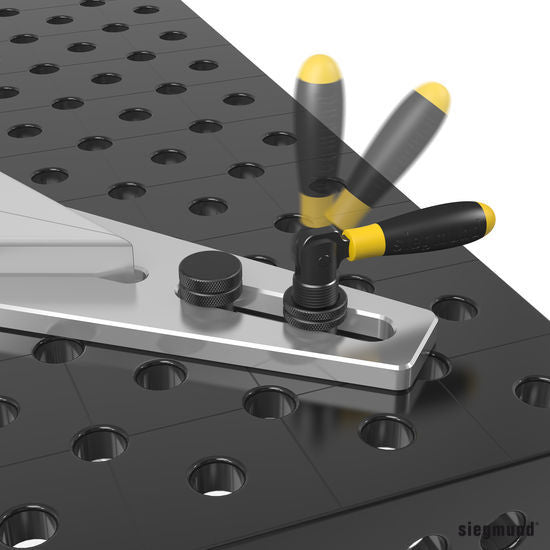

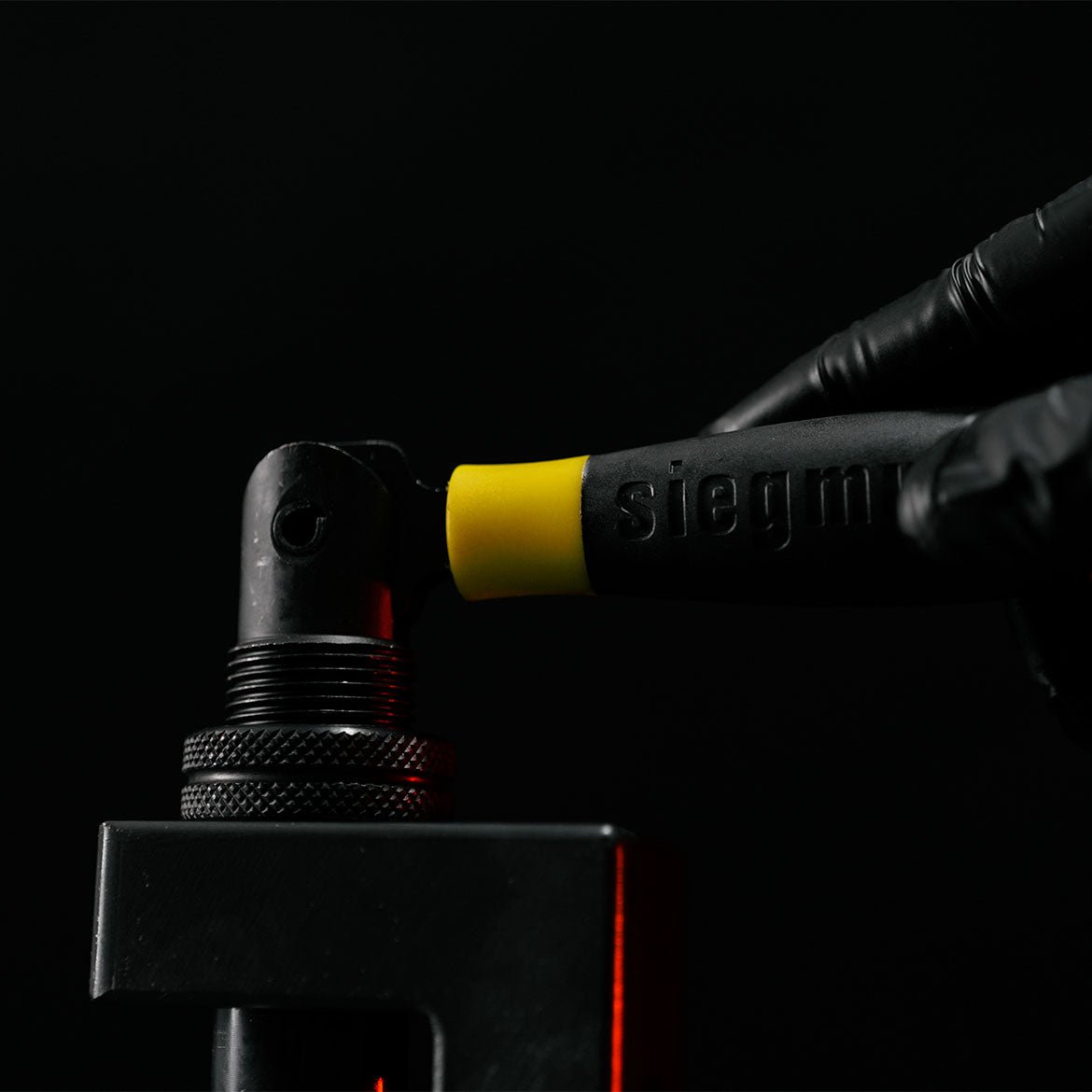

  • Due to its Well-Engineered Mechanism it can be Fixed and Released by Hand within Seconds.
  • The Position of the Handle is Adjustable Between 1.3" and 2.4"

Specs and Features
of the System 28 Imperial Series
 Fast Clamping Bolt With Handle
Item No. US280516

Specs and Features
of the System 28 Imperial Series
 Fast Clamping Bolt With Handle
Item No. US280516

Length: 9-1/14"

Clamping Range: 1-5/16" to 2-3/8"

Weight: 1.4 lbs.

Diameter: 1-1/10"

Finish: Burnished

Tensile Force: 5,600 lbs.f.

Shearing Force: 49,400 lbs.f
