US160511: Short Fast Clamping Bolt (Burnished)
- Product SKU: US160511
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US160511: Short Fast Clamping Bolt (Burnished) for the Siegmund System 16 Imperial Series (INCH) Welding Tables

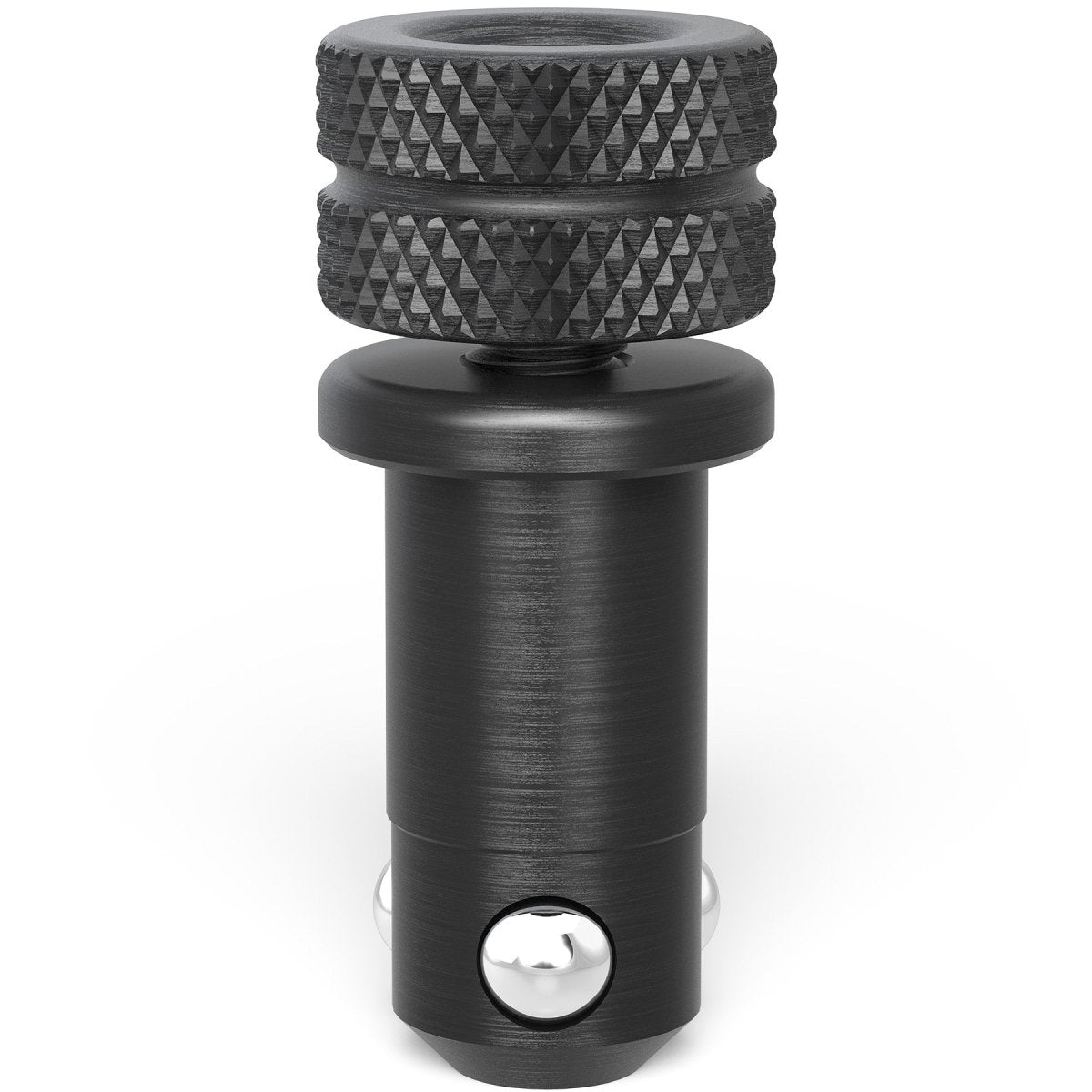

Burnished Fast Clamping Bolt with twist-lock, perfect connecting element between Siegmund components. It features especially large balls, which protect the bevel of the bore holes as a result of low surface pressure. The fourth ball located in the center, reduces internal friction and strengthens the power of the handwheel. The new design of the bolt is not equipped with O-rings, but it still is easy to clean.
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!

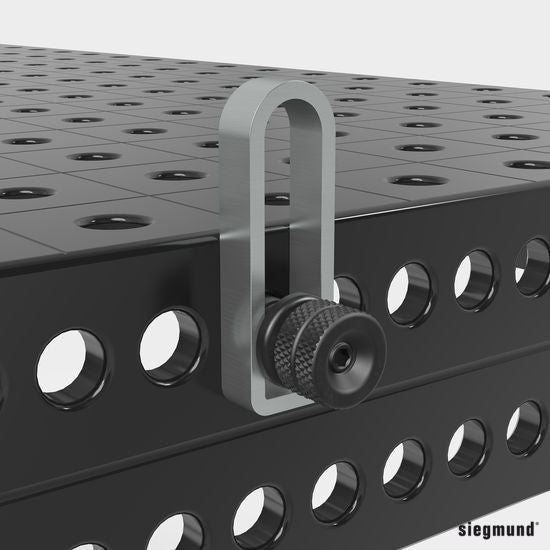

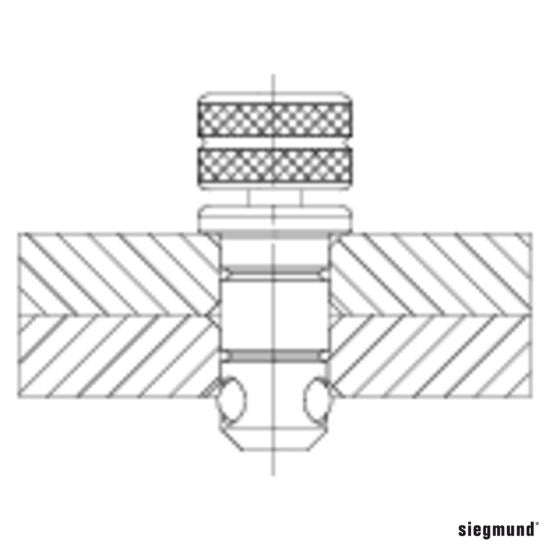

- For Clamping 2 Siegmund Components
- Material Type: Burnished
- With Screw Top
- Length: 2.08"
- Shearing Force: 55 kN
- Tensile Force: 10 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Diameter: 16mm (5/8")
- Weight: 0.17 lbs.
