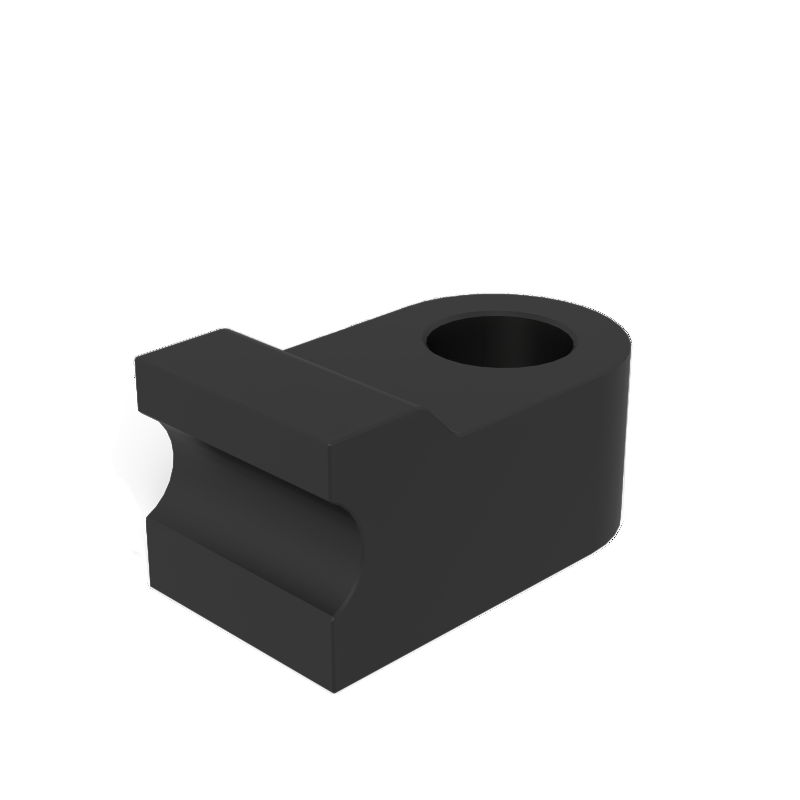

The Siegmund Counter Block for Ø26.9mm pipes provides a solid and accurate support surface for bending and straightening applications. Constructed from POM-C polymer, it combines strength and stability with a smooth finish that preserves pipe surfaces. Designed for use with standard Siegmund bolts and plug sockets, this counter block enhances forming precision across all Siegmund System 16, 22, and 28 tables.
- Provides reliable counter support for pipe forming and alignment.
- Machined from POM-C for excellent wear resistance and surface protection.
- Lightweight 0.77 lbs. (0.35 kg.) body ensures easy repositioning.
- Fastens securely with Siegmund bolt types 160515, 220515, or 280513 (not included).
- Requires a plug socket for stable installation on Siegmund tables.
- Fully compatible with Siegmund System 16, 22, and 28 Metric Series setups.
Key Features
- Ensures stable, precise resistance during bending and straightening.
- Non-marking polymer construction maintains pipe finish quality.
- Lightweight yet rigid for consistent performance in fabrication.
- Compatible with all Siegmund System 16, 22, and 28 Metric Series tables.
- Easy installation using standard Siegmund bolt and plug socket accessories.
Specifications
- Item No.: 2-000705.4
- System: Siegmund System 16 / 22 / 28 Metric Series
- Length: 60mm (2.36" Inches)
- Width: 111mm (4.37" Inches)
- Height: 55mm (2.17" Inches)
- Weight: 0.77 lbs. (0.35 kg.)
- Material: POM-C (Polyoxymethylene)
Common Uses
Used as a counter block for bending and straightening Ø26.9mm (1.06" Inches) pipes, this component provides reliable resistance for forming operations. It ensures proper alignment and surface protection during bending, delivering uniform results for stainless steel, aluminum, or coated pipe applications. Ideal for fabrication, prototype development, and shop repair setups requiring consistent accuracy.
