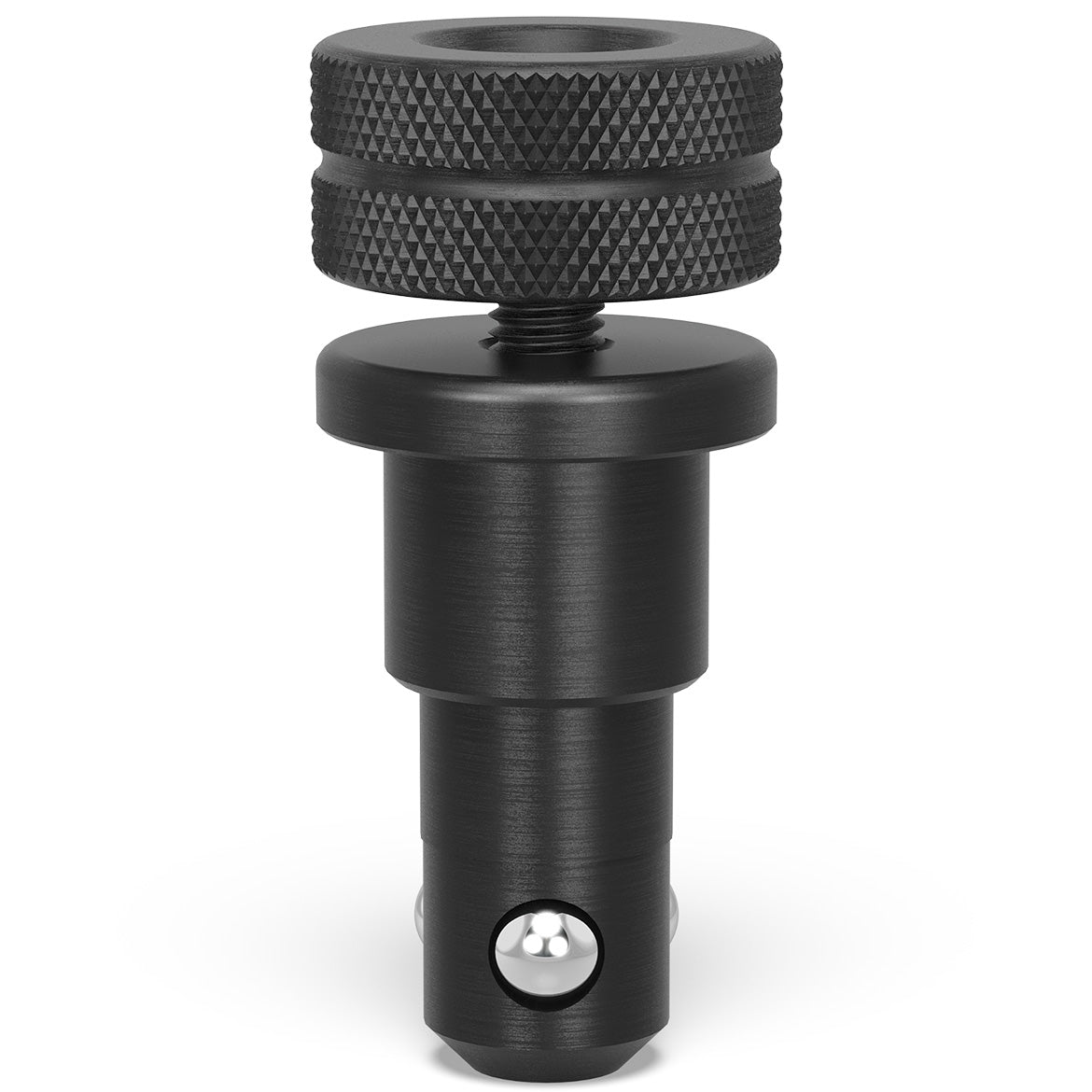

2-002822: 28 -> 22 Short Combination Fast Clamping Bolt (Burnished)

2-002822: 28 -> 22 Short Combination Fast Clamping Bolt (Burnished)

  • Product SKU: 2-002822
Availability: In Stock
$82 $102
Successful pre-order.Thanks for contacting us!

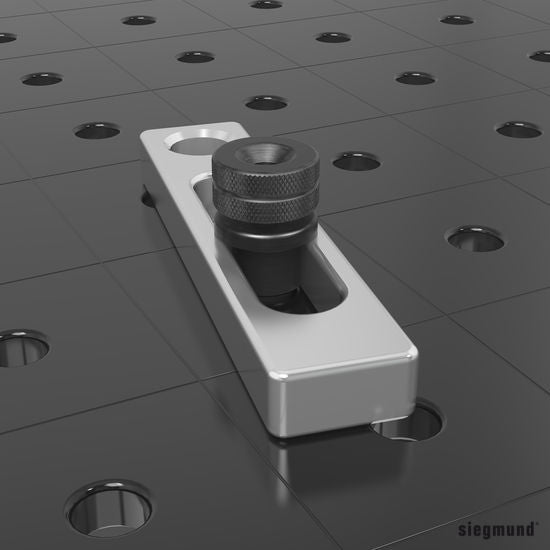

The Siegmund System 28 to System 22 Short Combination Fast Clamping Bolt, developed specifically to bolt components of bigger systems to smaller systems. The ball size and clamping force correspond with fast clamping bolts. The fourth ball located in the center reduces internal friction and increases the force of the handwheel. The new design of the Fast Clamping Bolt dispenses with the O-rings, however it is still easy to clean.

Note: This bolt CANNOT be used for connecting tables and U-shaped squares!

Specs and Features:
- Item No. 2-002822
- Burnished
- Length: 88mm (3.46'')
- Diameter Ø: 40mm (1.57'')
- Shearing Force: 130kN
- Tightening Torque Steel: 15Nm
- Tensile Force: 14kN
- Weight: 1 Ibs.
