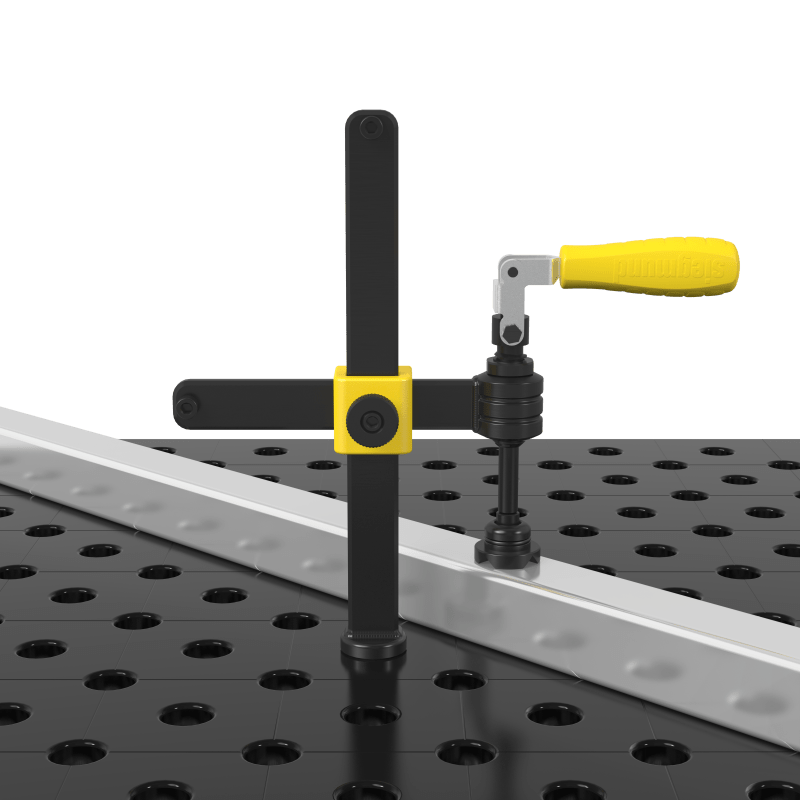

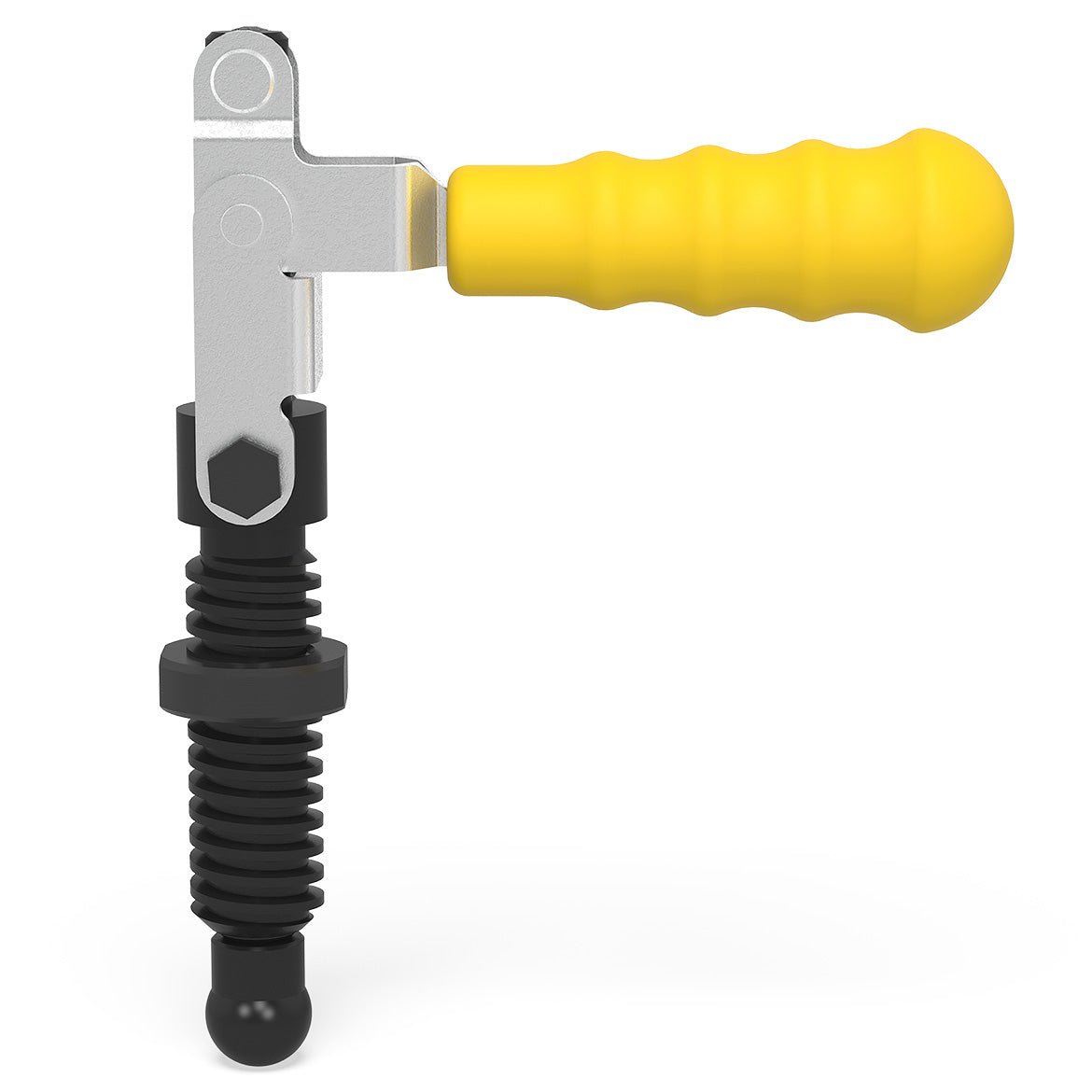

The Siegmund Vertical Toggle Clamp provides secure, fast, and repeatable clamping for vertical applications in Siegmund System 28 setups. Compact yet powerful, it ensures precise positioning while maintaining durability for daily shop use.
- Provides 85mm (3.35" Inches) clamping height for efficient part holding.
- Lightweight at 1.94 lbs. (0.88 kg.), easy to handle and reposition.
- Compatible with screw clamps 2-280611.1 and 2-280611.2.
- Usable in boreholes with thread bushing 2-280618.N for added versatility.
- Equipped with trapezoid spindle thread 20x4mm for reliable clamping action.
Key Features:
- Compact size delivers precise vertical clamping in tight spaces.
- Durable design ensures consistent performance under shop conditions.
- Compatible with System 28 boreholes and accessories.
- Quick to set up, reposition, and release.
Specifications:
- Item No.: 2-009902.1
- System: Siegmund System 28 Metric Series
- Height: 85mm (3.35" Inches)
- Weight: 1.94 lbs. (0.88 kg.)
- Spindle: Trapezoid Thread 20x4mm
- Spindle Ball Diameter: 16mm (0.63" Inches)
Common Uses:

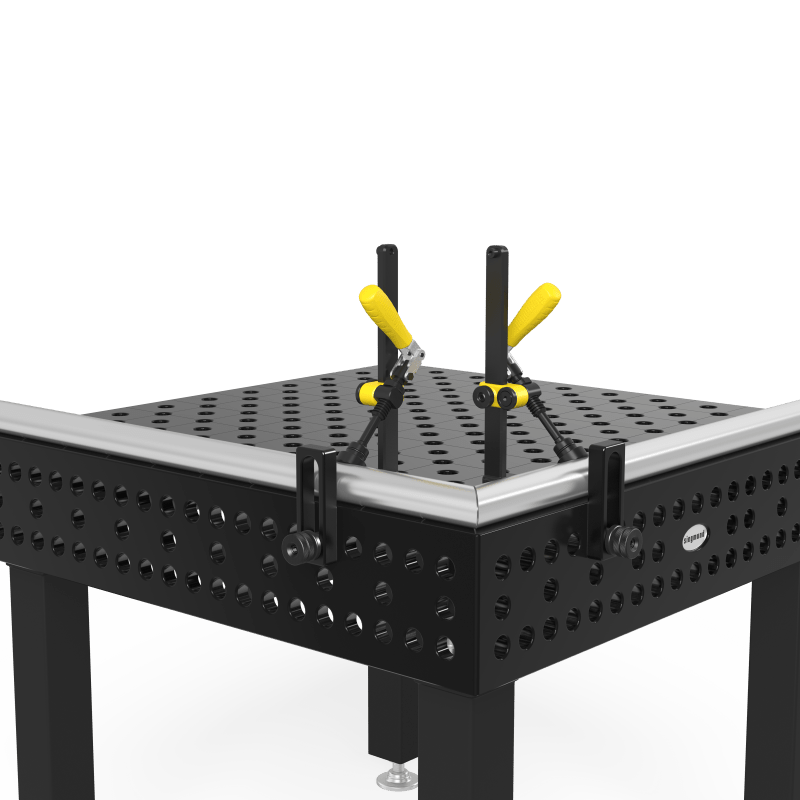

The Vertical Toggle Clamp provides reliable vertical clamping for System 28 welding setups. Its compact size makes it ideal for securing smaller components or working in tight spaces, while its compatibility with screw clamps and threaded bushings ensures versatile shop integration.
