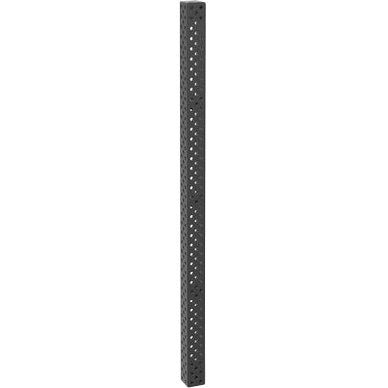

2-160390.P: 2,000x100x100mm Riser Block (Plasma Nitrided)
- Product SKU: 2-160390.P
- Category: System 16mm Metric Series Welding Tables and Fixturing Accessories
The Siegmund 2,000x100x100mm Riser Black / Square U-Shape 100/100 is ideally suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. The Square is firmly bolted to the table with Connecting Bolts (Item No. 2-160560.N).
From a length of 500mm (19.68") all U-shaped squares have mounting holes on the back to attach table legs.
If the Square is used as a table extension exceeding 1,000mm (39.37"), it has to be supported by a table leg.
A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided bore holes and the optional diagonal hole arrangement.
50x50mm (1.96"x1.96") grid simplifies orientation.
Specs and Features:
- Item No. 2-160390.P
- Plasma Nitrided
- Length: 2,000mm (78.74'')
- Width: 100mm (3.93'')
- Height: 100mm (3.93'')
- Weight: 103.6 Ibs.
