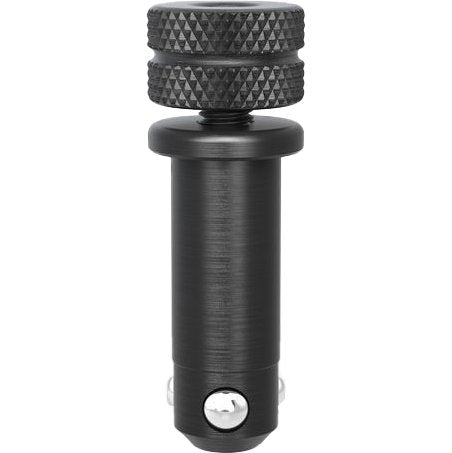

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.
The fast clamping bolt with twist-lock is the ideal connecting element between Siegmund components.
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!
Our recommendation when working with aluminum profiles.
Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
Specs and Features:
- Item No. 2-160513
- For Clamping 3 Siegmund Components
- With Screw Top
- Length: 65 mm (2.26")
- Diameter: 16 mm (.63")
- Shearing Force: 55 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Tensile Force: 10 kN
- Weight: 0.22 lbs.
