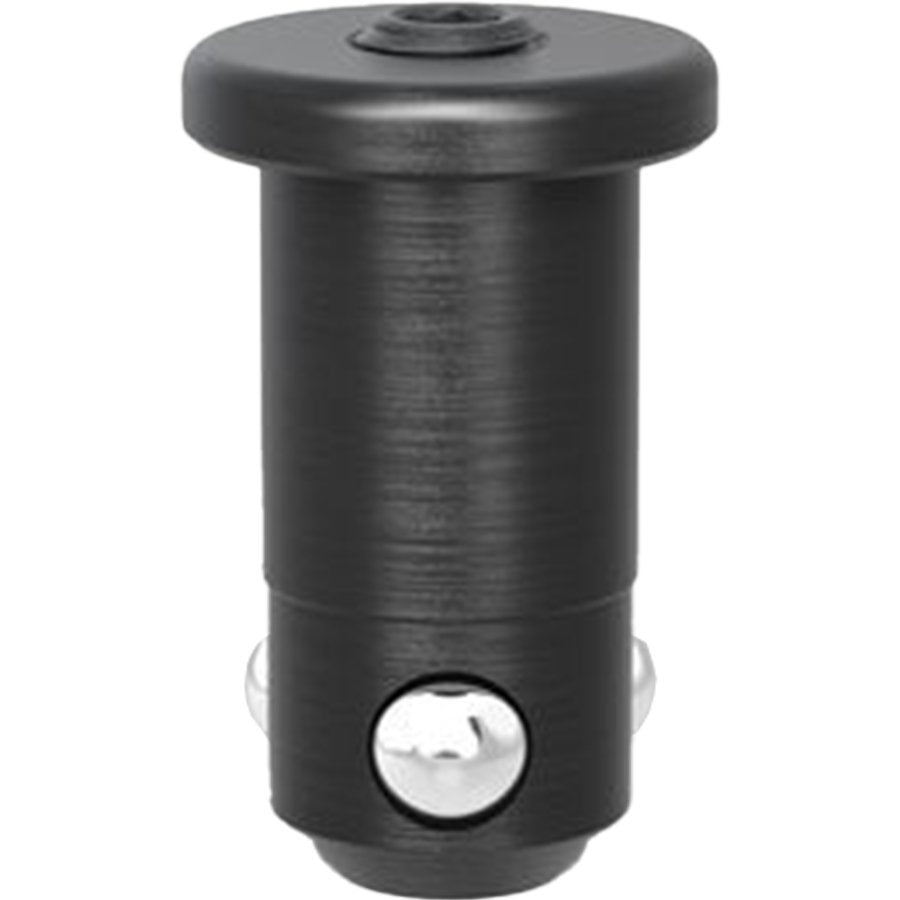

2-160524: Flat Fast Clamping Bolt Without Double Slot (Burnished)

Manufacturer: Siegmund
Part No. (SKU): 2-160524
Current Availability in the USA: 65 In Stock
Series: 16mm Welding Table Accessories
$43
$61
$43
Subtotal: $43

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

The System 16 Flat Fast Clamping Bolt Enables Fast, Powerful, and Effortless Clamping.

The Bolt Without Slots is Particularly Suitable for Clamping the Entire Siegmund Range. The Flat Fast Clamping Bolt is the Ideal Connecting Element Between Siegmund Components.

NEW FLAT TOP DESIGN

  • Due to the Hexagon Socket Insert, Located at the Top of the Bolt, the Force of the Bolt can be Adjusted Precisely by a Torque-Limiting Wrench.
  • The New Design Allows the Bolt to Reduces Protrusion.

EASY-TO-USE BALL BEARINGS

  • It Features Especially Large Balls, which Protect the Bevel of the Bore Holes.
  • The Fourth Ball Located in the Center, Reduces Internal Friction and Strengthens the Power of the Handwheel.
  • Specifically Made for System 16 Bore Holes, both Welding Tables and Stops.

SECURE CONNECTIONS

  • Laser Cut Profiles of Varying Thickness can Easily be Clamped.
  • For Clamping up to 2 Siegmund Components.
  • This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Overall Design Allows Any Piece to be Held in Place Tightly.

Specs and Features
of the System 16
Fast Flat Clamping Bolt
Without Double Slots
Item No. 2-160524

Specs and Features
of the System 16
Fast Flat Clamping Bolt Without Double Slots
Item No. 2-160524

Length: 36mm (1.41")
Diameter: 16mm (5/8")
Weight: 0.13 lbs.
Finish: Burnished
Shearing Force: 55 kN
Tensile Force: 10 kN
Tightening Torque Steel: 10 Nm
Tightening Torque Aluminum: 2.5 Nm
