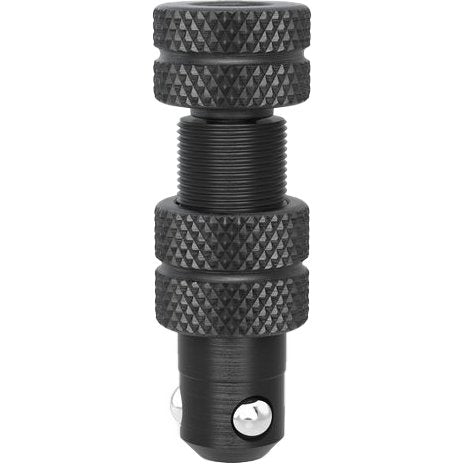

2-160571: Short Adjustable Fast Clamping Bolt without Slot (Burnished)

2-160571: Short Adjustable Fast Clamping Bolt without Slot (Burnished)

Availability: In Stock
$63 $78
Successful pre-order.Thanks for contacting us!

Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.

The clamping height is individually adjusted by a rotating a knurled thimble ring.

Note: This bolt CANNOT be used for connecting tables and U-shaped squares!

Suitable for aluminum profiles.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

Specs and Features:
- Item No. 2-160571
- Burnished
- For Clamping 2 Siegmund Components
- Clamping Dimension is 12-24mm
- With Screw Top
- Length: 78 mm (3")
- Diameter: 16 mm (0.63")
- Shearing Force: 55 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Tensile Force: 10 kN
- Weight: 0.29 lbs.
