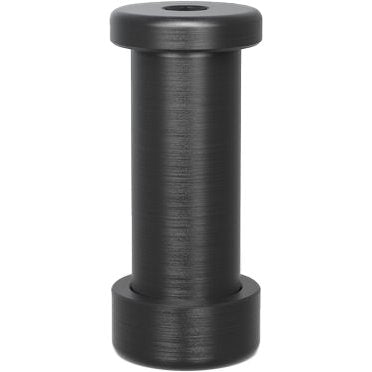

This connecting bolt is also suitable for use in oblong holes.
Especially suitable for aluminum.
Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
Specs and Features:
- Item No. 2-160584
- For Connecting 3 Siegmund Components
- With Hexagon Socket
- Length: 51 mm (2.00")
- Weight: 0.2 lbs.
- Diameter: 16 mm (.63")
- Shearing Force: 55 kN
- Tightening Torque Steel: 15 Nm
- Tightening Torque Aluminum: 15 Nm
- Tensile Force: 3 kN
