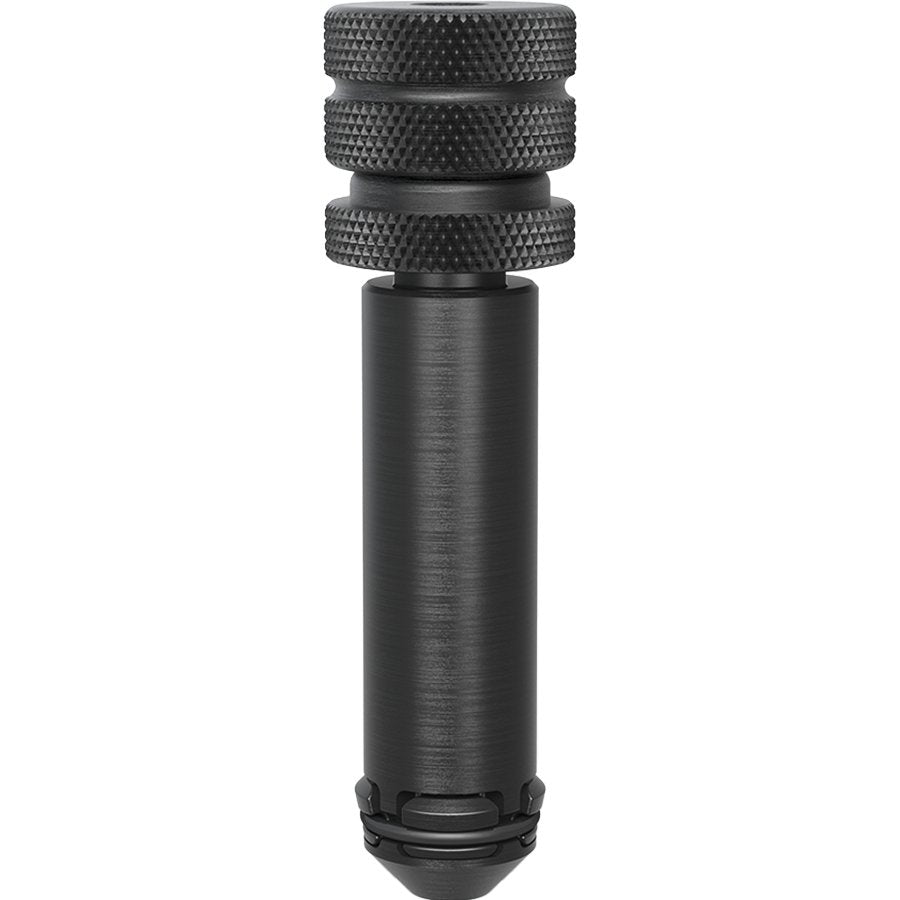

2-160590.4: Quadruple Areal Clamping Bolt (Burnished)

Manufacturer: Siegmund
Part No. (SKU): 2-160590.4
Current Availability in the USA: 66 In Stock
Series: 16mm Welding Table Accessories
$74
$105
$74
Subtotal: $74

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

The System 16 Areal Clamping Bolt Enables Fast, Powerful, and Effortless Clamping.

With the Areal Clamping Bolt from Siegmund You can Clamp Soft Materials such as Simple Aluminum Alloys, Copper Etc. Powerfully and Material Friendly. Our Recommendation for Clamping in Aluminum Parts.

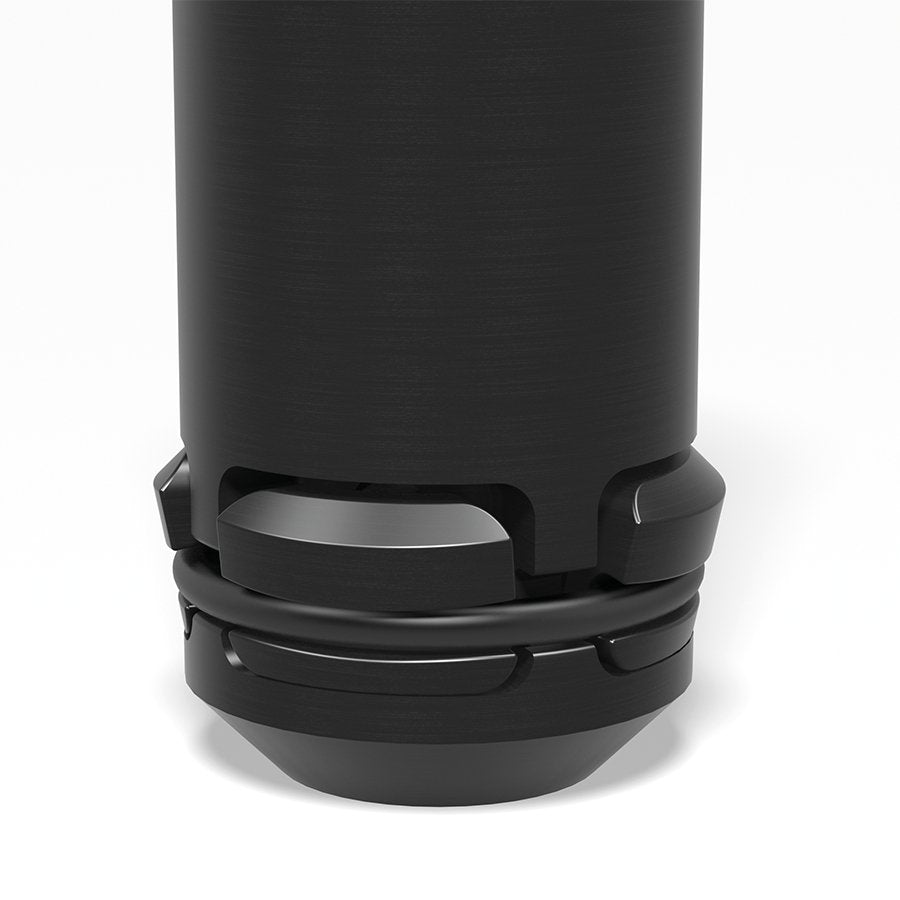

NEW FOLD OUT ELEMENTS

  • Flat Interlocking and Even Force Distribution.
  • Developed for Aluminum and Other Soft Materials.
  • Fold-out Elements Made of Through-hardened Tool Steel.
  • O-ring Made of Heat Resistant and Heavy-duty Material.

EASY-TO-USE HANDLE

  • Optimal Grip Ergonomics.
  • Threaded Handwheel with Internal Hexagon Socket.
  • Specifically Made for System 16 Bore Holes, both Welding Tables and Stops.

SECURE CONNECTIONS

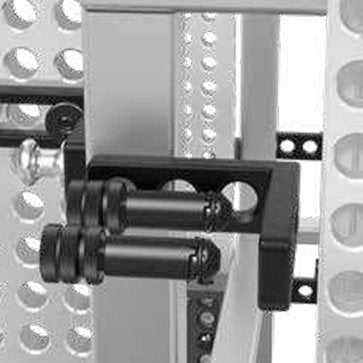

  • Optimized for Use in Aluminum Profiles, 4 Components.
  • Without O-ring Slot for a Smooth Surface of the Bolt Body.
  • This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Overall Design Allows Any Piece to be Held in Place Tightly.

Specs and Features
of the System 16
Quadruple Areal Clamping Bolt
Item No. 2-160590.4

Specs and Features
of the System 16
Quadruple Areal Clamping Bolt
Item No.
2-160590.4

Length: 3.11" (79 mm)

Weight: 0.30 lbs. (0.14 kg)

Diameter: 5/8" (16 mm)

Tensile Force Steel: 4 kN

Tensile Force Aluminum: 2 kN

Shearing Force: 50 kN

Tightening Torque Steel: 10 Nm

Tightening Torque Aluminum: 10 Nm
