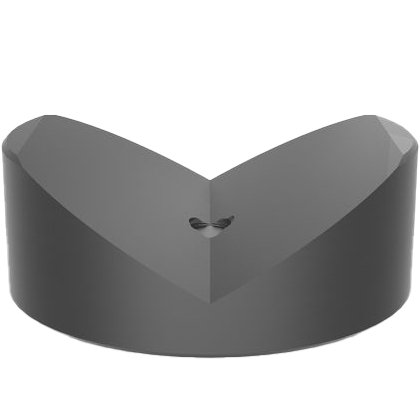

The Siegmund Ø 80 Diameter with a 120° angle, suitable for pipes with a diameter of up to 120mm. The Prism creates a stable surface especially for round pipes and can be used for all 16 mm bore holes.
The prism with screwed-in collar can be fastened in the bore holes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.
Polyamide Prisms are used for scratch-prone surfaces.
Specs and Features:
- Item No. 2-160652.1.PA
- M10 Thread for Example Prism Extensions Item No. 2-160649
- Height: 30mm (1.30'')
- Diameter: 80mm (3.14'')
- Weight: 1.7 Ibs.
