US160650: 1" Ø Duo Prism (Burnished / Nitrided)
- Product SKU: US160650
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US160650: 1" Ø Duo Prism (Burnished / Nitrided) for the Siegmund System 16 Imperial Series (INCH) Welding Tables

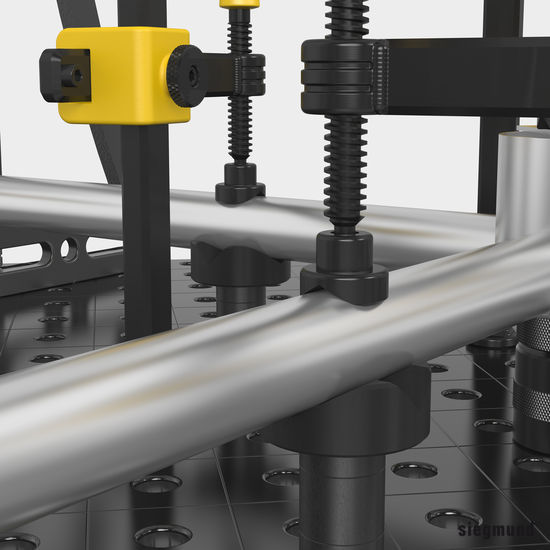

Duo Prism - due to its dual function compatible with all 16mm (5/8") bore holes and screw clamps. The 120° angle creates a stable support surface for all round pipes. The Prism can also be used for flat welding assemblies, due to its leveled corners.
Polyamid Prisms are used for scratch-prone surfaces.
The prism polyamide is only suitable for use as a prism for screw clamps.
- Material Type: Burnished / Nitrided
- For Arbor with Trapezoid Thread 0.47"x0.120" (12x3mm)
- Without O-Ring
- Height: 0.75"
- Diameter: 16mm (5/8")
- Weight: 0.09 lbs.
