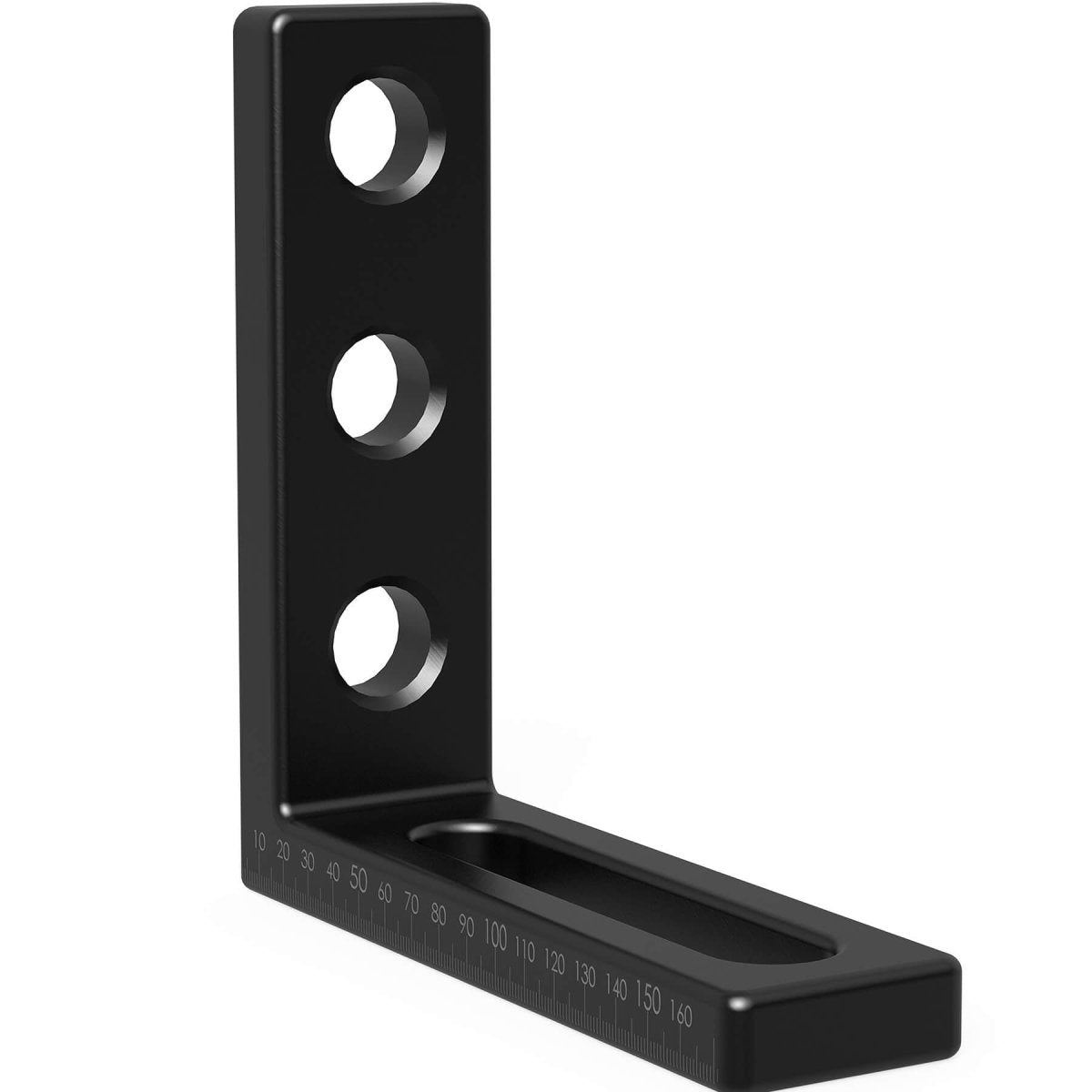

The Siegmund Stop and Clamping Square 175 L is a multifunctional fixture element designed for both stopping and clamping large components at precise right angles. By combining an elongated slot with multiple system boreholes, it allows secure, adjustable positioning while maintaining perfect squareness. Built from plasma-nitrided steel, it delivers exceptional strength, durability, and long-term accuracy for professional fabrication setups.
- Functions as both a 90° clamping square and adjustable stop.
- Elongated slot provides fine alignment and variable positioning.
- Machined from plasma-nitrided tool steel for high wear resistance.
- Engraved fine scaling on both sides enables precise setup replication.
- Compatible with all Siegmund System 22 Series tables and accessories.
- Ideal for holding large, complex, or angled assemblies securely in place.
Key Features:
- Combines clamping, alignment, and stop functionality in one unit.
- Plasma-nitrided finish ensures exceptional hardness and corrosion protection.
- Features both elongated slot and boreholes for flexible positioning.
- Precision scaling supports accurate, repeatable setups.
- Rigid 18mm steel body provides long-lasting dimensional stability.
Specifications:
- Item No.: 2-220110.N
- Series: Siegmund System 22 Metric Series
- Length: 175mm (6.89" Inches)
- Width: 50mm (1.97" Inches)
- Height: 175mm (6.89" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Weight: 3.64 lbs. (1.65 kg.)
- Material: Plasma Nitrided Steel
- Finish: Burnished / Nitrided Hardened Surface
Common Uses:

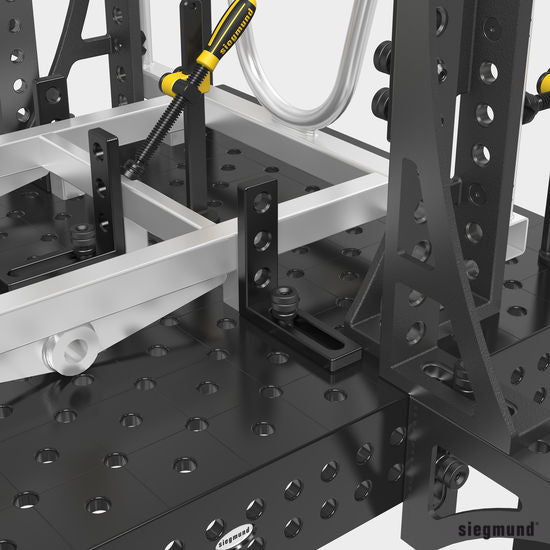

The Stop and Clamping Square 175 L is used for precise right-angle positioning and secure clamping of large or complex parts. It serves as both an adjustable stop and a square fixture, ideal for welding, fabrication, and assembly applications requiring repeatable accuracy and rigid alignment.
