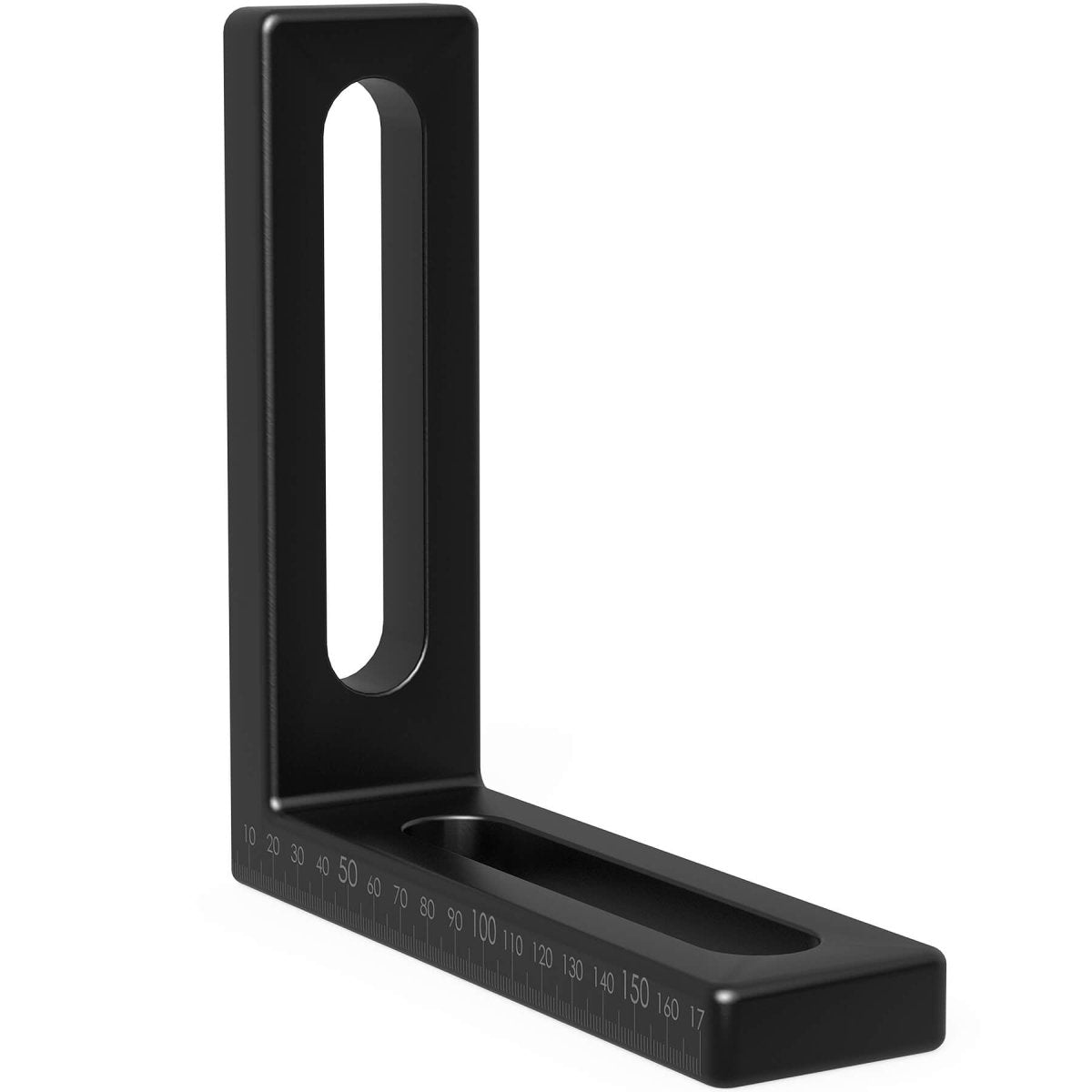

The Siegmund Stop and Clamping Square 175 WL offers exceptional flexibility for adjustable positioning and clamping in the Siegmund System 22 Metric Series. Featuring two elongated slots, it allows precise adjustment and secure fixing at multiple angles or distances. The nitrided steel construction ensures maximum rigidity, wear resistance, and long-term accuracy under load, making it ideal for both clamping and stopping applications.
- Two elongated slots allow flexible, fine adjustment in any direction.
- Acts as both a 90° clamping square and an adjustable stop.
- Precision fine scale markings on both sides for quick setup reference.
- Constructed from plasma-nitrided tool steel for superior hardness and corrosion protection.
- Provides high load stability with consistent squareness.
- Designed for modular precision across Siegmund System 22 setups.
Key Features:
- Delivers flexible, multi-directional adjustability through dual elongated slots.
- Plasma-nitrided surface enhances strength and long-term durability.
- Fine scaling supports repeatable and accurate fixture setups.
- Ideal for use as a positioning stop or right-angle clamping aid.
- Fully compatible with Siegmund System 22 Metric Series tables and accessories.
Specifications:
- Item No.: 2-220111.N
- Series: Siegmund System 22 Metric Series
- Length: 175mm (6.89" Inches)
- Width: 50mm (1.97" Inches)
- Height: 175mm (6.89" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Weight: 3.46 lbs. (1.57 kg.)
- Material: Plasma Nitrided Steel
- Finish: Burnished / Nitrided Hardened Surface
Common Uses:
The Stop and Clamping Square 175 WL is used for adjustable positioning and right-angle support of components in welding and fabrication. Its elongated slots enable precise adjustment and alignment flexibility, allowing fabricators to quickly fine-tune setups while maintaining full rigidity and accuracy during clamping or assembly operations.
