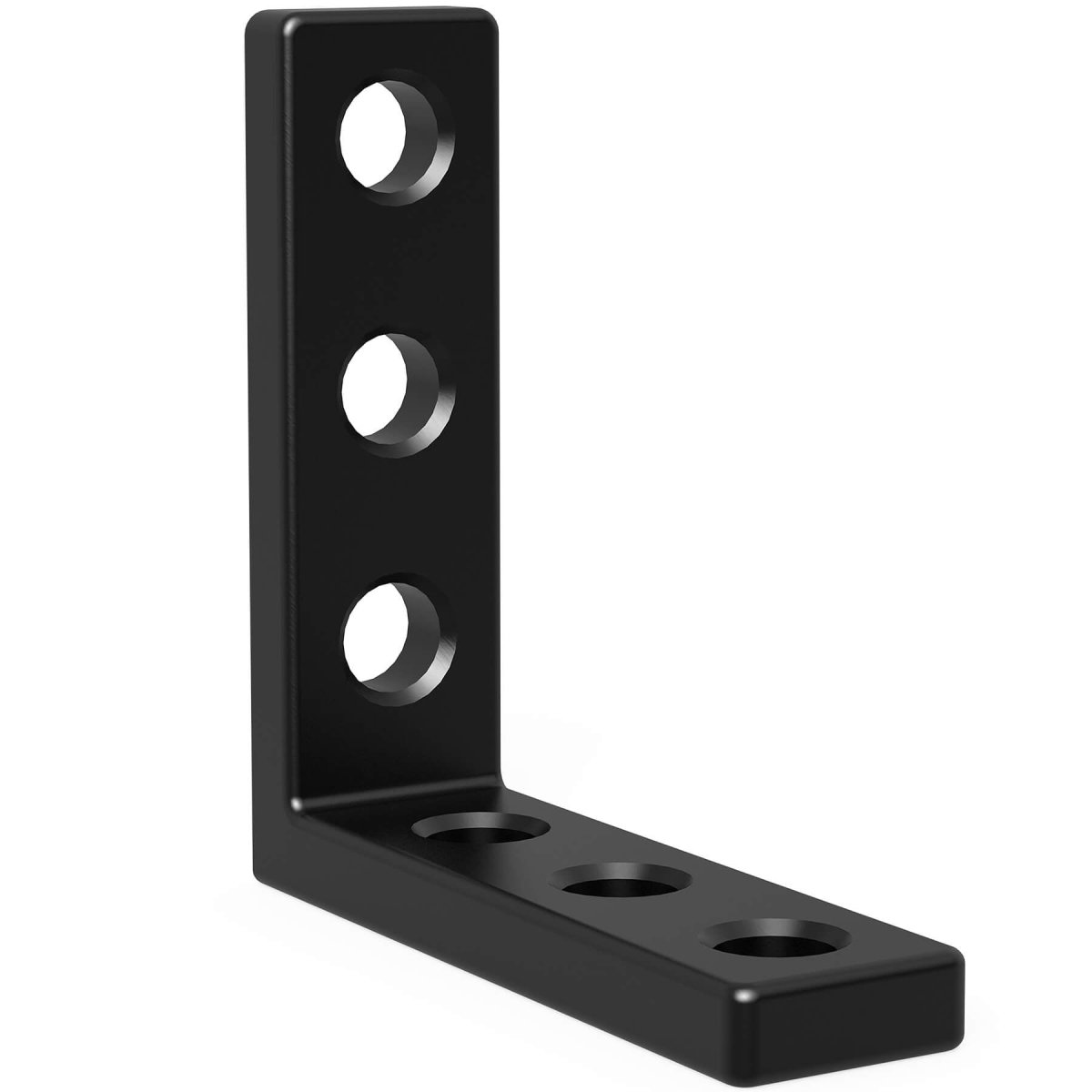

The Siegmund Stop and Clamping Square 175 VL provides stable, high-precision alignment and support for large workpieces in welding and fabrication setups. Designed with boreholes on both sides and no elongated slot, this version serves as a rigid support bracket or stop, maintaining squareness and consistent positioning during setup and assembly. Built from plasma-nitrided steel, it offers maximum wear resistance, strength, and accuracy for long-term shop use.
- Rigid 90° construction ensures precise angular positioning.
- Dual-sided boreholes allow multiple mounting orientations.
- Plasma-nitrided surface provides superior hardness and corrosion resistance.
- Perfect for use as a support bracket or stable fixture stop.
- Compatible with all Siegmund System 22 Metric Series tables and accessories.
- Heavy-duty steel body ensures dimensional accuracy under load.
Key Features:
- Acts as a fixed stop, clamping square, or support bracket.
- No elongated slot — full rigidity and stability for fixed positioning.
- Nitrided finish ensures long service life and corrosion protection.
- Dual-sided boreholes increase mounting flexibility.
- Maintains true alignment for precise fabrication and welding applications.
Specifications:
- Item No.: 2-220113.N
- Series: Siegmund System 22 Metric Series
- Length: 175mm (6.89" Inches)
- Width: 50mm (1.97" Inches)
- Height: 175mm (6.89" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Weight: 4.32 lbs. (1.96 kg.)
- Material: Plasma Nitrided Steel
- Finish: Burnished / Nitrided Hardened Surface
Common Uses:
The Stop and Clamping Square 175 VL is used as a rigid, right-angle fixture or support for large components requiring precise positioning and repeatability. Ideal for welding and fabrication setups where fixed stops or stable brackets are preferred, it delivers lasting accuracy and load-bearing strength within the Siegmund System 22 environment.
