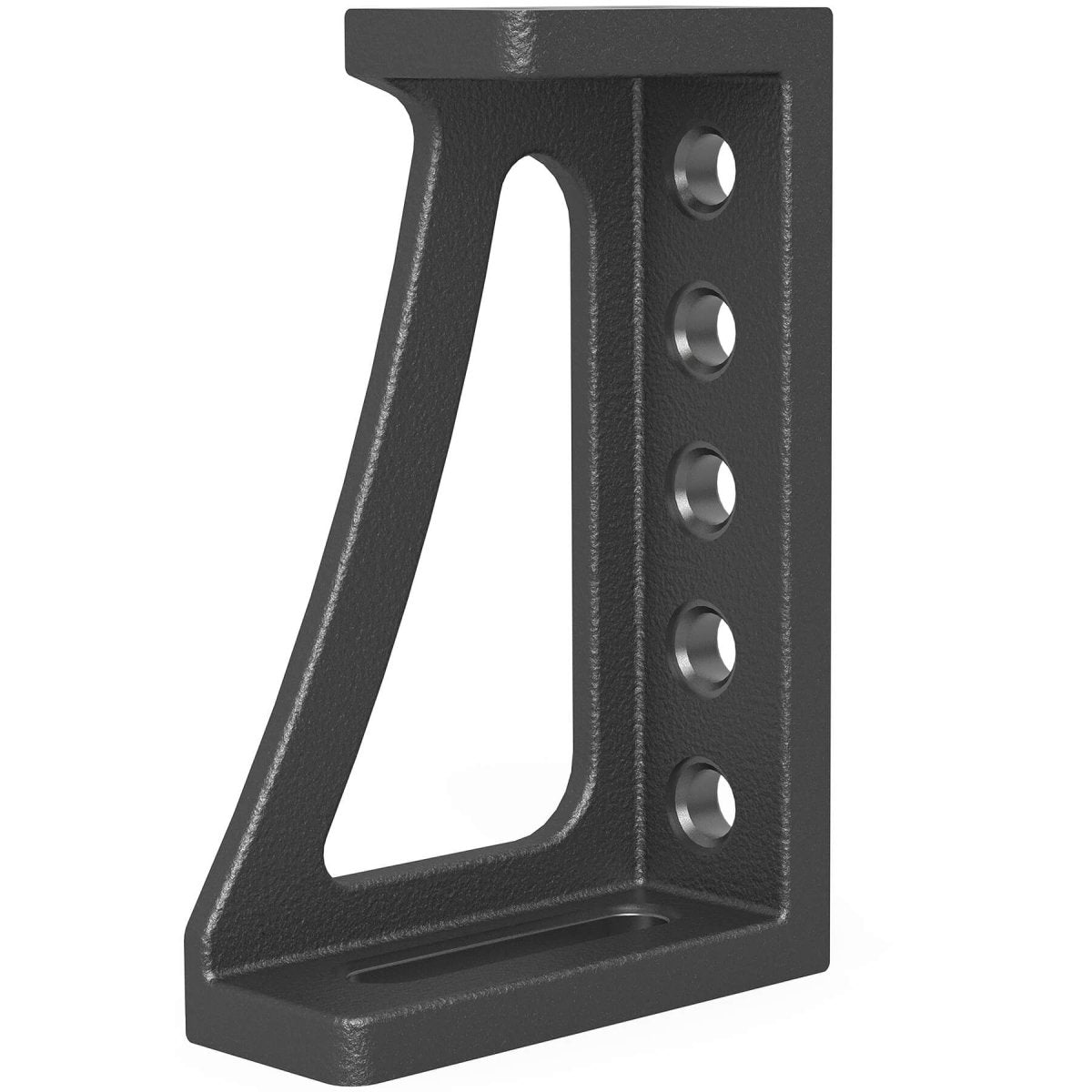

The Siegmund Stop and Clamping Square 300x195 is a versatile and robust fixture designed for precision alignment, support, and clamping in System 22 setups. Its combination of system boreholes and elongated slot enables both fixed and variable positioning, while the integrated head plate increases flexibility for connecting additional components such as prisms, clamps, or other squares. Manufactured from plasma-nitrided GGG40 ductile cast iron, it delivers long-term stability, wear resistance, and dimensional accuracy for demanding industrial use.
- Provides both fixed and adjustable positioning with elongated slot and boreholes.
- High-strength GGG40 ductile cast iron construction ensures rigidity and durability.
- Standard fine scale supports accurate, repeatable alignment.

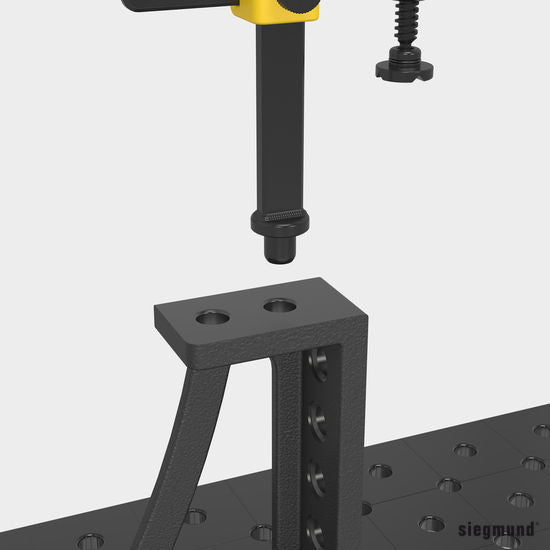

- Head plate allows integration with other squares, clamps, or tooling.
- Nitrided surface resists wear, corrosion, and deformation.
- Functions as a 90° stop, support, or table extension in modular setups.
Key Features:
- Combines stability of a fixed square with versatility of an adjustable fixture.
- Precision machining and nitriding ensure consistent long-term accuracy.

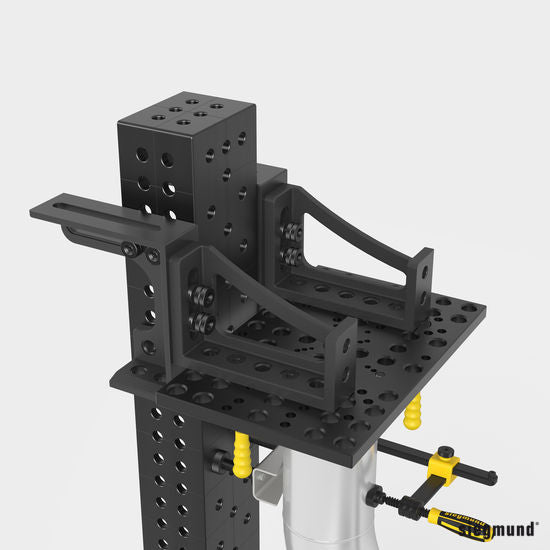

- Additional top plate enables modular configurations for complex assemblies.
- Compatible with Siegmund System 22 Metric Series tables and components.
- Ideal for precision fabrication, clamping, and heavy-duty welding setups.
Specifications:
- Item No.: 2-220116.N
- Series: Siegmund System 22 Metric Series
- Length: 195mm (7.68" Inches)
- Width: 75mm (2.95" Inches)
- Height: 300mm (11.81" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Weight: 14.86 lbs. (6.74 kg.)
- Material: GGG40 Ductile Cast Iron (Nitrided)
- Finish: Plasma Nitrided Hardened Surface
- Feature: Fine Scale Marking
Common Uses:
The Stop and Clamping Square 300x195 is ideal for fabricators requiring precise 90° positioning with adjustable flexibility. It serves as both a right-angle fixture and modular connection point, supporting prisms, clamps, or other squares for complex weldments or assembly tasks. Its rigid cast-iron frame ensures reliable accuracy and vibration resistance in professional shop environments.
