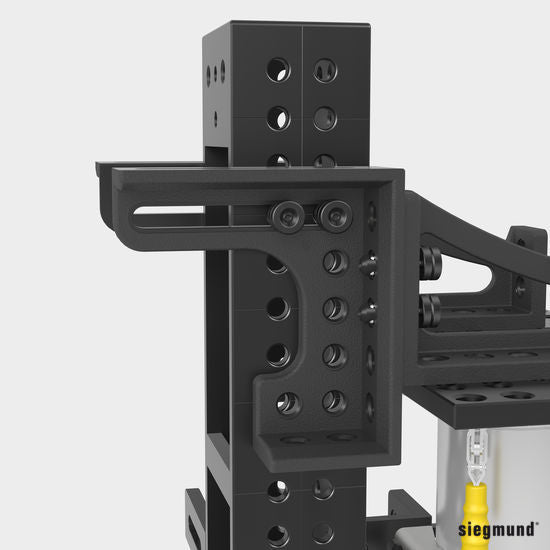

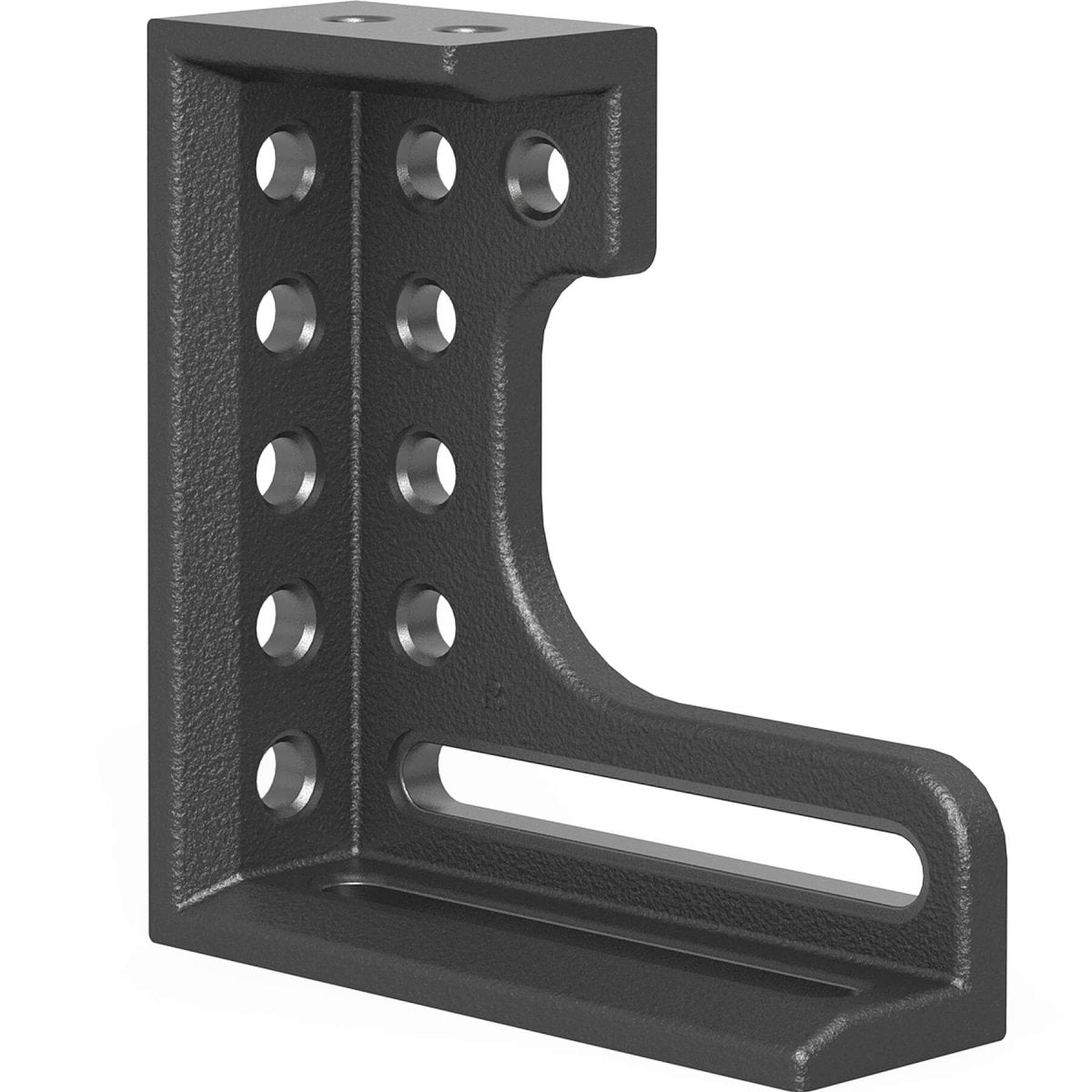

The Siegmund Stop and Clamping Square 300 GK Right Nitrided is a precision-engineered fixture designed for the alignment and clamping of large or heavy components. With its three-dimensional design, multiple boreholes, and elongated slot, it supports a wide range of clamping configurations while maintaining exceptional rigidity. Built from high-quality GGG40 ductile cast iron and plasma-nitrided for hardness, it functions as both a stop and a table extension, ensuring long-term dimensional stability and corrosion resistance.
- Provides extensive clamping flexibility through 3D design and multiple boreholes.
- Functions as a stop, support, or extension of the table surface.
- Manufactured from GGG40 ductile cast iron for high strength and vibration absorption.
- Plasma-nitrided finish ensures exceptional wear and corrosion resistance.
- Includes precision fine scale for accurate, repeatable positioning.
- Stop positioned on the right; ordering in pairs is recommended for balanced setups.
Key Features:
- Offers strong, stable, and adjustable 90° clamping for heavy workpieces.
- Nitrided surface enhances hardness and surface longevity.
- Multiple boreholes and elongated slot provide versatile mounting options.
- Three-dimensional structure ensures rigidity for large-scale setups.
- Fully compatible with Siegmund System 22 Metric Series tables and accessories.
Specifications:
- Item No.: 2-220126.N
- Series: Siegmund System 22 Metric Series
- Length: 280mm (11.02" Inches)
- Width: 95mm (3.74" Inches)
- Height: 300mm (11.81" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Weight: 25.35 lbs. (11.5 kg.)
- Material: GGG40 Ductile Cast Iron (Nitrided)
- Finish: Plasma Nitrided Hardened Surface
- Stop Orientation: Right Side
- Scale: Standard with Fine Graduations
Common Uses:

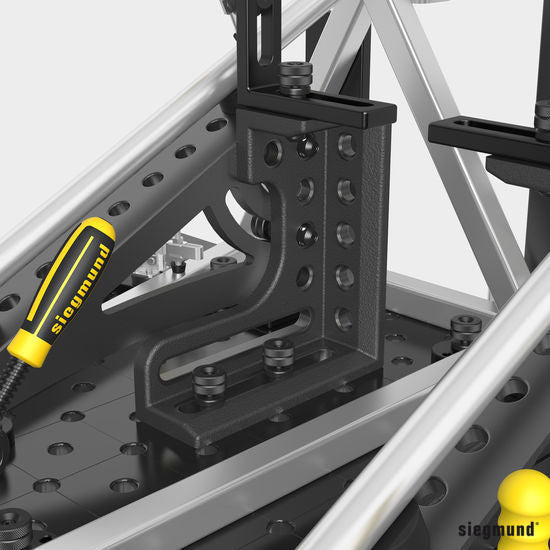

The Stop and Clamping Square 300 GK Right is designed for large-scale fabrication, assembly, and welding operations that require strong, precise right-angle positioning. It provides heavy-duty support for large workpieces and fixtures, offering flexibility for complex setups while maintaining Siegmund’s industry-leading accuracy and stability.
