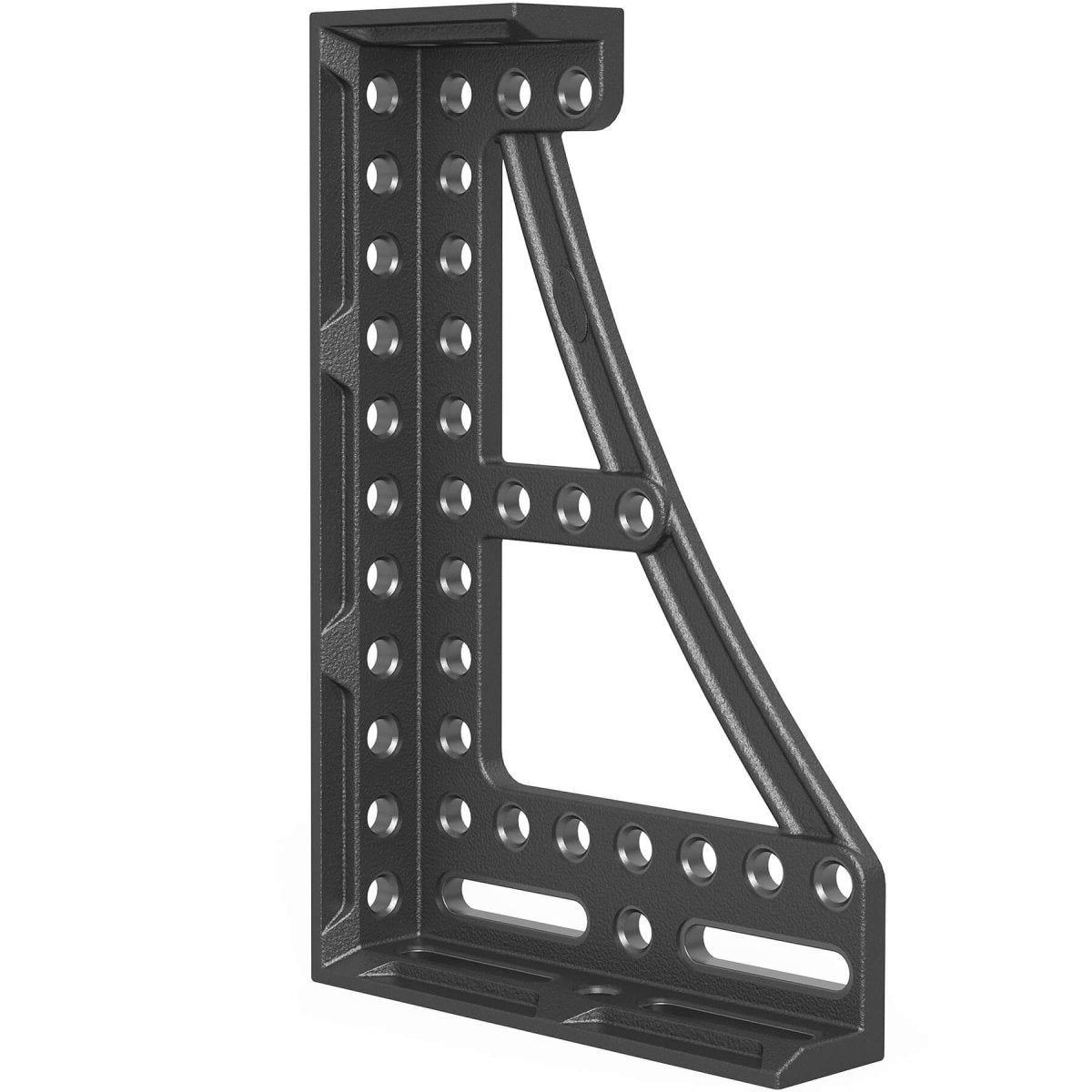

The Siegmund Stop and Clamping Square 600 GK Right Nitrided is a heavy-duty precision fixture engineered for maximum rigidity and versatility in professional fabrication and welding environments. Its three-dimensional design with an additional bore row offers expanded clamping options and improved structural stability for demanding setups. Designed to function as both a stop and a table extension, this fixture provides unmatched accuracy and durability. Constructed from GGG40 ductile cast iron and finished with Siegmund’s plasma nitriding process, it resists wear, corrosion, and deformation under high loads.
- Three-dimensional frame enables multiple clamping and positioning configurations.
- Additional bore row increases strength and stability during heavy use.

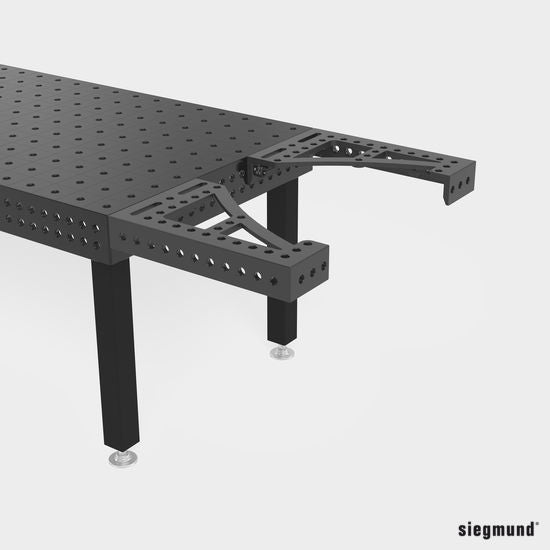

- Functions as both a 90° stop and a table extension for large components.
- Manufactured from GGG40 ductile cast iron for superior rigidity and vibration - resistance.
- Plasma-nitrided surface delivers exceptional hardness and long-term protection.
- Stop positioned on the right; ideal for use in matched left-right pairs.
Key Features:
- Provides extreme stability and load-bearing accuracy for large assemblies.
- Fine scale markings ensure repeatable and precise positioning.
- Highly durable nitrided surface enhances longevity and dimensional precision.
- Compatible with all Siegmund System 22 Metric Series tables and accessories.
- Engineered for demanding fabrication, assembly, and alignment applications.
Specifications:
- Item No.: 2-220136.N
- Series: Siegmund System 22 Metric Series
- Length: 373mm (14.69" Inches)
- Width: 95mm (3.74" Inches)
- Height: 600mm (23.62" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Weight: 48.06 lbs. (21.8 kg.)
- Material: GGG40 Ductile Cast Iron (Nitrided)
- Finish: Plasma Nitrided Hardened Surface
- Stop Orientation: Right Side
Common Uses:

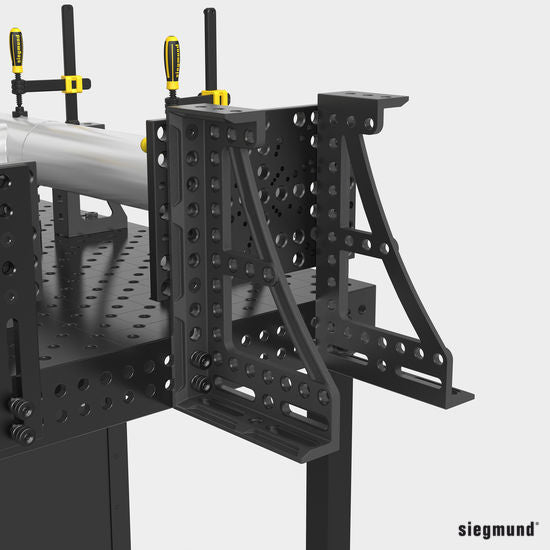

The Stop and Clamping Square 600 GK Right Nitrided is designed for high-precision fabrication, welding, and assembly of heavy or oversized workpieces. It ensures reliable 90° alignment and stability, making it ideal for use as a stop, support, or table extension within Siegmund System 22 setups.
