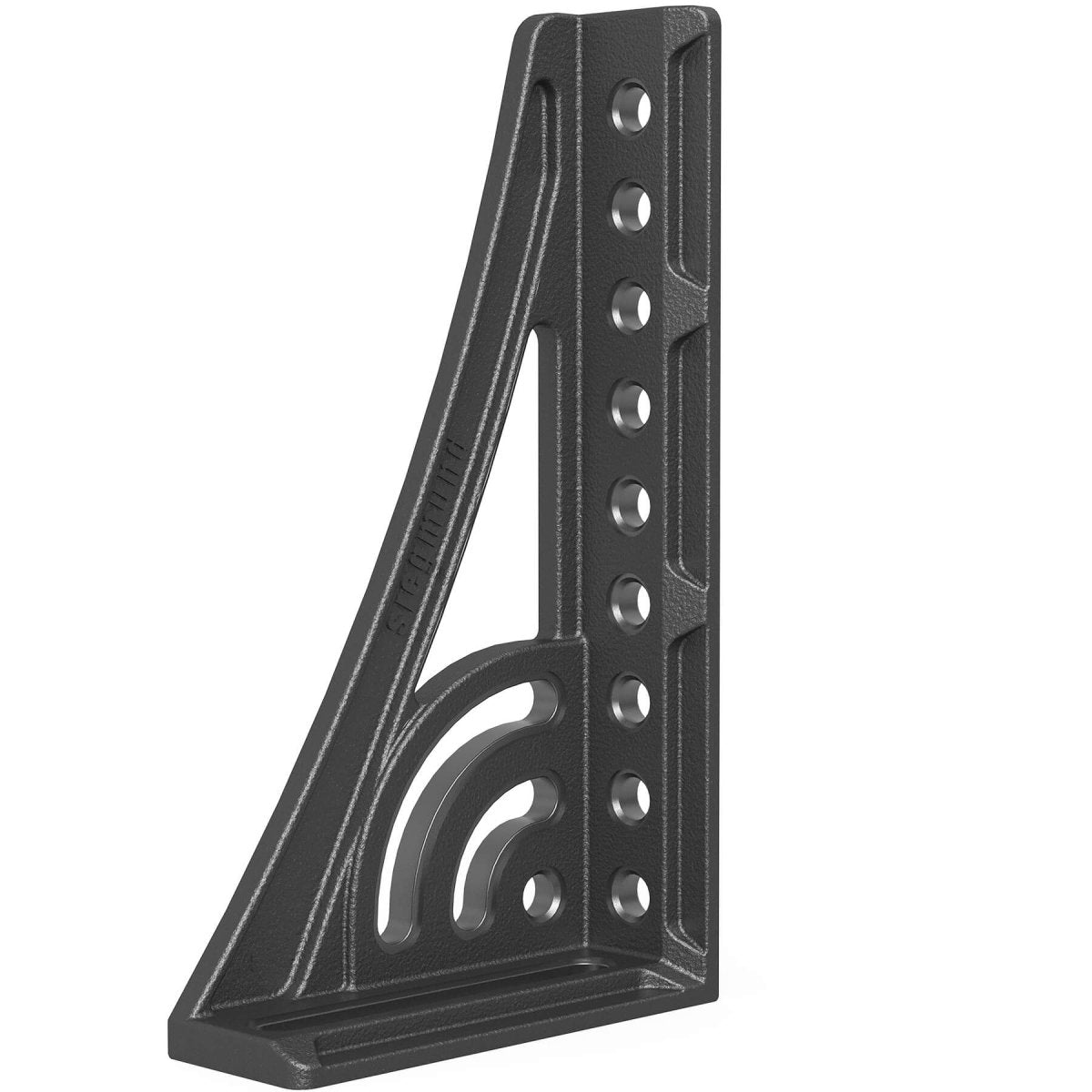

The Siegmund Stop and Clamping Square 500 G with Rotation Angle Left Nitrided offers exceptional rigidity and flexibility for large-scale fabrication and clamping applications. Featuring a curved reinforcement design for added strength, this heavy-duty fixture can be both fixed and variably adjusted using its system boreholes and elongated slot. It serves as a precise 90° stop or as an extension of the welding table, delivering superior accuracy and durability. Constructed from high-grade GGG40 ductile cast iron and plasma-nitrided for hardness, it provides long-lasting performance under the most demanding shop conditions.
- Can be used as a rigid stop, clamping fixture, or table extension.
- Combination of system boreholes and elongated slot allows variable adjustment.
- Curved internal rib design enhances stability and load-bearing capacity.
- Cast from GGG40 ductile iron for superior rigidity and vibration damping.
- Plasma-nitrided surface resists wear, corrosion, and distortion.
- Stop positioned on the left; pair use recommended for symmetrical setups.
Key Features:

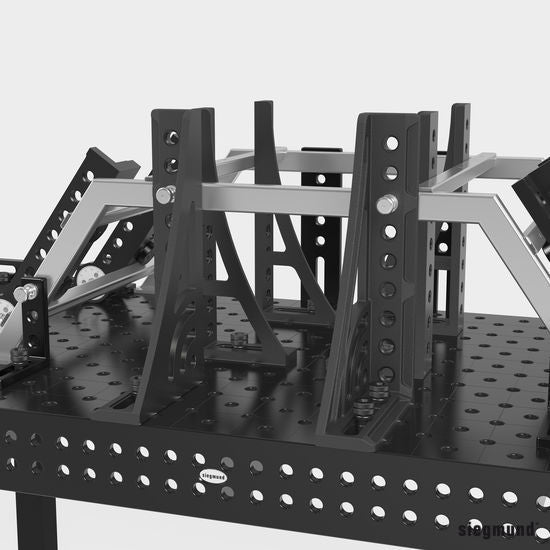

- Provides exceptional stability for large or heavy workpieces.
- Curved reinforcement structure increases rigidity and precision.
- Nitrided finish ensures extended service life and dimensional accuracy.
- Supports fixed and adjustable configurations for flexible fixturing.
- Compatible with all Siegmund System 22 Metric Series tables and accessories.
Specifications:
- Item No.: 2-220164.N
- Series: Siegmund System 22 Metric Series
- Length: 276mm (10.87" Inches)
- Width: 95mm (3.74" Inches)
- Height: 500mm (19.69" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Weight: 25.57 lbs. (11.6 kg.)
- Material: GGG40 Ductile Cast Iron (Nitrided)
- Finish: Plasma Nitrided Hardened Surface
- Stop Orientation: Left Side
- Scale: Standard with Fine Graduations
Common Uses:

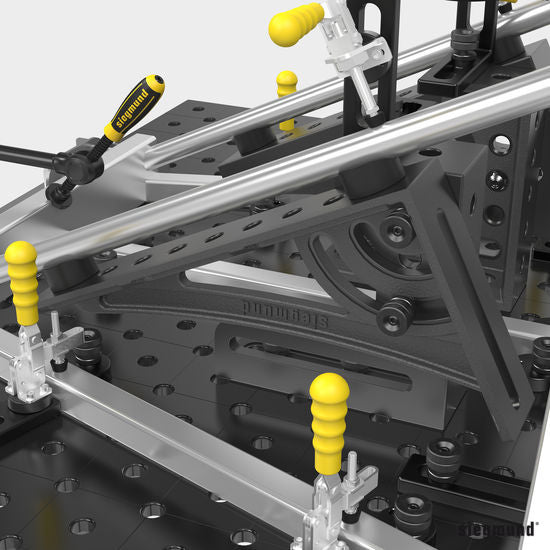

The Stop and Clamping Square 500 G with Rotation Angle Left is ideal for welding, assembly, and fabrication tasks requiring strong, precise right-angle alignment. It is frequently used for heavy components or as a table extension, offering reliable squareness, load capacity, and fine-scale adjustment in demanding System 22 applications.
