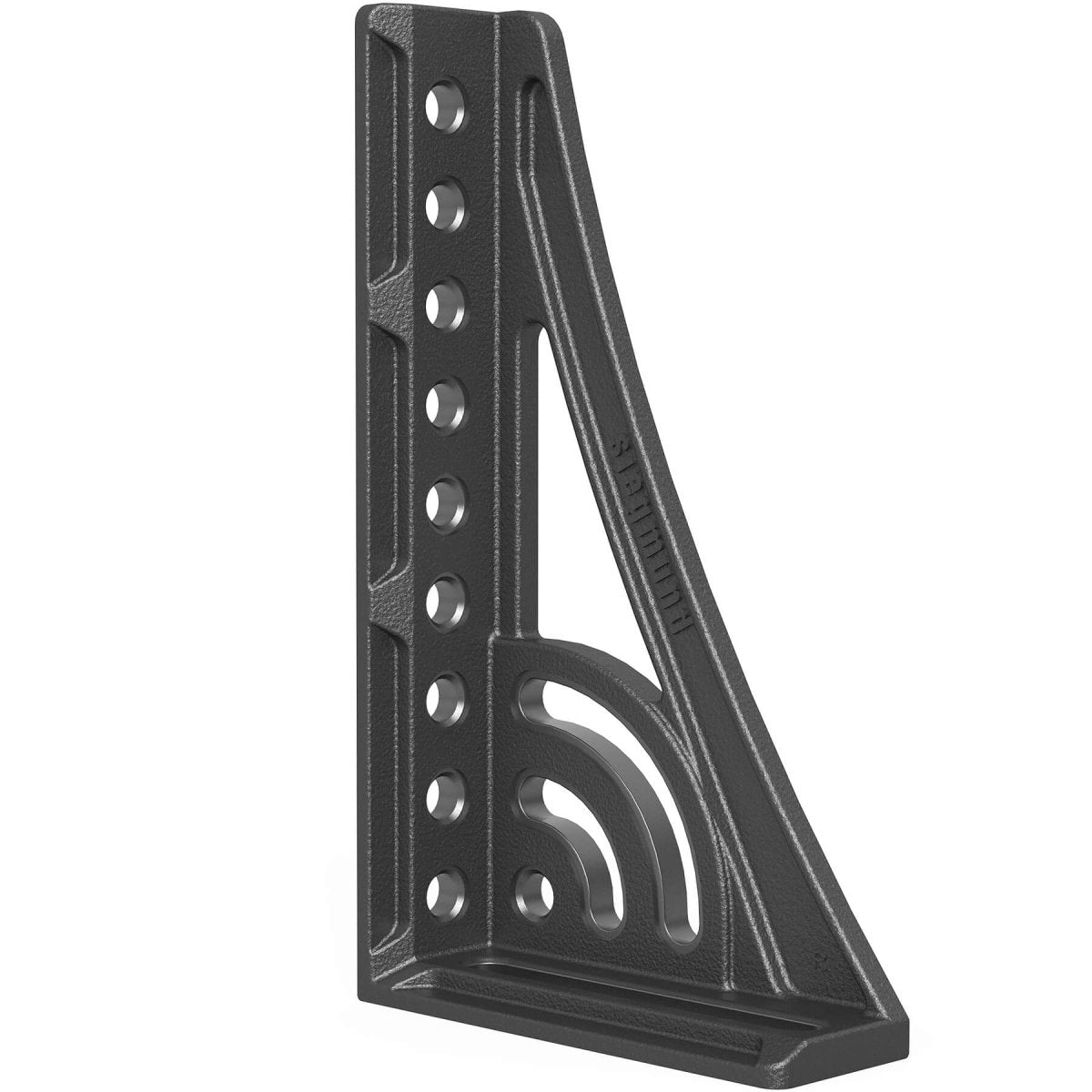

2-220165.N: 500mm G Stop and Clamping Square with Right Rotation Angle (Nitrided)

2-220165.N: 500mm G Stop and Clamping Square with Right Rotation Angle (Nitrided)

Availability: In Stock
$263 $296
Successful pre-order.Thanks for contacting us!

The Siegmund 2-220165.N: 500mm G Stop and Clamping Square with Right Rotation Angle (Nitrided) can be fixed and variably adjusted due to the combination of system bore holes and the oblong slot. The versatile Square can also be used as table extension. This component is manufactured of high quality GGG40 ductile cast iron.

Specs and Features:
- Item No. 2-220165.N
- Stop on Right
- Standard with Fine Scale
- Length: 276mm (10.86'')
- Width: 95mm (3.74'')
- Height: 500mm (19.68'')
- Material Thickness: 20mm (0.78'')
- Weight: 25.57 Ibs.
