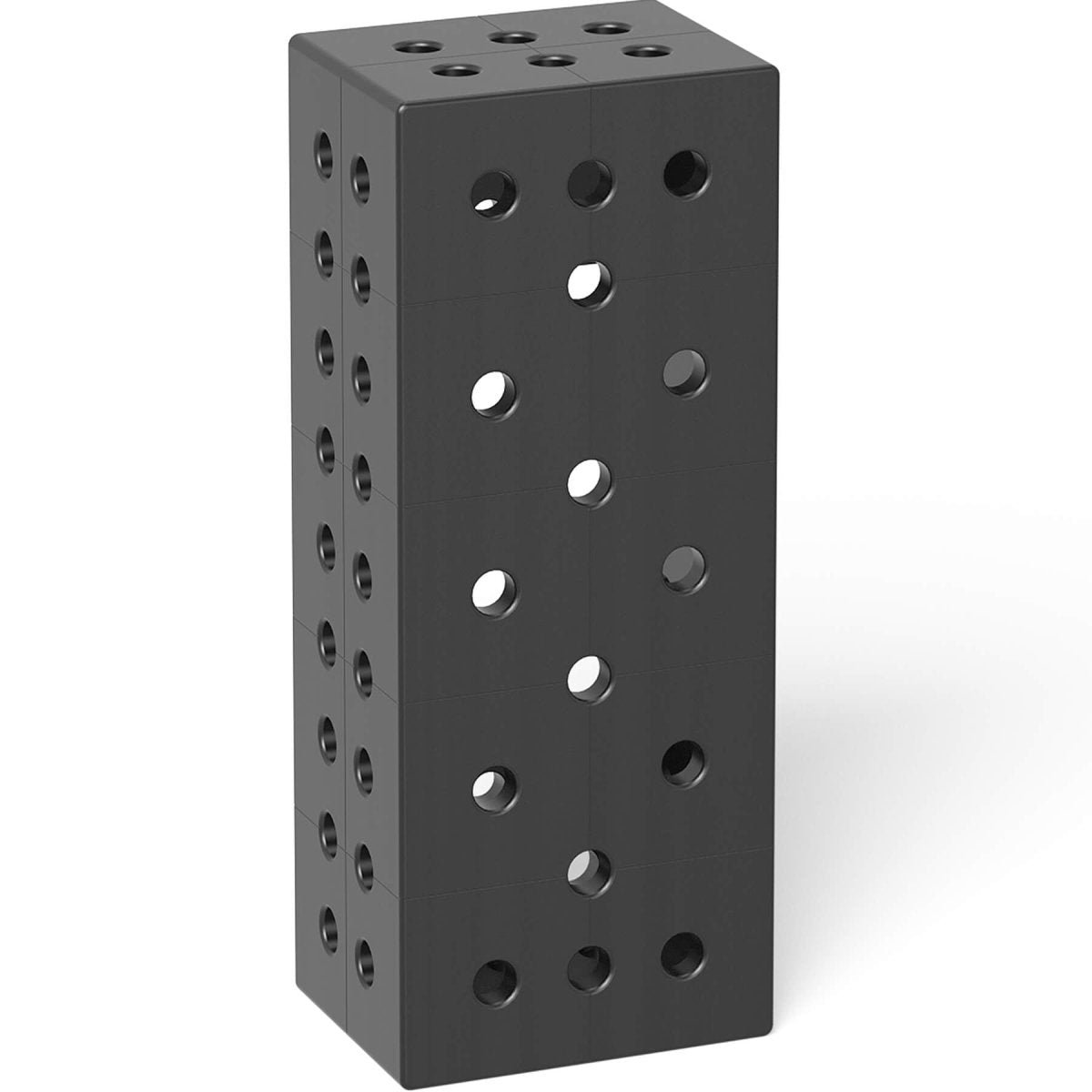

The Siegmund Square U-Shape 500x200x150 Plasma Nitrided delivers high rigidity and precision for table extensions, vertical setups, or fixture connections between Siegmund System 22 tables. Designed for heavy-duty applications, it ensures secure and accurate alignment while maintaining the flexibility needed in modular welding systems.
- Manufactured from high-quality steel and plasma nitrided for wear and corrosion resistance.
- Ideal for creating vertical extensions or joining tables into a larger work surface.
- Diagonal hole layout provides versatile clamping and connection points.
- Features grid lines with 100mm (3.94" Inches) spacing for easy orientation.
- Back face includes mounting holes for attaching table legs or vertical supports.
- Maintains accuracy for extensions exceeding 1,000mm (39.37" Inches) with proper leg support.
Key Features:
- Plasma-nitrided finish ensures long-term durability and smooth operation.
- Diagonal bore arrangement supports multiple clamping configurations.
- Ideal for rigid table extensions and vertical mounting setups.
- Accurate grid pattern improves repeatable positioning and alignment.
- Compatible with Siegmund System 22 components and accessories.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 500mm (19.69" Inches)
- Width: 200mm (7.87" Inches)
- Height: 150mm (5.91" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Material: Plasma Nitrided Steel
- Weight: 94.80 lbs. (43 kg.)
Common Uses:
The Siegmund 2-220360.P Square U-Shape supports large structural assemblies and extensions within modular System 22 setups. It’s frequently used to bridge tables, build tall or multi-level fixtures, or mount additional components with exact alignment. Its rigidity and nitrided surface make it ideal for precision fabrication environments that demand strength, stability, and dimensional accuracy.
