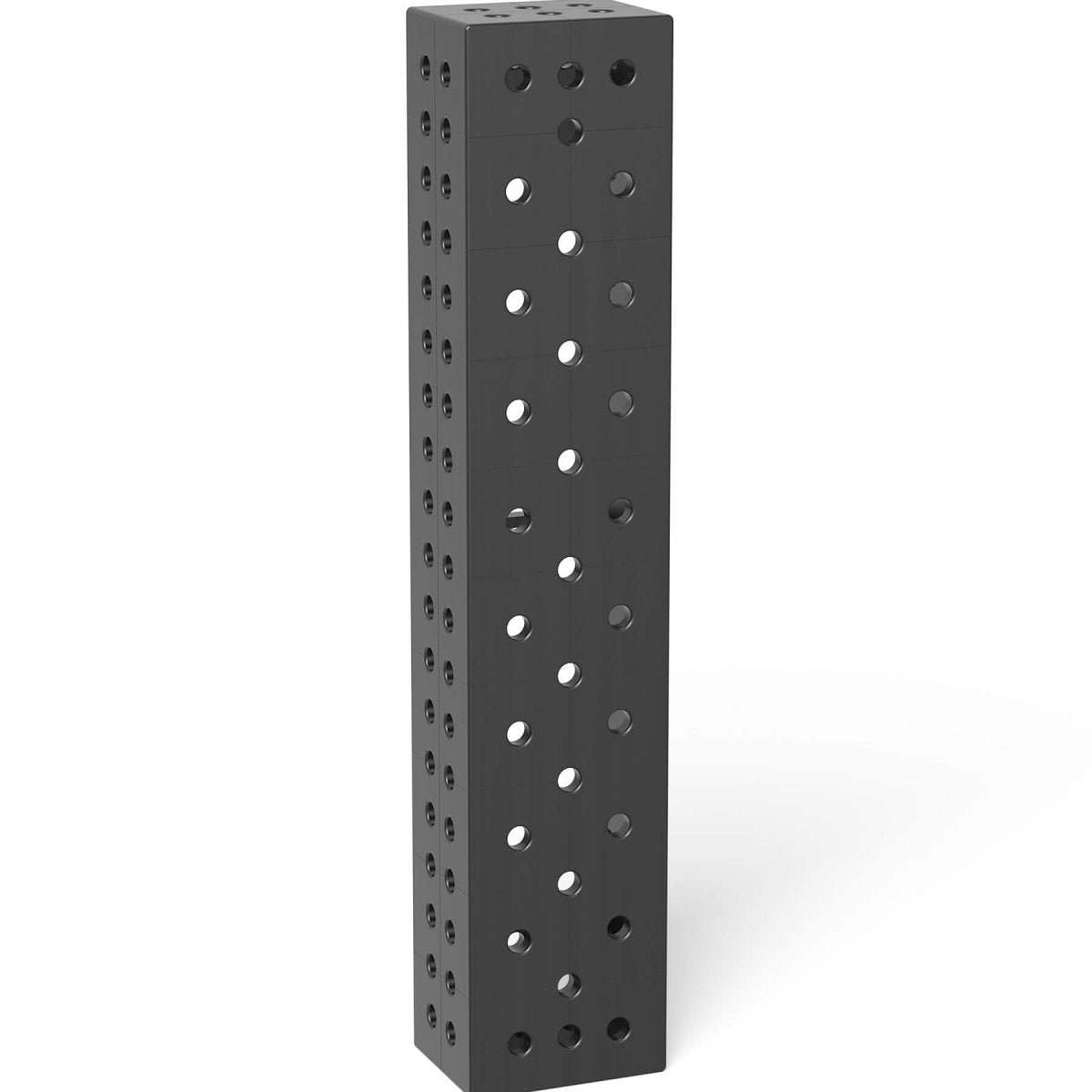

The Siegmund Square U-Shape 1,000x200x150 Plasma Nitrided provides exceptional rigidity and precision for large table extensions and vertical setups in Siegmund System 22 workstations. Built for heavy-duty fabrication and alignment tasks, it maintains dimensional accuracy even under high load conditions.
- Manufactured from high-strength steel and plasma nitrided for superior wear and corrosion resistance.
- Supports large table extensions or elevated fixture configurations.
- Diagonal bore pattern enables multiple clamping and connection options.
- Includes grid lines with 100mm (3.94" Inches) spacing for consistent positioning.
- Mounting holes on the back allow secure attachment of table legs for additional support.
- Ideal for use in applications exceeding 1,000mm (39.37" Inches) in length.
Key Features:
- Plasma-nitrided finish ensures long-lasting surface protection.
- Diagonal hole arrangement provides maximum flexibility for fixturing.
- Accurate and stable platform for large welding and assembly setups.
- Compatible with Siegmund System 22 accessories and components.
- Provides repeatable precision for vertical and horizontal extensions.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 1,000mm (39.37" Inches)
- Width: 200mm (7.87" Inches)
- Height: 150mm (5.91" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Material: Plasma Nitrided Steel
- Weight: 165.35 lbs. (75 kg.)
Common Uses:
The Siegmund 2-220370.P Square U-Shape is used for connecting or extending large welding tables and for vertical fixture construction. It provides unmatched rigidity for heavy assemblies, ensuring accurate and repeatable alignment across long spans. Ideal for fabricators building large jigs or modular setups that require structural strength and long-term precision in demanding production environments.
