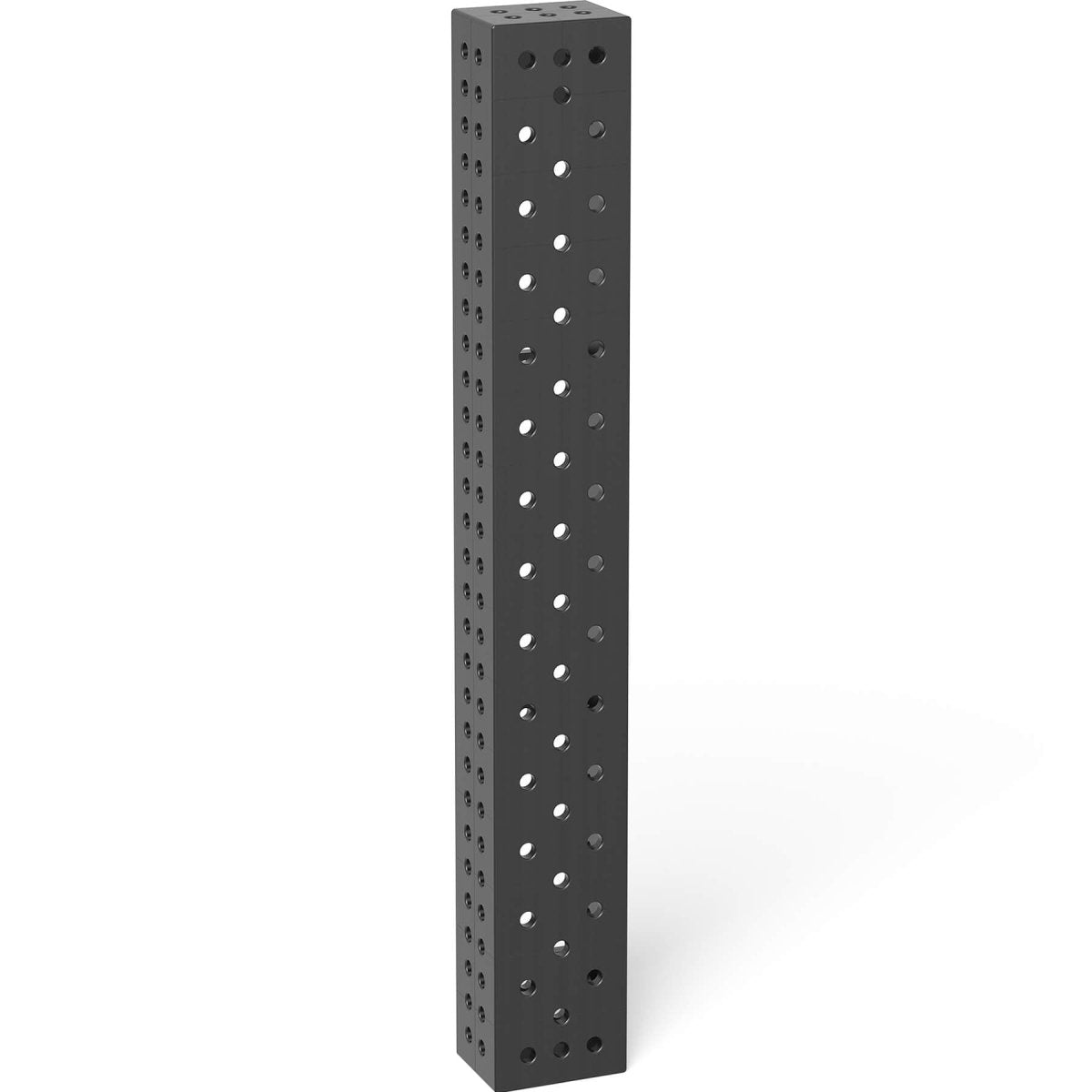

The Siegmund Square U-Shape 1,500x200x150 Plasma Nitrided delivers exceptional structural rigidity and alignment accuracy for large-scale fabrication setups. It provides a strong, stable platform for table extensions, vertical assemblies, or fixturing within the Siegmund System 22. Built to handle heavy loads, it ensures consistent accuracy and long-term performance.
- Manufactured from premium steel and plasma nitrided for corrosion and wear resistance.
- Ideal for extending tables or mounting large fixtures and assemblies vertically.
- Diagonal bore layout allows multiple clamping and connection configurations.
- Grid lines with 100mm (3.94" Inches) spacing simplify alignment and orientation.
- Back mounting holes enable the secure attachment of table legs or supports.
- Supports long extensions exceeding 1,000mm (39.37" Inches) with exceptional stability.
Key Features:
- Plasma-nitrided finish provides long-term surface protection and wear resistance.
- Diagonal hole pattern supports flexible, high-precision clamping setups.
- High structural integrity for demanding fabrication environments.
- Accurate grid pattern ensures repeatable, precise alignment.
- Fully compatible with Siegmund System 22 fixtures and accessories.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 1,500mm (59.06" Inches)
- Width: 200mm (7.87" Inches)
- Height: 150mm (5.91" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Material: Plasma Nitrided Steel
- Weight: 235.89 lbs. (107 kg.)
Common Uses:

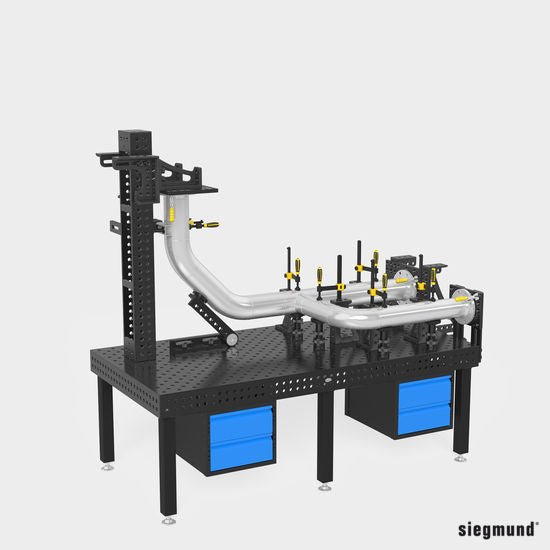

The Siegmund 2-220380.P Square U-Shape provides a reliable foundation for precision welding, large table extensions, and multi-level fixture construction. Commonly used in high-capacity modular setups, it supports long-span assemblies with rigidity and accuracy. Ideal for advanced fabrication, frame alignment, and fixture-building operations requiring consistent dimensional precision and durability.
