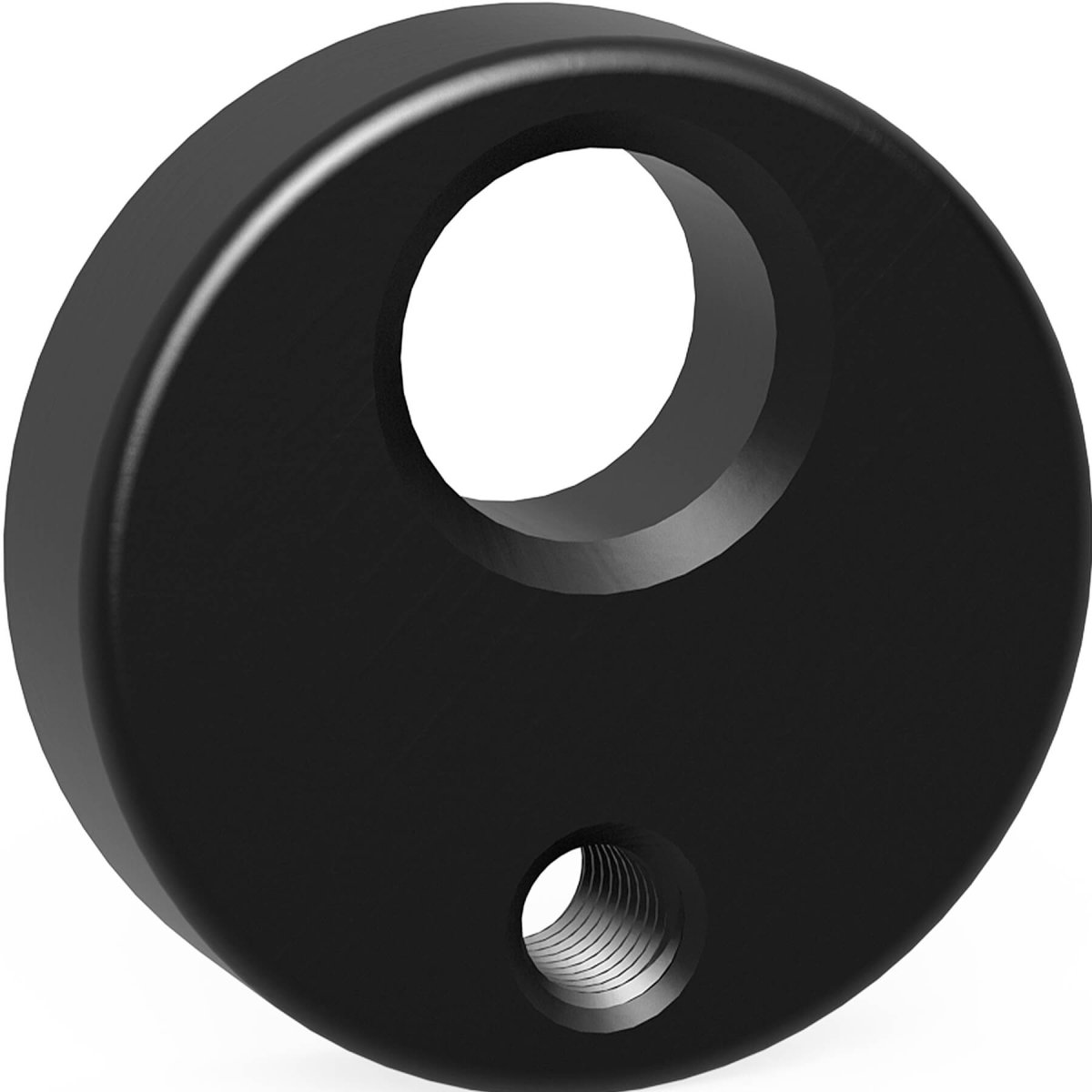

The Siegmund Eccentric Stop Ø60mm is a compact, high-precision positioning element for the Siegmund System 22 Series. It allows infinite fine adjustment by simple rotation, providing quick, space-saving alignment of workpieces and fixtures. Its nitrided surface ensures exceptional wear resistance and longevity, even under continuous use in demanding fabrication environments.
- Provides precise, infinitely variable adjustment by rotation.
- Ideal for fine positioning and fixture alignment on System 22 tables.
- M10 threaded design ensures secure, consistent clamping.
- Space-efficient geometry fits tight fixture layouts.
- Manufactured from hardened, plasma-nitrided steel for long service life.
- Optimized for high-accuracy setups and repeatable positioning.
Key Features:
- Delivers smooth, infinite adjustment for fast, precise setup changes.
- Nitrided steel construction provides outstanding durability and corrosion resistance.
- Compact design reduces interference in tight fixturing zones.
- Threaded M10 connection allows secure mounting.
- Compatible with Siegmund System 22 Metric Series tables and accessories.
Specifications:
- Item No.: 2-220402.N
- Series: Siegmund System 22 Metric Series
- Diameter: 60mm (2.36" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Thread: M10
- Weight: 0.73 lbs. (0.33 kg.)
- Material: Plasma Nitrided Steel
- Finish: Burnished / Nitrided Hardened Surface
Common Uses:

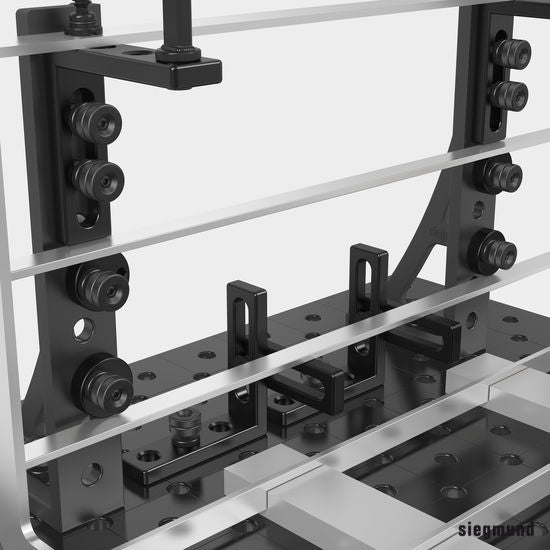

Used for ground-level or table-mounted positioning, the Eccentric Stop Ø60mm enables quick, precise adjustment of parts and fixtures with minimal space requirements. It is ideal for welders and fabricators seeking to optimize accuracy, repeatability, and setup speed on Siegmund System 22 tables.
