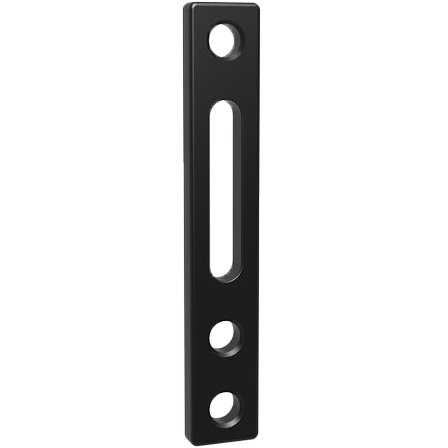

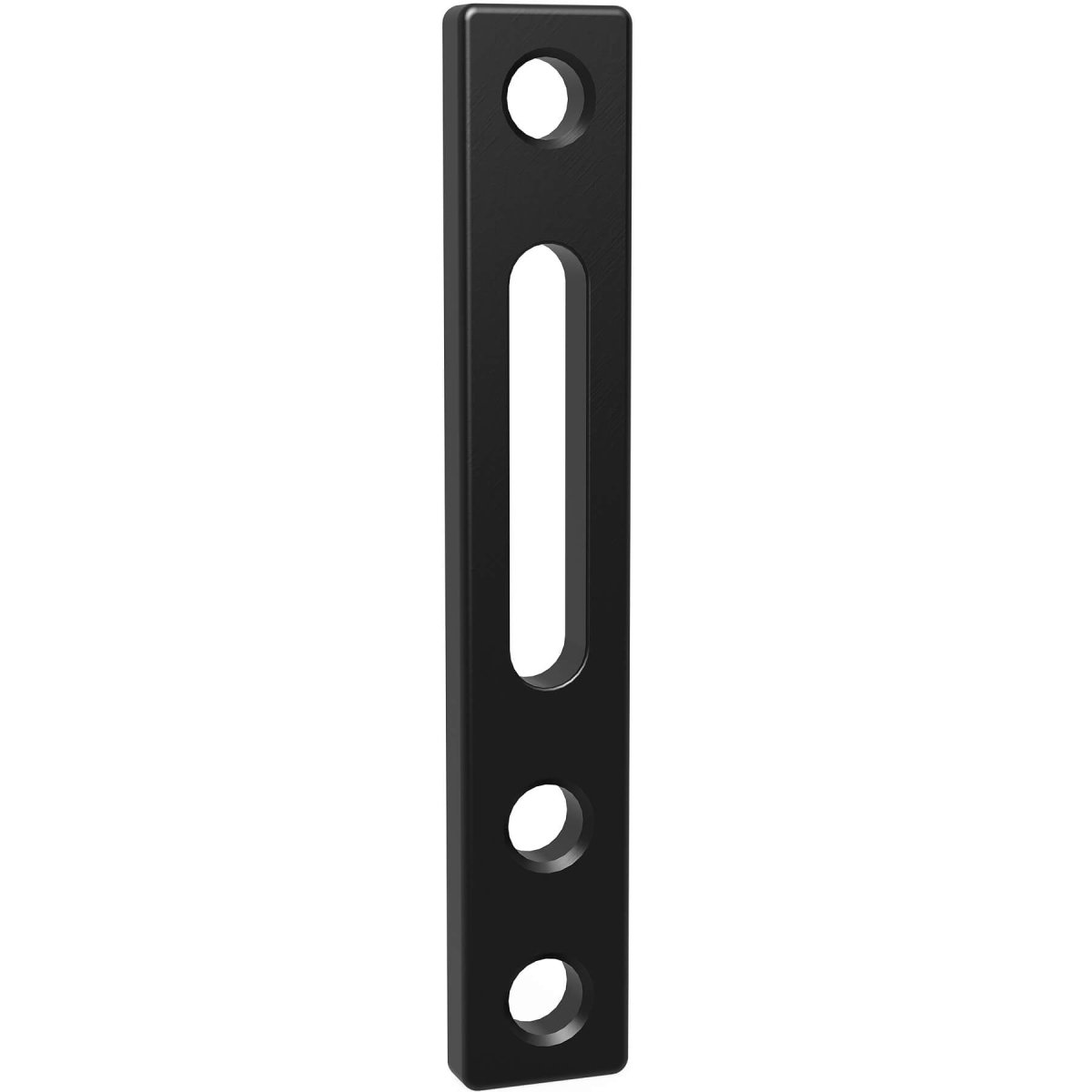

The Siegmund Universal Stop 300 expands your fixturing range by providing both fixed and adjustable stop options. Featuring three system boreholes and a 0–100mm (0–3.94" Inches) elongated slot, it enables secure positioning or fine adjustment of components with maximum flexibility. Built from plasma-nitrided tool steel, it maintains exceptional precision and surface hardness for long-term reliability in demanding fabrication environments.
- Combines elongated slot and triple borehole layout for flexible use.
- Provides a 0–100mm adjustable range for accurate alignment.
- Acts as both a fixed and variable stop surface expansion.
- Manufactured from hardened, plasma-nitrided steel for extended wear life.
- Dual-side scaling ensures consistent measurement and repeatability.
- Ideal for high-precision and modular welding applications.
Key Features:
- Combines multiple mounting points with a linear adjustment slot.
- Nitrided surface guarantees exceptional wear and corrosion resistance.
- Triple borehole design allows both rigid and adjustable setups.
- Accurate scaling on both sides for efficient, repeatable positioning.
- Compatible with all Siegmund System 22 Metric Series tables and components.
Specifications:
- Item No.: 2-220426.N
- Series: Siegmund System 22 Metric Series
- Length: 300mm (11.81" Inches)
- Width: 50mm (1.97" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Adjusting Range: 100mm (3.94" Inches)
- Weight: 3.40 lbs. (1.54 kg.)
- Material: Plasma Nitrided Steel
- Finish: Burnished / Nitrided Hardened Surface
Common Uses:
The Universal Stop 300 is used to extend stop surfaces and provide both fixed and adjustable reference points for System 22 setups. Ideal for welding, fabrication, and assembly applications, it allows flexible fixturing combinations using its triple boreholes and elongated slot, ensuring stable, precise alignment across large or complex workpieces.
