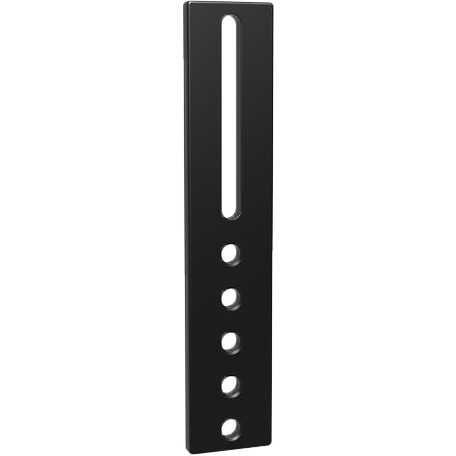

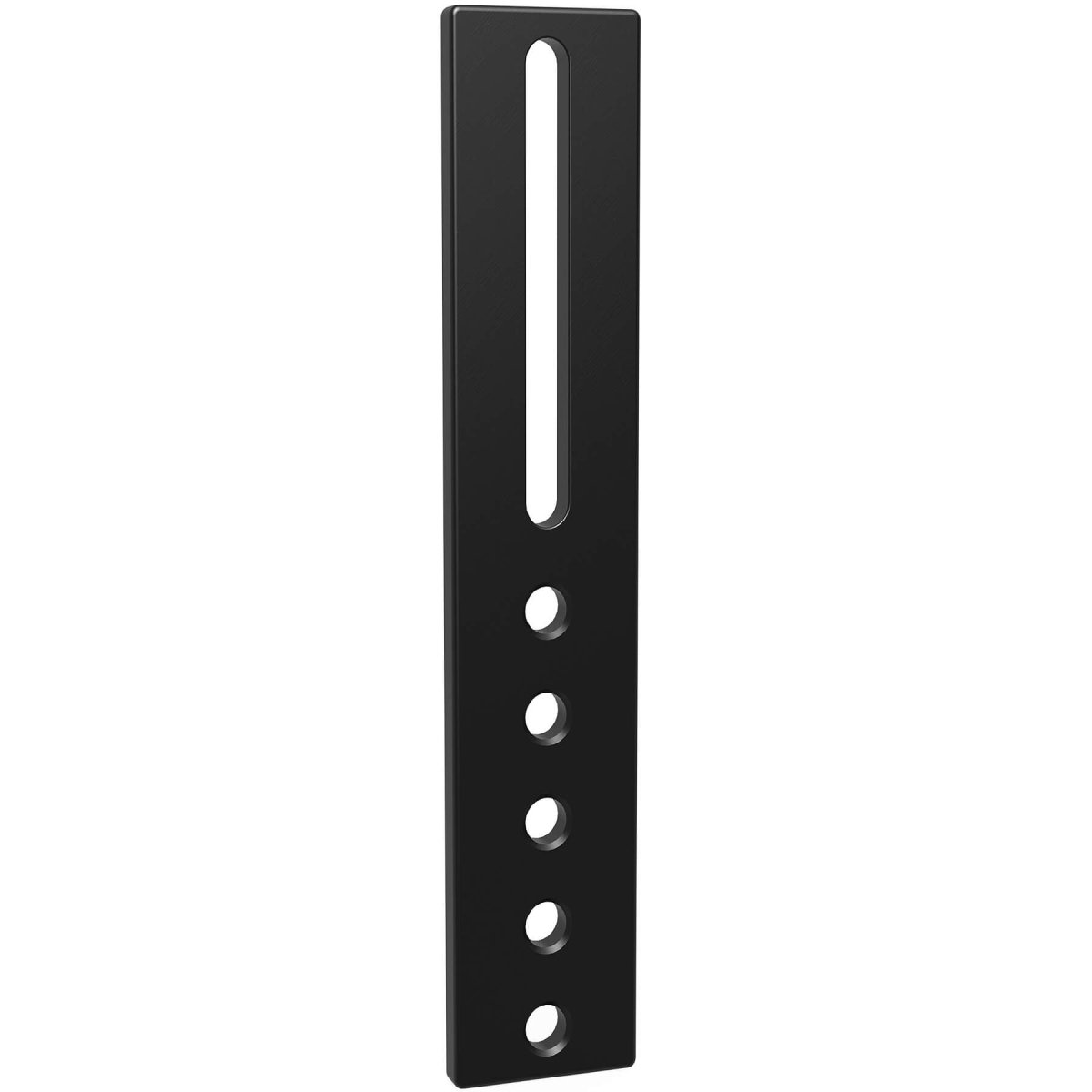

The Siegmund Universal Stop 500 S is engineered for precise positioning and secure clamping of large workpieces on Siegmund System 22 Metric Series tables. Combining an elongated slot with multiple system boreholes, it offers a 0–200mm (0–7.87" Inches) adjustment range for both fixed and variable setups. Its extended length and robust plasma-nitrided steel construction make it ideal for heavy-duty fabrication, ensuring accuracy and long-term durability under load.
- Provides a wide 0–200mm adjustable range for large workpieces.
- Multiple boreholes enable both fixed and variable fixturing.
- Constructed from plasma-nitrided steel for superior wear resistance.
- Provides a rigid, stable reference for alignment and positioning.
- Precision-ground surface ensures consistent, repeatable setups.
- Optimized for strength, rigidity, and long service life in demanding environments.
Key Features:
- Extended 500mm length for large-scale component positioning.
- Elongated slot allows fast, precise linear adjustments.
- Nitrided surface provides exceptional hardness and corrosion protection.
- Multiple system boreholes expand fixturing possibilities.
- Compatible with all Siegmund System 22 Metric Series accessories.
Specifications:
- Item No.: 2-220430.N
- Series: Siegmund System 22 Metric Series
- Length: 500mm (19.69" Inches)
- Width: 100mm (3.94" Inches)
- Material Thickness: 18mm (0.71" Inches)
- Adjusting Range: 200mm (7.87" Inches)
- Weight: 13.25 lbs. (6.01 kg.)
- Material: Plasma Nitrided Steel
- Finish: Burnished / Nitrided Hardened Surface
Common Uses:

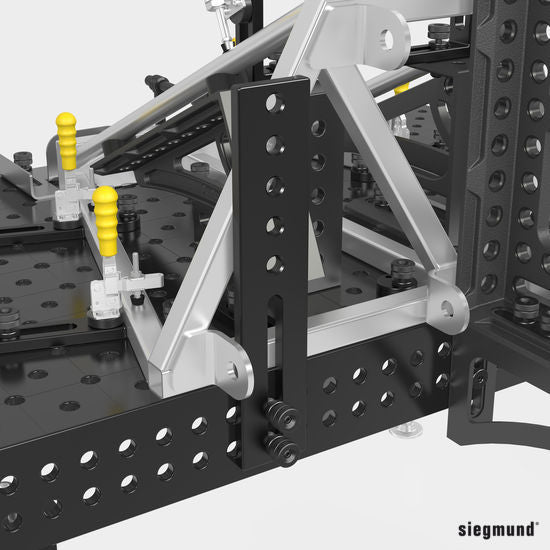

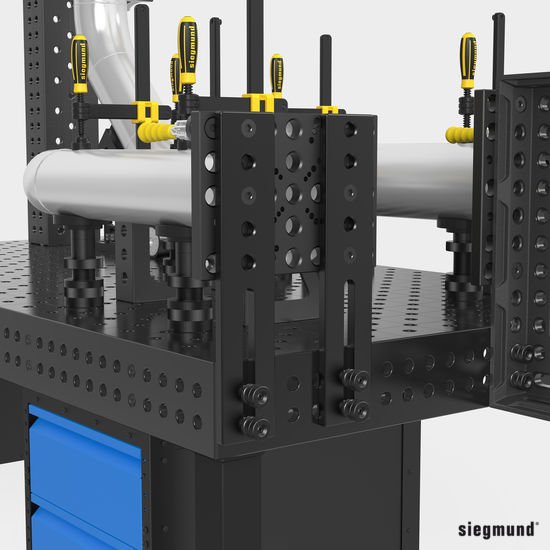

The Universal Stop 500 S is designed for positioning and securing large or heavy components on Siegmund System 22 welding tables. It offers both fixed and adjustable clamping configurations through its elongated slot and multiple boreholes, providing flexibility for complex weldments and large-scale assemblies where precision and rigidity are critical.
