2-220511: Fast Clamping Bolt without Double Slot (Burnished)

Manufacturer: Siegmund
Part No. (SKU): 2-220511
Current Availability in the USA: 179 In Stock
Series: 22mm Welding Table Accessories
$56
$78
$56
Subtotal: $56
Earn 1 Point on this purchase. Learn more
10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

2 - 220511: Fast Clamping Bolt without Double Slot (Burnished) - 22mm Welding Table Accessories by Siegmund - The Flattest, Most Reliable Welding Tables & Fixturing Accessories in the World

Manufacturer: Siegmund

2-220511: Fast Clamping Bolt without Double Slot (Burnished)

$78 $56

Manufacturer: Siegmund

2-220511: Fast Clamping Bolt without Double Slot (Burnished)

$78 $56

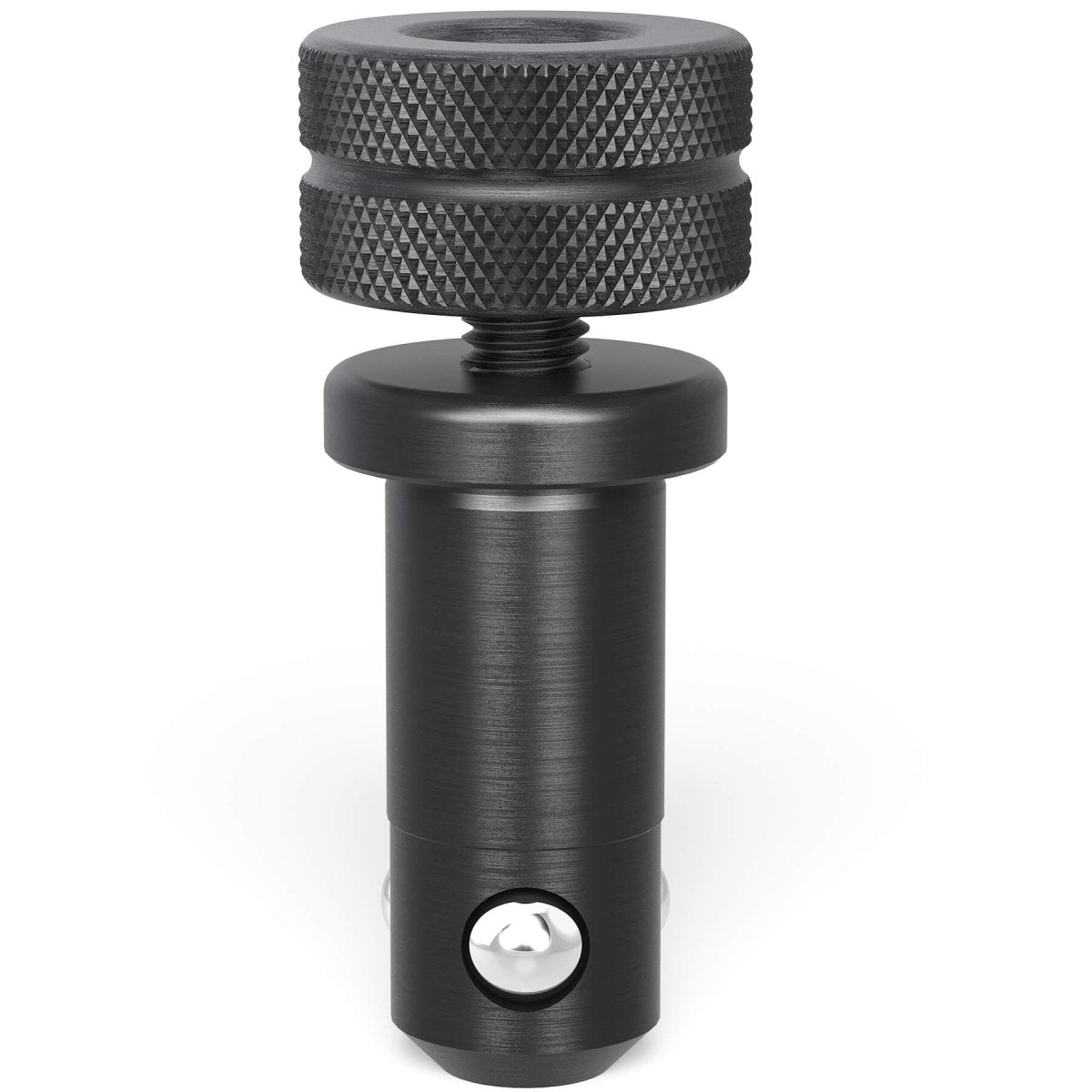

The Siegmund Fast Clamping Bolt without Double Slot (Burnished) For System 22 Welding Tables comes without the slot for O-rings. This ensures a smooth surface of the bolt body. The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twist-lock is the ideal connecting element between Siegmund components.

Note: This bolt CANNOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.




Specs and Features:
- Item No. 2-220511
- For Clamping 2 Components
‐ Burnished
‐ With Screw Top
‐ With Hexagon Socket (Size 5)
- Length 83 mm (3.27")
- Diameter 22 mm (0.87")
- Shearing Force: 130 kN
- Tightening Torque Steel: 15 Nm
- Tightening Torque Aluminum: 6 Nm
- Tensile Force: 15 kN
- Weight 0.27 lbs. (0.60")
