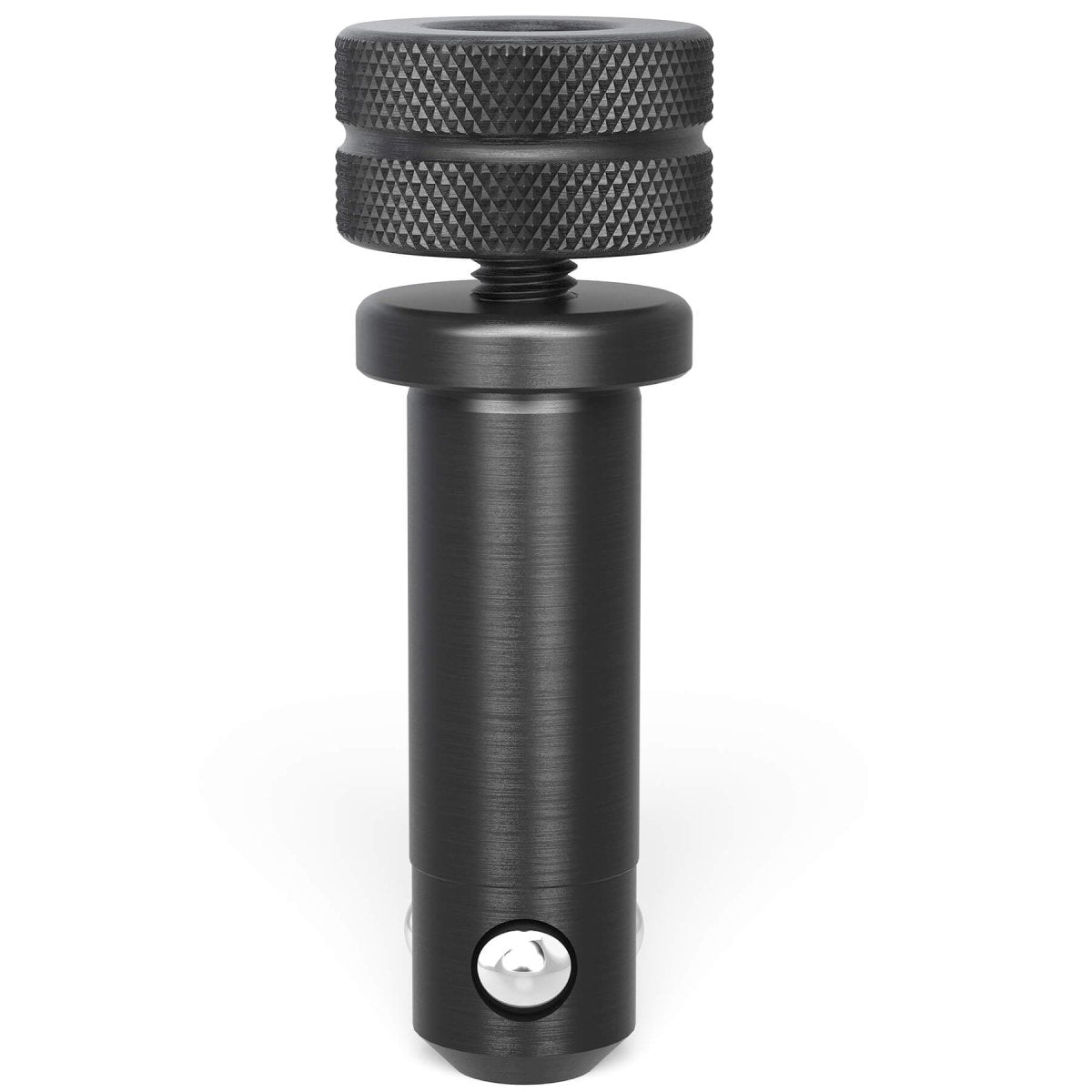

The Siegmund Fast Clamping Bolt without Slot Triple Burnished (2-220513) is designed for quick, reliable, and high-strength fastening between Siegmund System 22 components. Its smooth, O-ring-free surface ensures effortless operation and precise alignment, while the triple burnished finish enhances corrosion resistance and extends service life.
- This bolt provides an optimal solution for clamping three components together in modular welding, assembly, or inspection setups. Equipped with a twistlock mechanism and a knurled screw top for secure grip, it delivers both speed and precision in demanding industrial applications.
- Crafted from hardened, triple burnished steel for superior durability and wear protection.
- Smooth body ensures reduced friction and easy insertion.
- Features a Size 5 hex socket for precise torque control.
- Ideal for applications where accuracy, speed, and reliability are critical.
Key Features:
- Smooth bolt surface with no O-ring slot for consistent, clean operation.
- Twistlock engagement for rapid setup and release.
- Designed to clamp three components securely in System 22 setups.
- Rated for up to 130 kN (29,225.9 lbf.) of shearing force.
- Not suitable for connecting tables or U-shaped squares.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 101mm (3.98" Inches)
- Weight: 0.71 lbs. (0.32 kg.)
- Shearing Force: 130 kN (29,225.9 lbf.)
- Tightening Torque Steel: 15 Nm (11.1 lbf-ft)
- Tightening Torque Aluminum: 6 Nm (4.4 lbf-ft)
- Tensile Force Steel: 15 kN (3,372.6 lbf.)
- Material: Hardened, Triple Burnished Steel
Common Uses:
The Siegmund 2-220513 Fast Clamping Bolt without Slot Triple Burnished is an essential fastening solution for professionals working with Siegmund System 22 tables and accessories. Its smooth, slot-free design and burnished finish make it ideal for fast, repeatable connections without wear or debris buildup — perfect for precision welding, fixturing, and assembly tasks.
