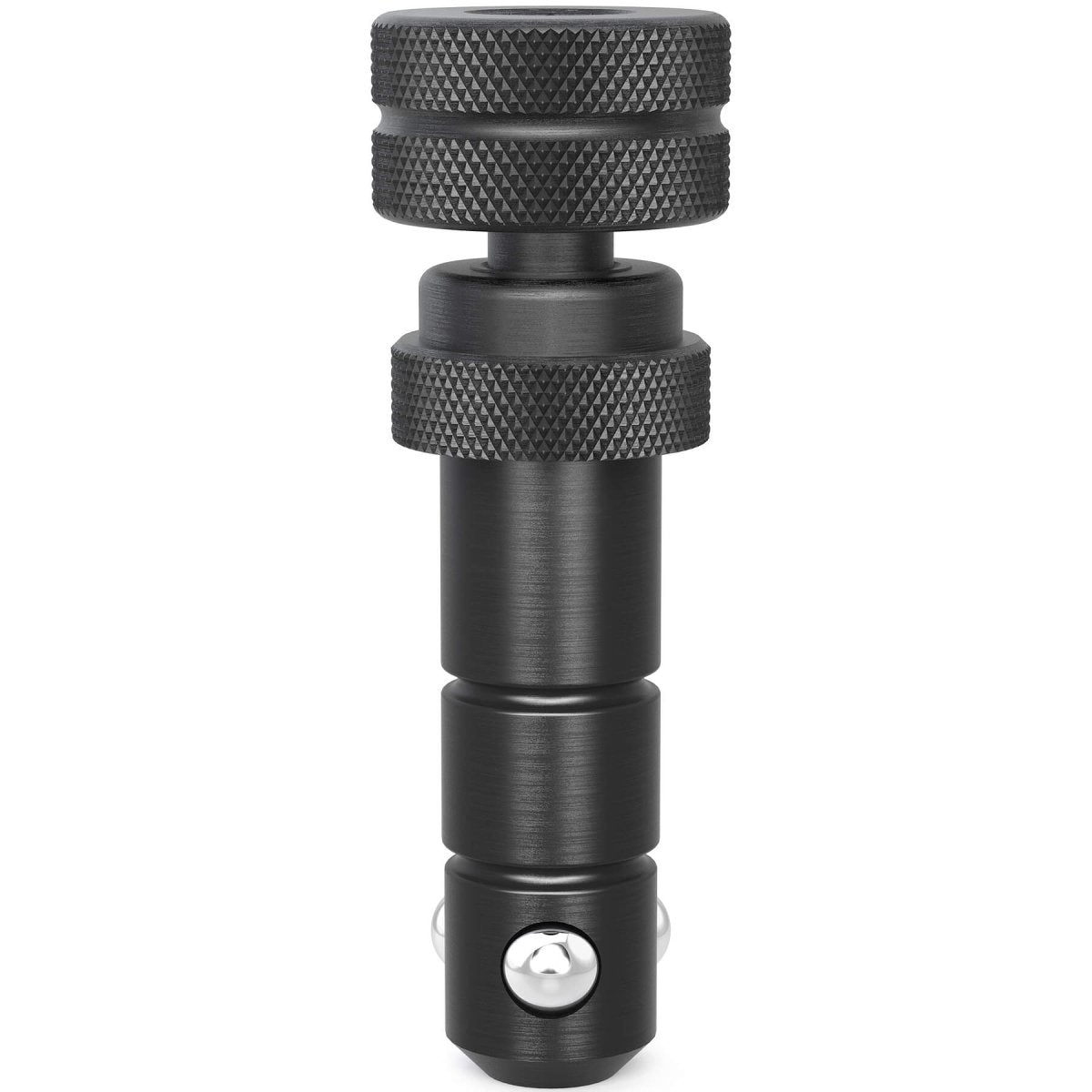

The Siegmund 2-220533: Long, Comfort Universal Bolt (Burnished) is perfect connection element for Siegmund elements. It is used when elements of different material thickness are being interconnected. The clamping range of the short Universal Bolt is 33mm to 39mm. The long Universal Bolt has a clamping range of 51mm to 57mm.
The large balls shift the center of pressure towards the outside, and prevent a displacement of the material due to low surface pressure, when there are high clamping forces in the direction of the bore hole. The Universal Bolt is clamped with the integrated handwheel or with a Allen Key 14 (Item No. 280854). Clamping torque dependent on table type.
NOTE: This Bolt is NOT approved for combining tables and U-shaped squares!
Specs and Features:
- Item No. 2-220533
- For Clamping 3 Siegmund Components
- with Hexagon Socket (Size 14)
- Length: 111mm (4.37'')
- Diameter Ø: 22mm (0.86'')
- Shearing Force: 130kN
- Tightening Torque Steel: 15Nm
- Tightening Torque Aluminum: 6Nm
- Tensile Force: 15kN
- Weight: 0.93 Ibs.
