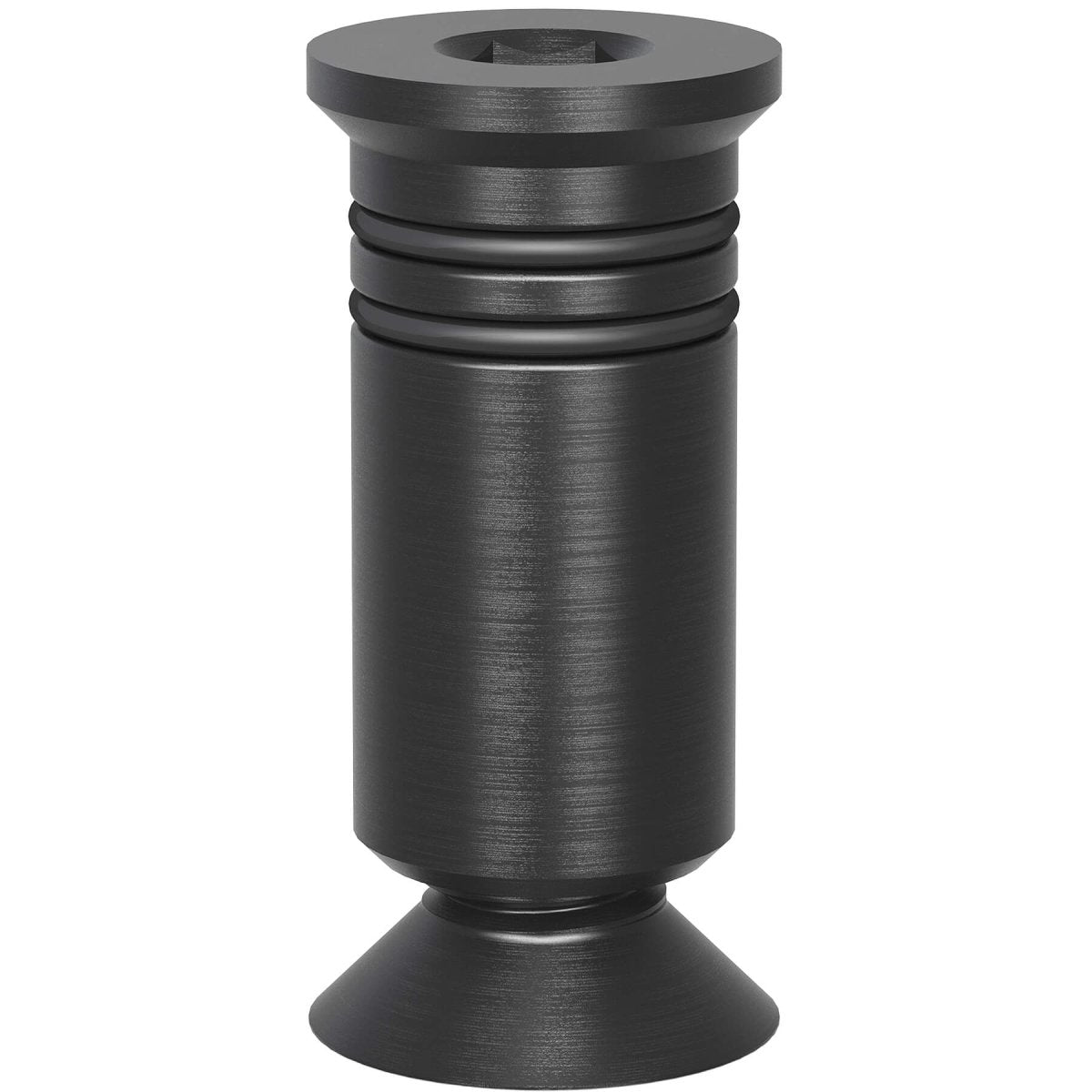

2-220561: Long Connecting Bolt (Burnished)
- Product SKU: 2-220561
- Category: System 22mm Metric Series Welding Tables and Fixturing Accessories
The Siegmund Long Burnished Connecting Bolt was especially designed as a fixed long-term connection of 3 large Siegmund Elements, e.g. tables or U-shaped squares.
The countersunk hexagon socket and the ability of the clamping bolt to center itself, enable easy assembly. The flat head and the flat bolt contain a hexagon socket for clamping. The connecting bolt provides a sturdy screw connection. The Connecting Bolt should not be used in oblong holes.
Specs and Features:
- Item No. 2-220561
- Burnished
- For Connecting 3 Large Siegmund Components
- With Hexagon Socket
- Length: 54mm (2.12'')
- Diameter: 22mm (0.86'')
- Shearing Force: 120kN
- Tightening Torque Steel: 15Nm
- Tensile Force: 6kN
- Weight: 0.26 Ibs.
