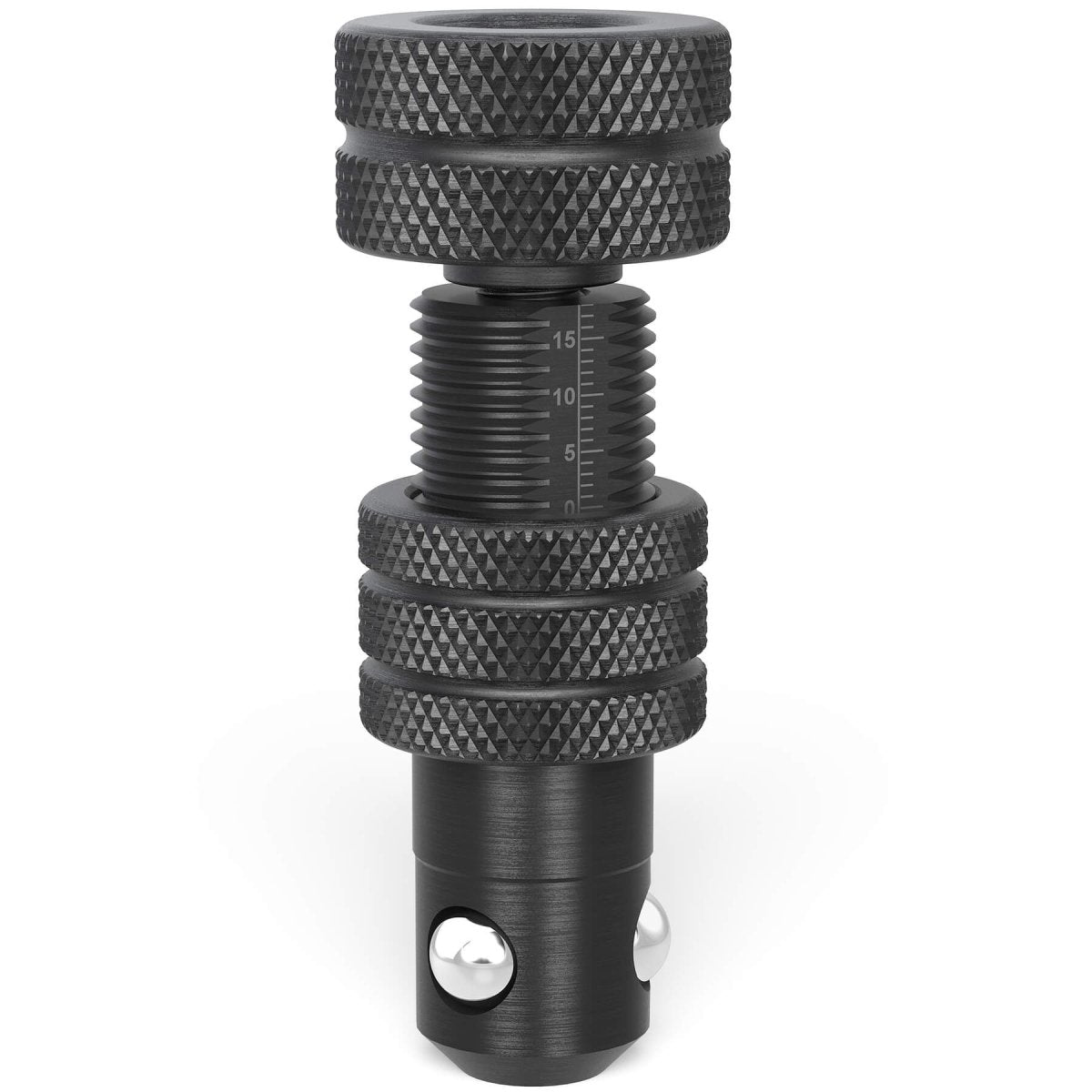

2-220571: Short Adjustable Fast Clamping Bolt without Slot (Burnished)
2-220571: Short Adjustable Fast Clamping Bolt without Slot (Burnished)
- Product SKU: 2-220571
- Category: System 22mm Metric Series Welding Tables and Fixturing Accessories
Availability:
In Stock
$73
$91
Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.
The clamping height is individually adjusted by a rotating a knurled thimble ring.
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!
Suitable for aluminum profiles.
Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
Specs and Features:
- Item No. 2-220571
- Burnished
- Length: 95mm (3.74")
- Weight: 0.88 lbs.
- Diameter: 22 mm (0.87")
- Shearing Force: 130 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 15 Nm
- Tensile Force: 15 kN
