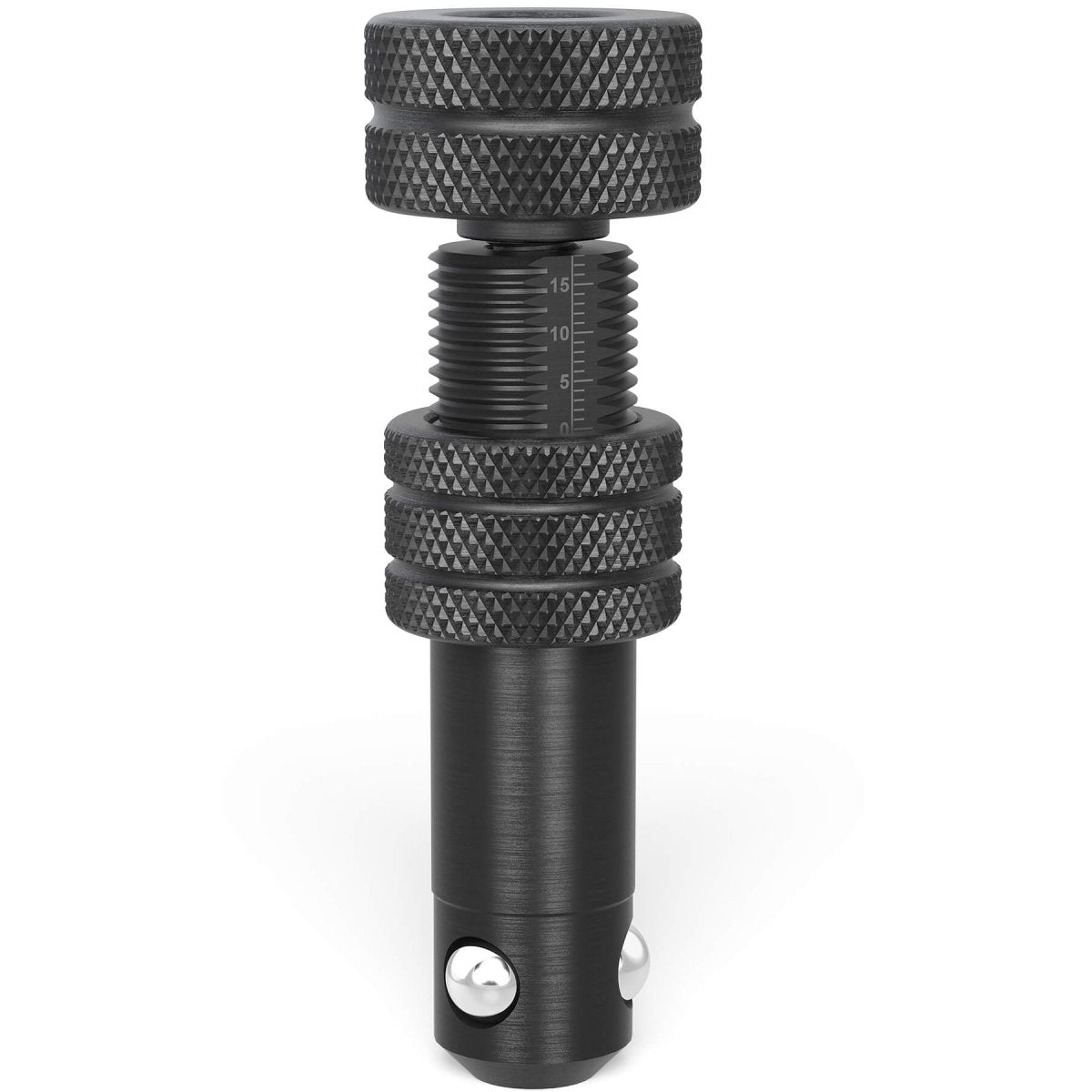

2-220573: Long, Adjustable Fast Clamping Bolt without Slot (Burnished)
- Product SKU: 2-220573
- Category: System 22mm Metric Series Welding Tables and Fixturing Accessories
Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.
The clamping height is individually adjusted by a rotating a knurled thimble ring.
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!
Suitable for aluminum profiles.
Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
Specs and Features:
- Item No. 2-220573
- For Clamping 3 Siegmund Components
- Clamping Dimensions: 36-54mm (1.41"-2.12")
- with Screw Top
- with Hexagon Socket (Size 5)
- Length: 113mm (4.44")
- Diameter: 22mm (0.87")
- Shearing Force: 130 kN
- Tightening Torque Steel: 15 Nm
- Tightening Torque Aluminum: 6 Nm
- Tensile Force: 15 kN
- Weight: 1 lbs.
