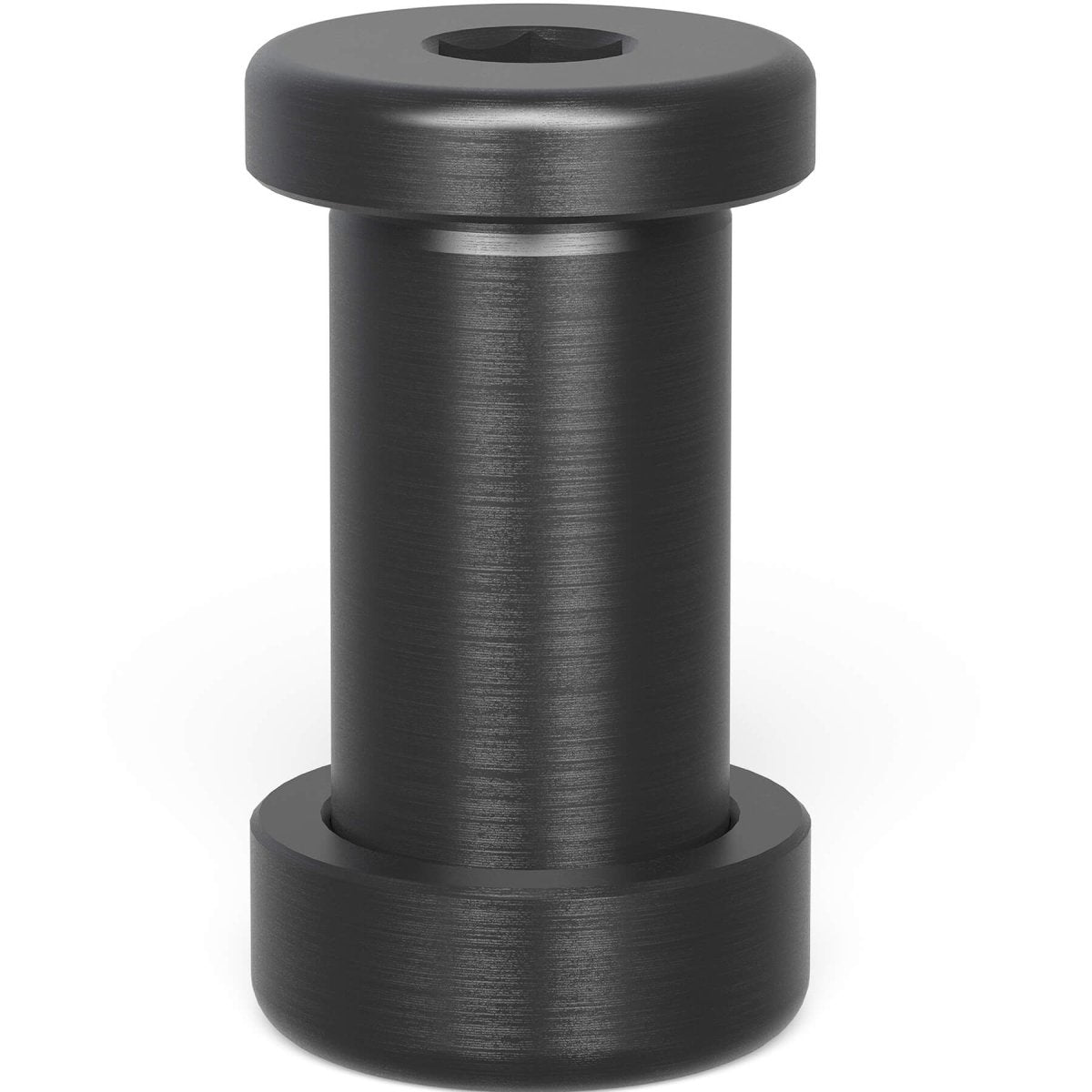

The bolt head is equipped with a 10 mm hexagonal bit and the special screw is equipped with a 5 mm hexagonal bit.
This connecting bolt is also suitable for use in elongated holes.
Especially suitable for aluminum.
Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
Specs and Features:
- Item No. 2-220583
- For Connecting 2 Siegmund Components
- With Hexagon Socket (At The Top Size 10 / At The Bottom Size 5)
- Length: 55 mm (2.17")
- Diameter: 22 mm (.63")
- Shearing Force: 130 kN
- Tightening Torque Steel: 20 Nm
- Tightening Torque Aluminum: 20 Nm
- Tensile Force: 15 kN
- Weight: 0.50 lbs. (0.2kg)
