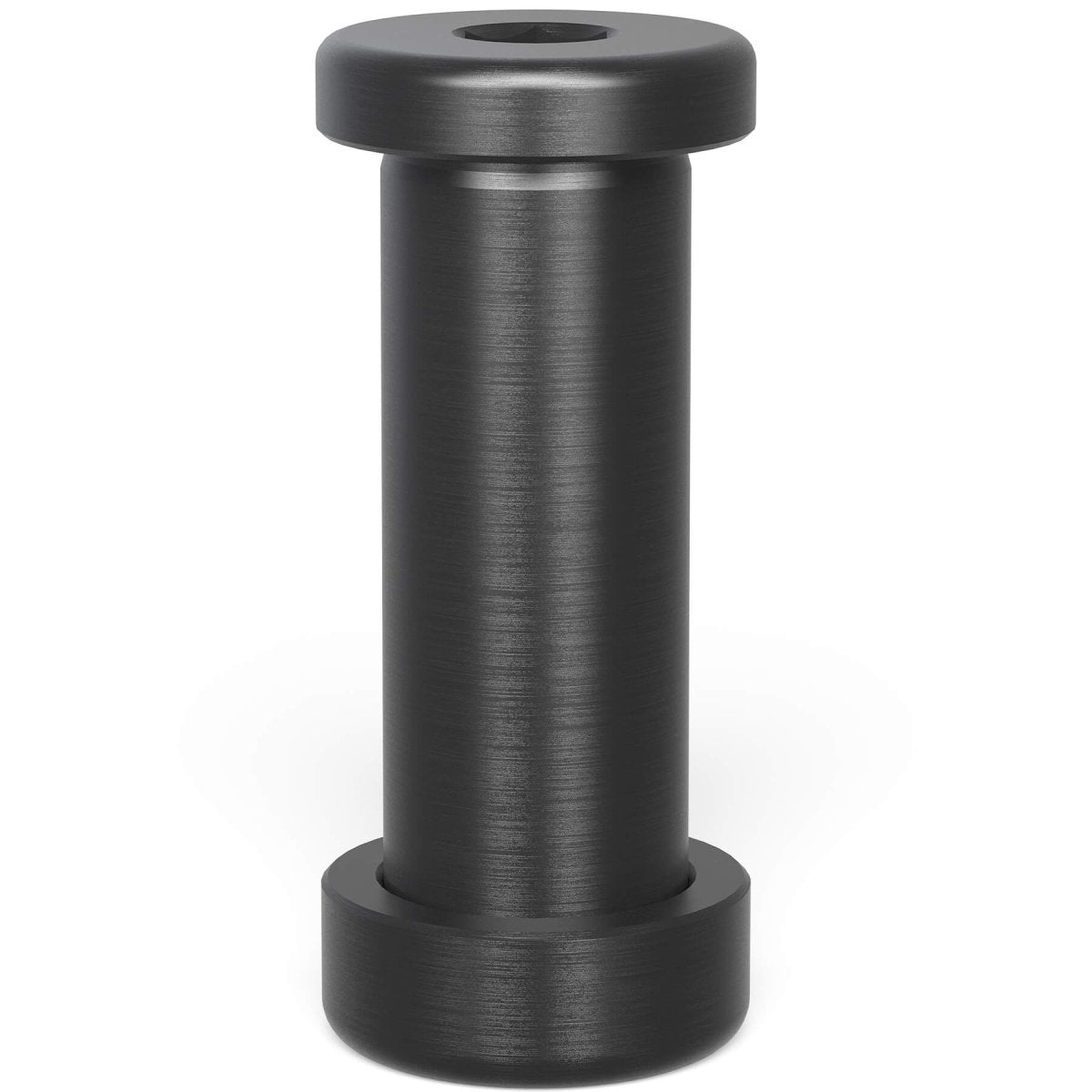

2-220584: Triple Collar Connecting Bolt (Burnished)

Manufacturer: Siegmund
Part No. (SKU): 2-2200584
Current Availability in the USA: Out Of Stock
Series: 22mm Welding Table Accessories
$36
$51
$36
Subtotal: $36

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

The Triple Collar Connecting Bolt (Burnished) For System 22 Welding Tables was specially designed to serve as a fixed long-term connection between large Siegmund elements, e.g. tables, U-squares and aluminum profiles. For a better fitting when connecting aluminum profiles, a special flat screw is used for clamping.

The bolt head is equipped with a 10 mm hexagonal bit and the special screw is equipped with a 5 mm hexagonal bit. This connecting bolt is also suitable for use in elongated holes.

Especially suitable for aluminum.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.

Specs and Features:
- Item No. 2-220584
- Burnished
- For Connecting 3 Siegmund Components
- With Hexagon Socket (At The Top Size 10 / At The Bottom Size 5)
- Length: 73 mm (2.87")
- Diameter: 22 mm (.87")
- Shearing Force: 130 kN
- Tightening Torque Steel: 20 Nm
- Tightening Torque Aluminum: 20 Nm
- Tensile Force: 15 kN
- Weight: 0.60 lbs. (0.27kg)
