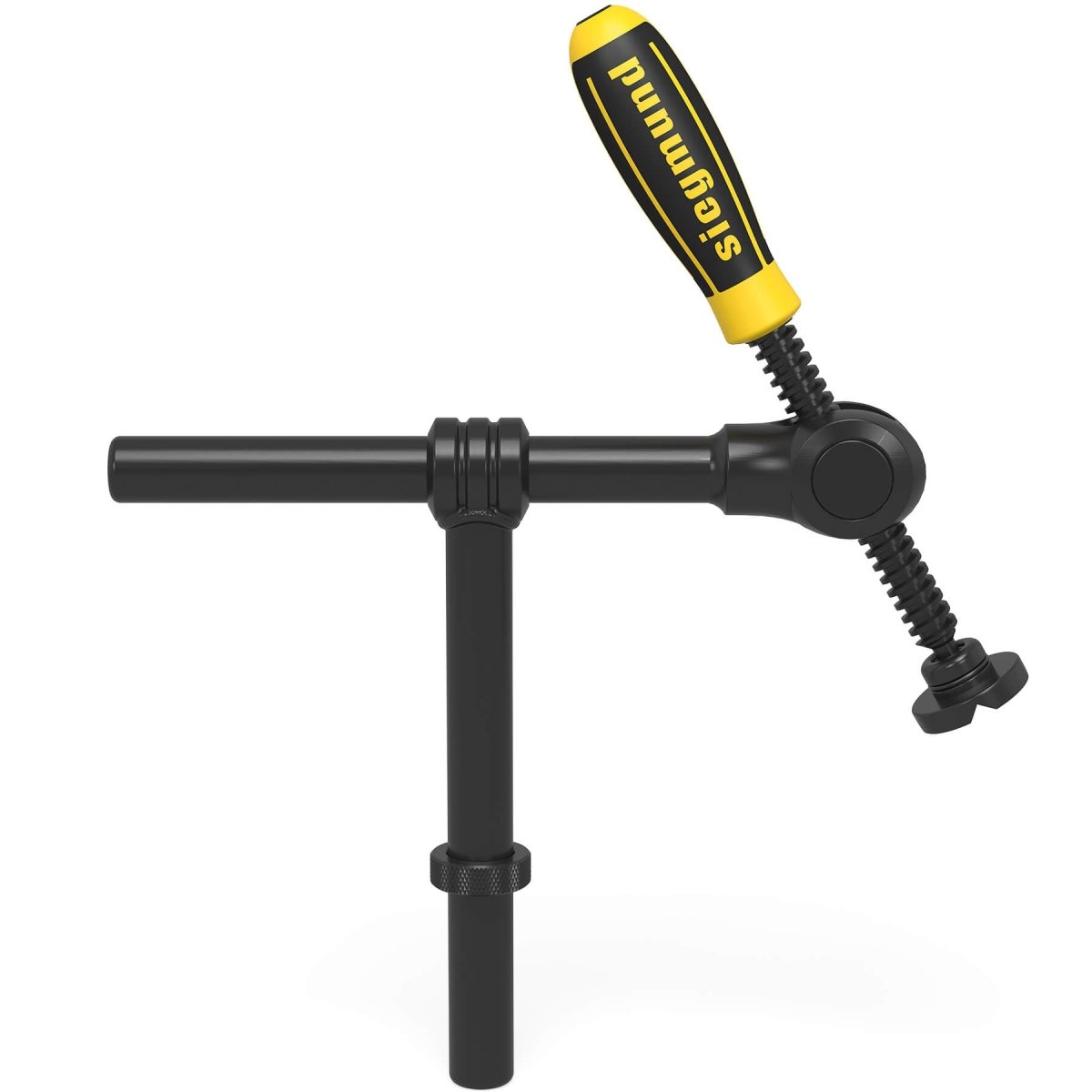

2-220604.1: Universal Basic Pipe Clamp (Burnished)
- Product SKU: 2-220604.1
- Category: System 22mm Metric Series Welding Tables and Fixturing Accessories
The Siegmund Universal Pipe Clamp, with swiveling Arbor enables flexible clamping at a + / - 42° degree angle. This Pipe Clamp combines the advantages of conventional 45° or 90° clamps. It can be used at an angle as well as straight, resulting in additional clamping options and a more variable clamping range.
The horizontal round tube with a length of 200mm is fully adjustable and creates, combined with the swiveling arbor, a variable clamping range. The length of the vertical pipe is 250mm.
A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order replacement parts individually.
To integrate the vertical pipe into the system bore holes, an adjusting ring is used (Item No. 2-220653). As a standard feature, the Round Pipe Clamp Universal is equipped with a 135mm threaded arbor.
Specs and Features:
- Item No. 2-220604.1
- Maximum Load: 1.4 kN
- Width: 265mm (10.4'')
- Height: 210mm (8.26'')
- Weight: 4.2 Ibs. (1.91kg)
