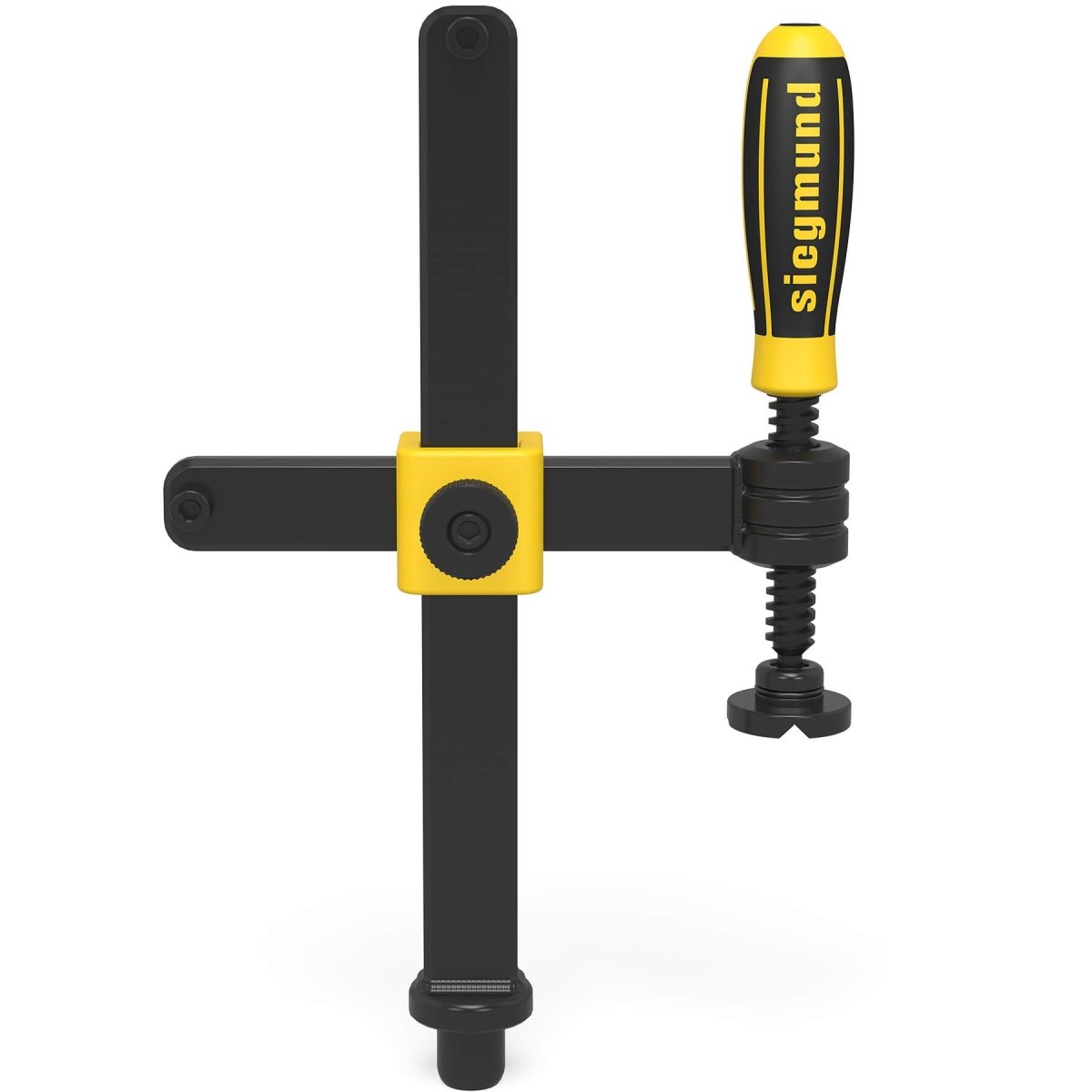

The Siegmund Professional Screw Clamp enables fast, powerful and exact clamping with a variety of welding elements. Achieve maximum efficiency through time-saving, quick adjustments and effortless disassembly. For individual modification, we offer special lengths of horizontal and vertical bars. The dimensions of the horizontal bar are 30x10mm. The dimensions of the vertical bar are 30x14mm. Additionally, the vertical bar is reinforced.
A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order spare parts individually.
With the new handwheel on the cast iron cross, the height can be adjusted within seconds.
Due to the hexagon socket insert, located at the top of the handle, the force of the clamp can be adjusted precisely by a torque-limiting wrench.
Specs and Features:
- Item No. 2-220610.1
- Ball Diameter Spindle: 10mm (0.39")
- Maximum Load: 5 kN
- Width: 220mm (8.66'')
- Height: 300mm (11.81'')
- Weight: 5.95 Ibs.
