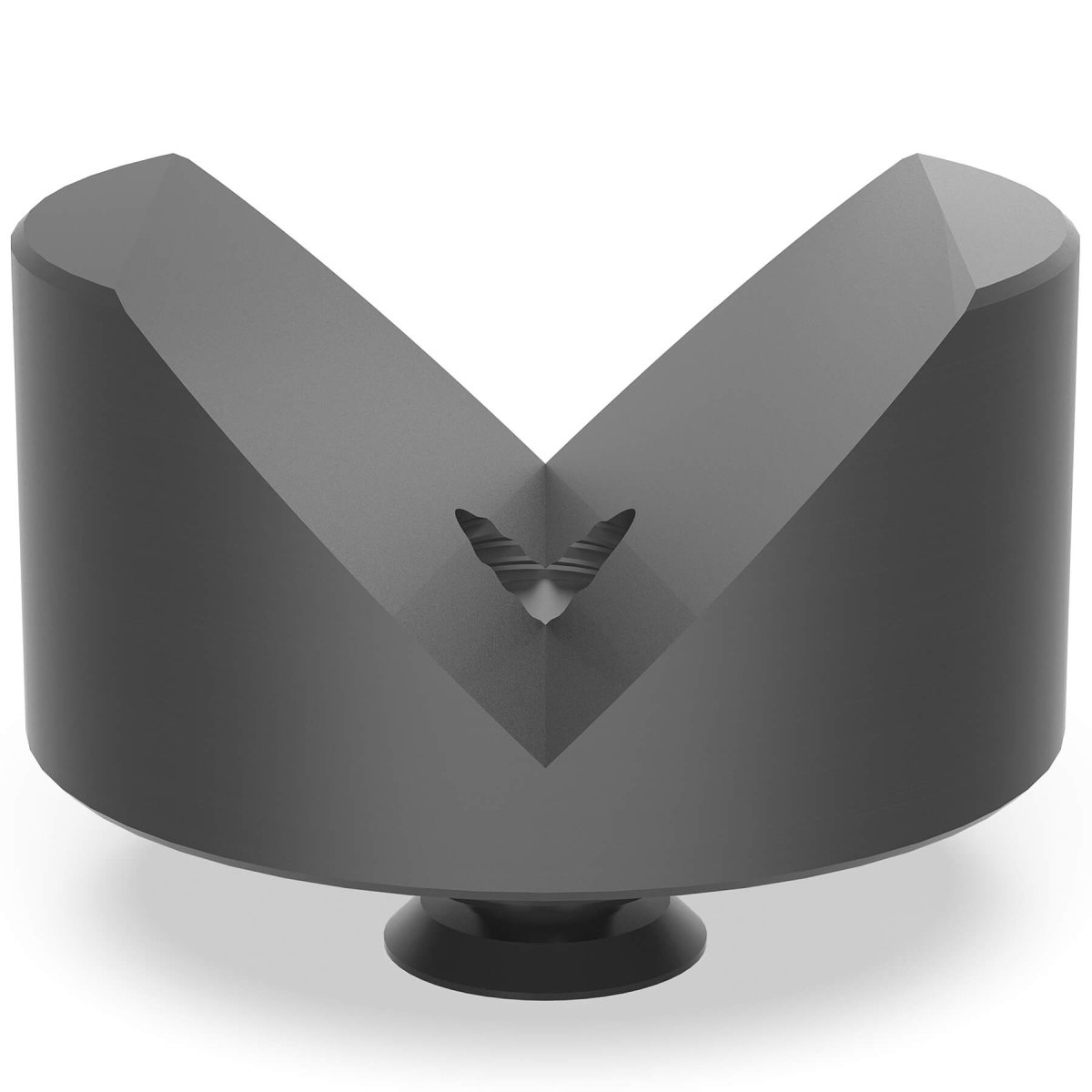

The Siegmund 2-220647.1.PA: 80mm Ø, 90° Prism with Screwed-In Collar (Polyamide) creates a solid support surface for pipes with diameters up to 100mm, as well as for all rectangular pipes.
The prism with screwed-in collar can be fastened in the boreholes and securely fixed using the M10 countersunk screw (Item No. 2-220649.0). For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.
Polyamide Prisms are used for scratch-prone surfaces.
Specs and Features:
- Item No. 2-220647.1.PA
- Height: 40mm (1.57")
- Diameter Ø: 80mm (3.14'')
- Weight: 0.44 Ibs.
