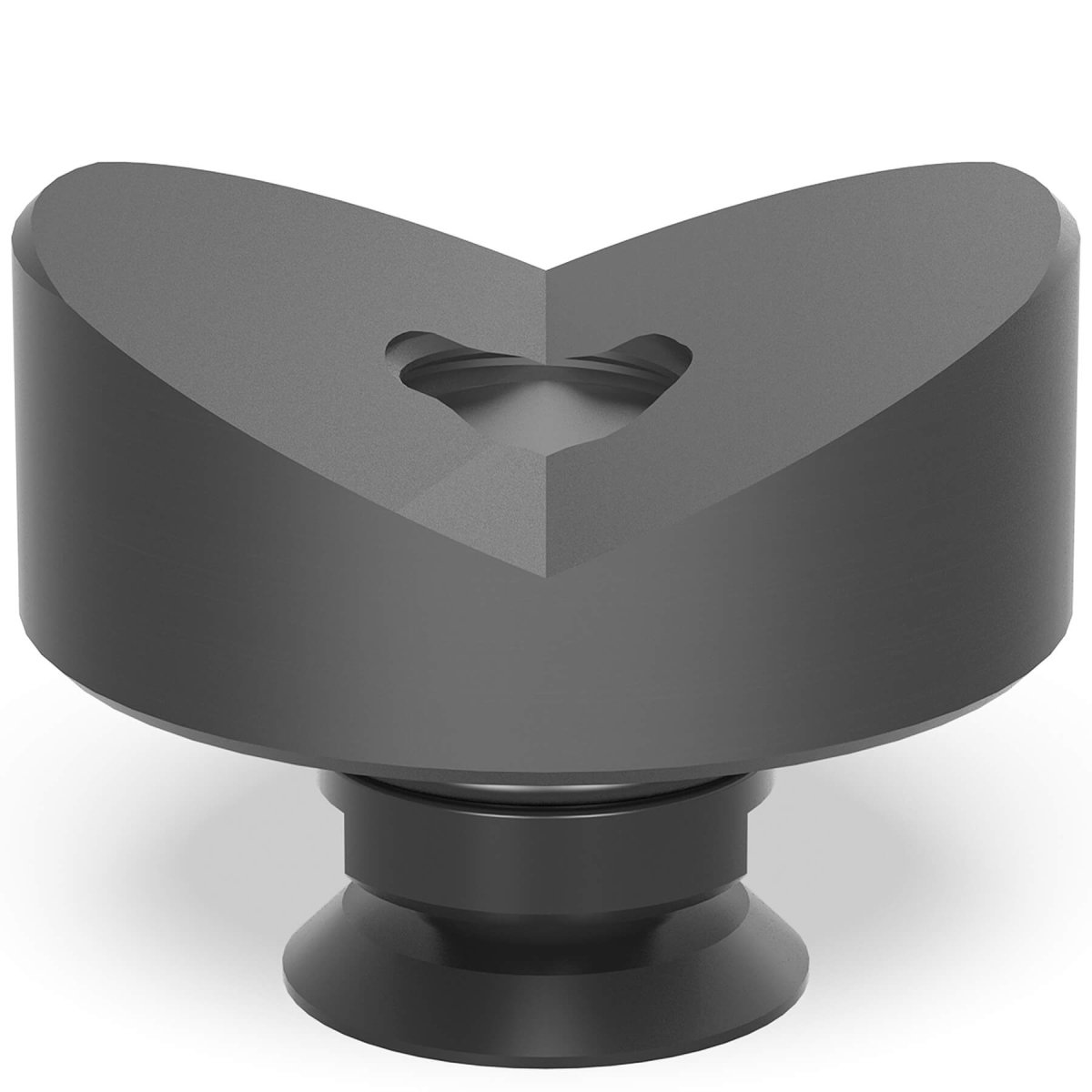

2-220648.1.PA: 50mm Ø, 135° Prism with Screwed-In Collar (Polyamide)
- Product SKU: 2-220648.1.PA
- Category: System 22mm Metric Series Welding Tables and Fixturing Accessories
The Siegmund 2-220648.1.PA: 50mm Ø, 135° Prism with Screwed-In Collar (Polyamide) provides a stable support surface for pipes with a diameter up to 80mm.
The prism with screwed-in collar can be fastened in the boreholes and securely fixed using the M10 countersunk screw (Item No. 220649.0). For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.
Polyamide Prisms are used for scratch-prone surfaces.
Specs and Features:
- Height: 20mm (0.78'')
- Diameter Ø: 50mm (1.96'')
‐ M10 thread for e.g. prism extensions Item No. 2-220649
- Weight: 0.17 Ibs.
