2-220650.PA: Ø 40mm Duo Prism (Polyamide)

2-220650.PA: Ø 40mm Duo Prism (Polyamide)

Availability: Pre-Order
$24 $28
Successful pre-order.Thanks for contacting us!

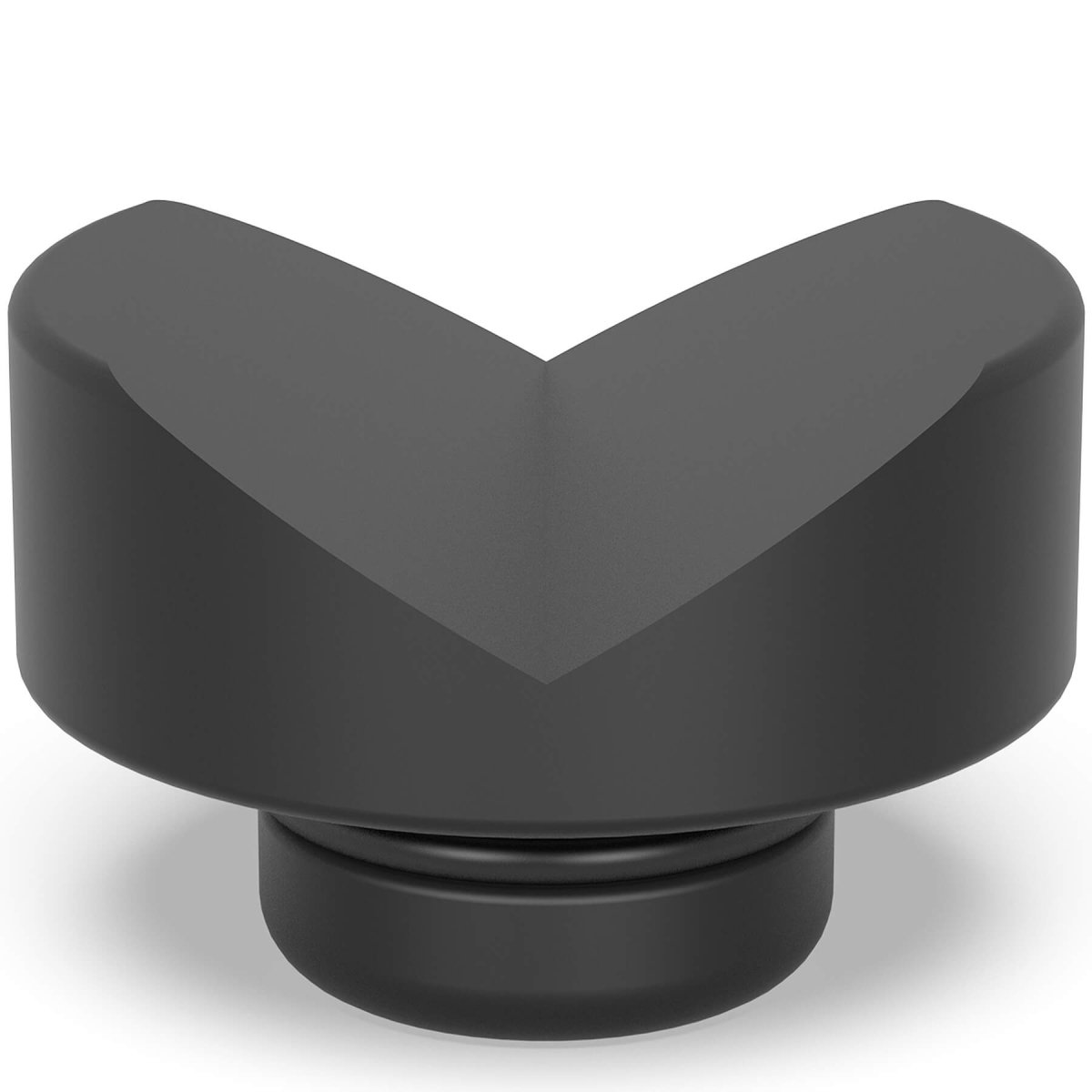

The Siegmund Ø 40mm Duo Prism is compatible with all bore holes and screw clamps of System 22, due to its dual function. The O-ring provides perfect fixing and fitting accuracy. The 120° square creates a stable support surface for all round pipes. The leveled corners of the prism enable working with flat welding parts.

The Polyamide Prism is used for scratch-prone surfaces. Also, the Polyamide Prism is only suitable for use as a prism for screw clamps.

Specs and Features:
- Item No. 2-220650.PA
- Polyamide
- For Arbor with Trapezoid Thread of 16x4mm
- Height: 27mm (1.06'')
- Diameter Ø: 40mm (1.57'')
- Weight: 0.05 Ibs.
