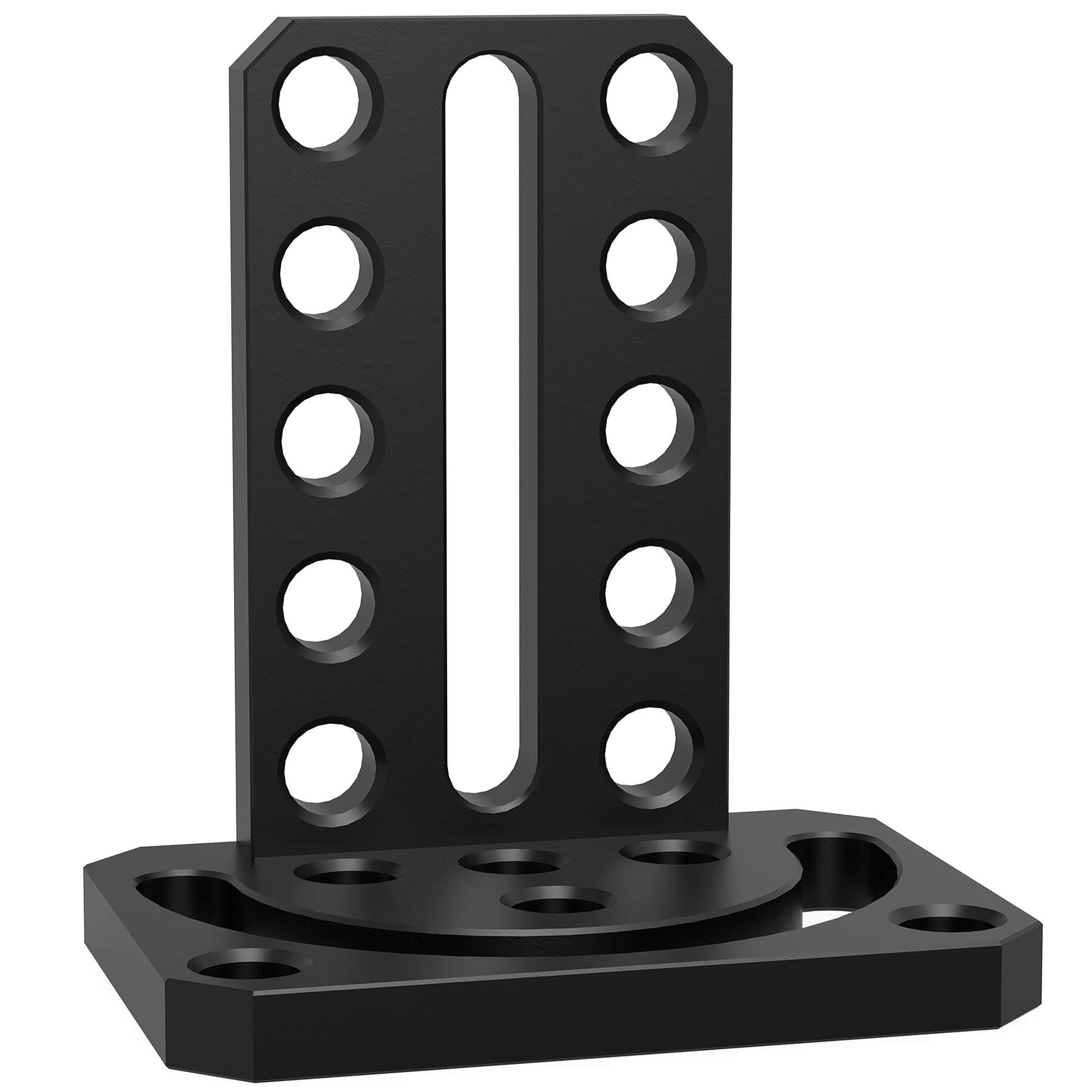

The Siegmund Rotation Angle 275 provides precise, infinitely variable adjustment of clamping elements, giving fabricators the flexibility to work at exact angles with confidence. Its nitrided finish ensures wear resistance and long service life, while dual-bolt fixation locks setups securely in place for consistent accuracy.
- Enables infinitely variable angle adjustment up to 180°.
- Secures setups with two clamping bolts for maximum stability.
- Nitrided surface improves durability and resists wear.
- Provides repeatable precision for complex assemblies.
- Compatible with all Siegmund System 28 Metric Series tables.
Key Features:
- Delivers smooth, accurate angular positioning.
- Ensures secure fixation with dual-bolt locking.
- Protects against wear with plasma nitrided finish.
- Provides long-lasting durability under heavy shop use.
- Works seamlessly with Siegmund System 28 Metric Series.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 180mm (7.09" Inches)
- Width: 250mm (9.84" Inches)
- Height: 275mm (10.83" Inches)
- Weight: 22.49 lbs. (10.2 kg.)
- Surface: Plasma Nitrided
Common Uses:

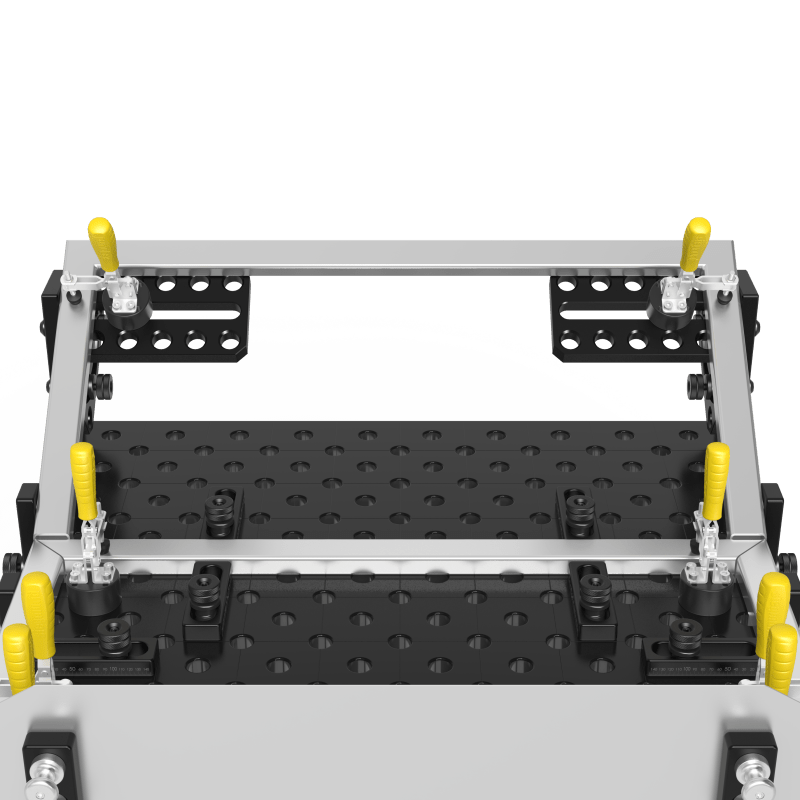

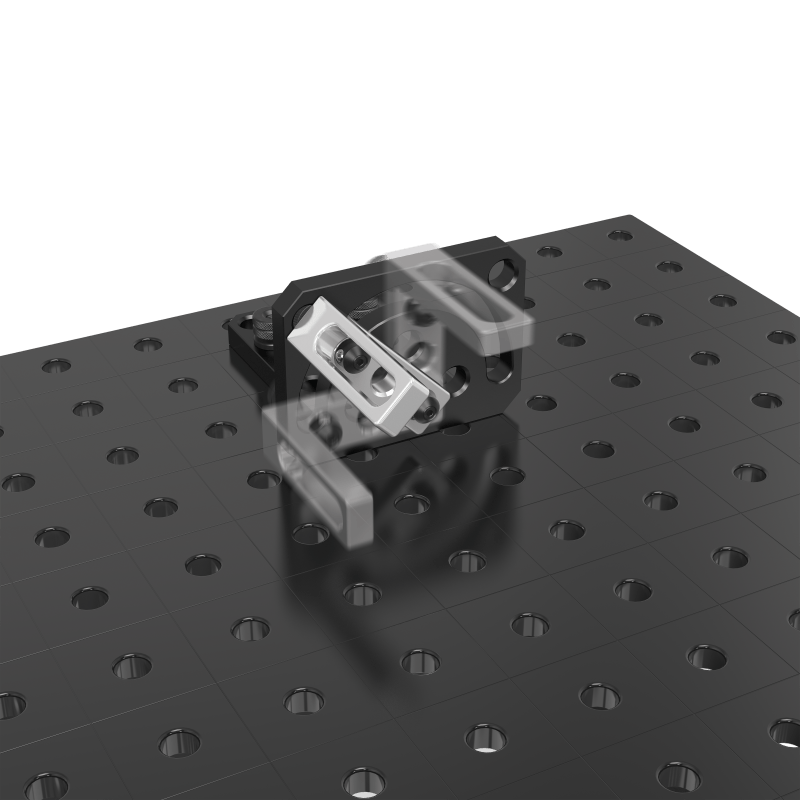

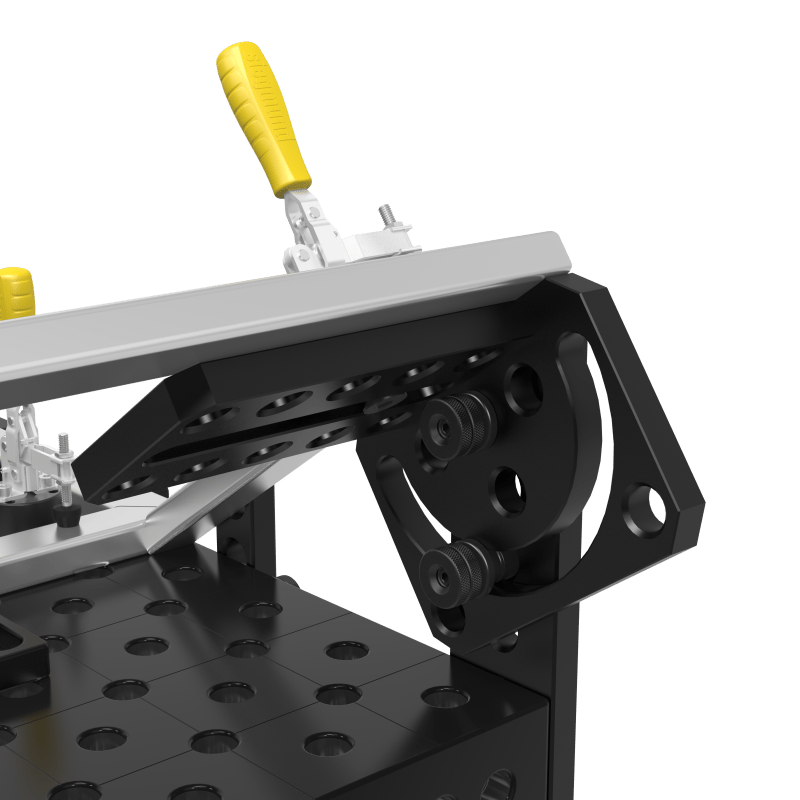

The Siegmund Rotation Angle 275 provides fabricators with the ability to lock clamping elements at any angle within a 180° range. It is used in demanding welding and assembly setups that require adjustable positioning with high precision. Shops rely on its secure dual-bolt fixation to hold angles firmly, ensuring repeatability and reducing rework in production environments.
