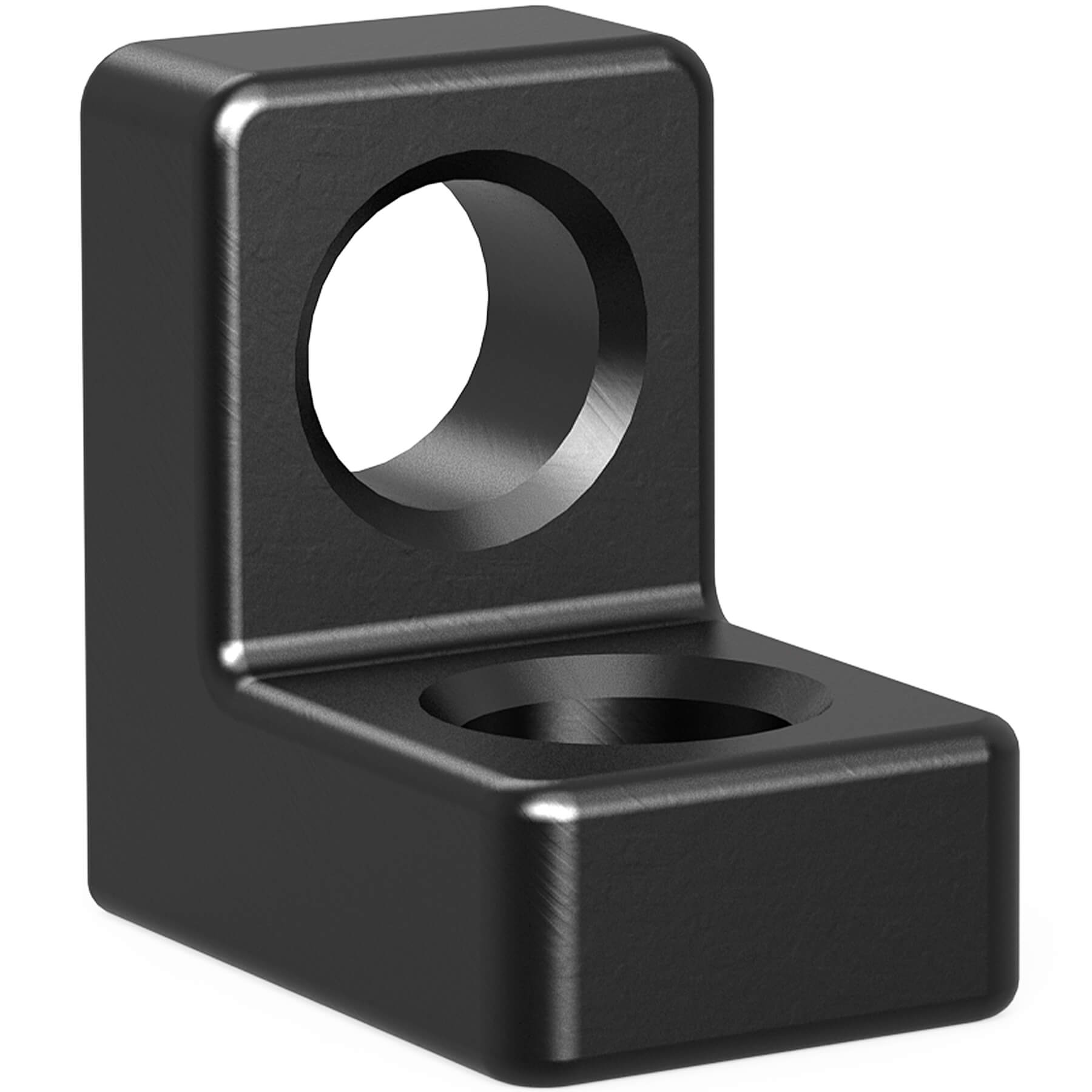

The 75x75mm Stop and Clamping Square L Nitrided serves as a fixed square for accurate alignment of large profiles. Built for durability and precision, it integrates seamlessly with other Siegmund squares for expanded functionality. Its nitrided finish resists wear and weld spatter, ensuring dependable long-term performance.
- Provides stable right-angle alignment for large profiles.
- Compatible with other clamping squares for flexible setups.
- 25mm (0.98" Inches) thickness delivers strength and rigidity.
- Compact 75x75x50mm design saves space while maintaining precision.
- Weighs 2.20 lbs. (1 kg.) for easy handling.
Key Features:
- Delivers secure 90° alignment in compact form.
- Nitrided finish extends service life in demanding environments.
- Strong 25mm (0.98" Inches) build resists deformation.
- Fully compatible with Siegmund System 28 Metric Series tables.
- Integrates with other clamping squares for adjustable support.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 75mm (2.95" Inches)
- Width: 50mm (1.97" Inches)
- Height: 75mm (2.95" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 2.20 lbs. (1 kg.)
Common Uses:

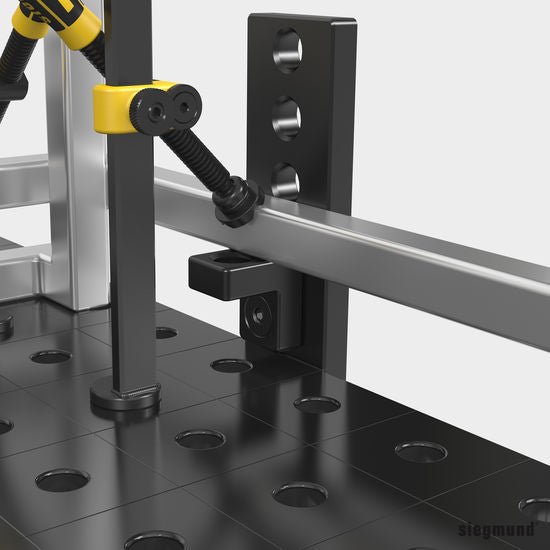

This stop and clamping square provides precise alignment for large workpieces, ensuring stability during welding and assembly. It can also be combined with other Siegmund clamping squares to create height-adjustable supports for flexible fixturing applications.
