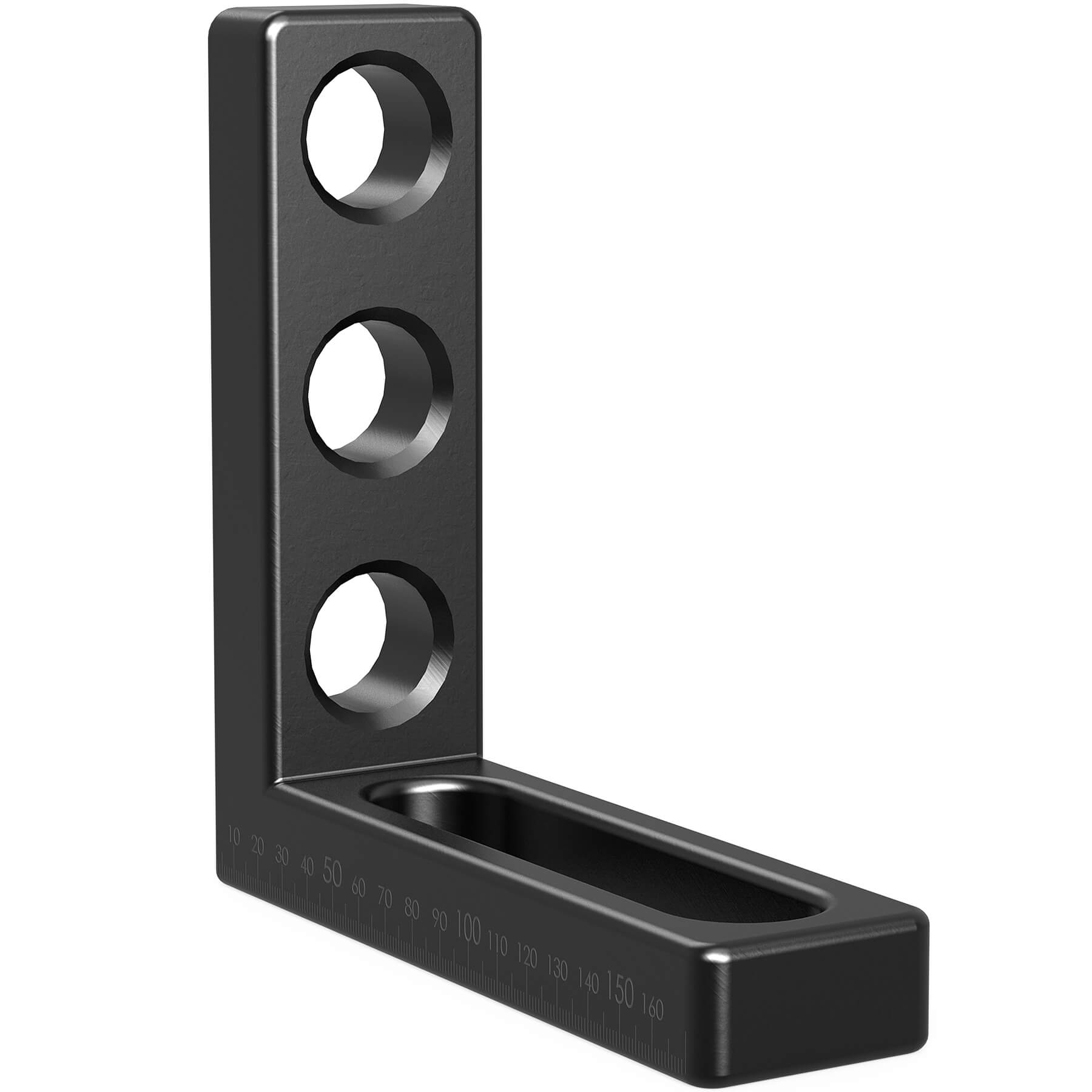

The 175x175mm Stop and Clamping Square L Nitrided provides multifunctional alignment and support for welding and fabrication setups. With a combination of boreholes and an elongated slot, it allows for both fixed positioning and adjustable configurations. Fine scaling on both sides ensures precise repeatability, while the nitrided finish protects against weld spatter, wear, and corrosion.
- Supports fixed and height-adjustable clamping setups.
- Functions as both a square and a stop for large workpieces.
- Elongated slot enables flexible adjustment.
- Fine scaling on both sides provides accurate repeatability.
- 25mm (0.98" Inches) thickness ensures rigidity and strength.
- Weight of 4.30 lbs. (1.95 kg.) balances stability with handling ease.
Key Features:
- Delivers multifunctional use as a square, stop, or adjustable support.
- Elongated slot and boreholes expand setup options.
- Fine scaling ensures consistent, repeatable accuracy.
- Nitrided finish improves resistance to spatter and wear.
- Fully compatible with Siegmund System 28 Metric Series tables.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 175mm (6.89" Inches)
- Width: 50mm (1.97" Inches)
- Height: 175mm (6.89" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 4.30 lbs. (1.95 kg.)
Common Uses:

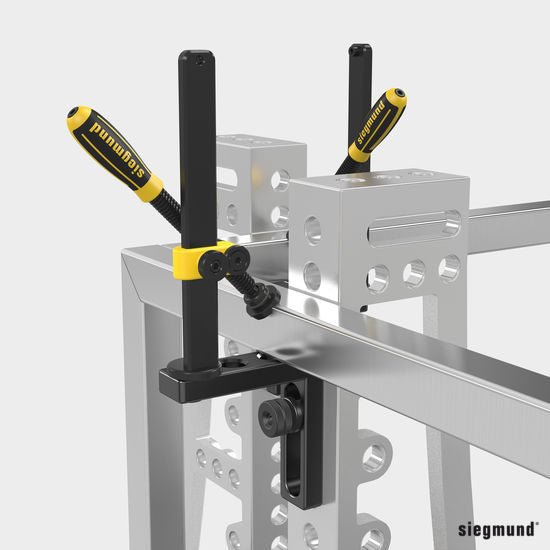

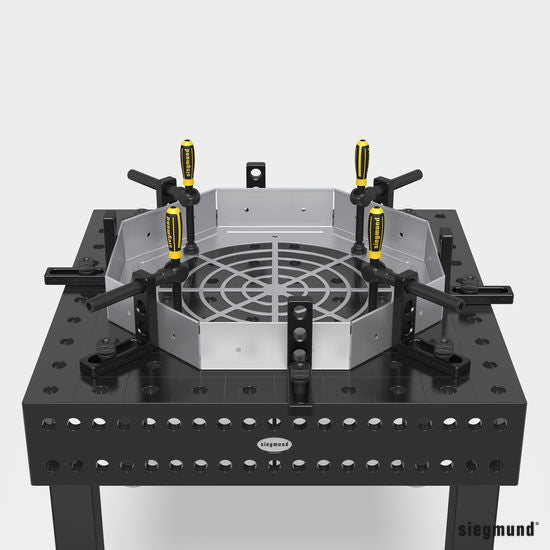

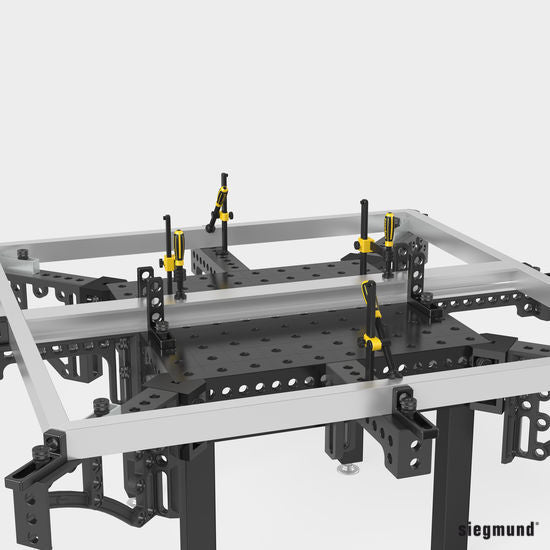

This stop and clamping square is designed for precise right-angle alignment and can also serve as a height-adjustable support when combined with other Siegmund clamping squares. Its combination of boreholes and an elongated slot ensures versatility for welding, fabrication, and assembly of large parts.
