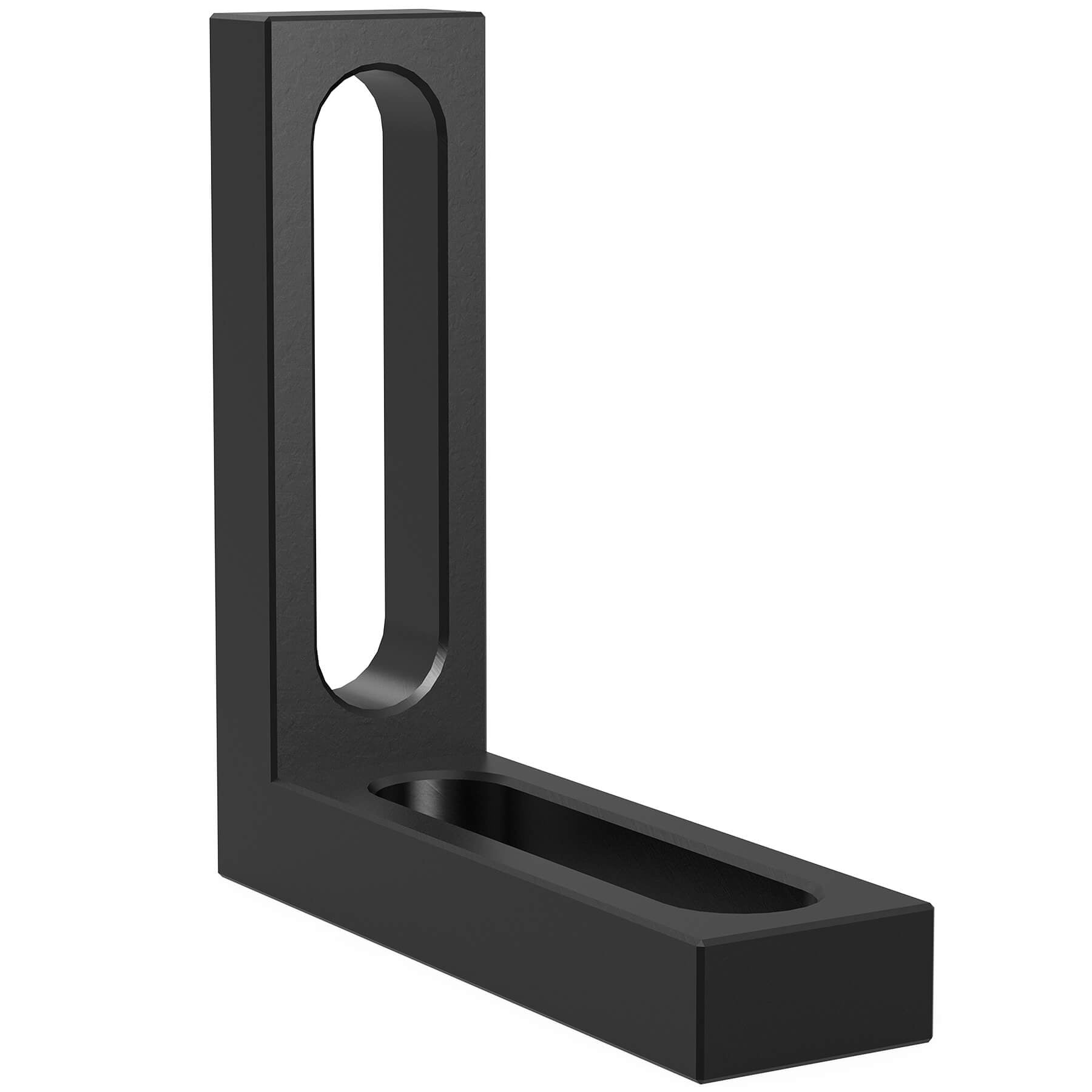

The Siegmund Stop and Clamping Square WL 175mm provides strong, adjustable support for welding and fixturing applications. Its elongated holes allow for a wide range of positioning options, ensuring flexibility during setup. Built with a plasma nitrided surface, it resists wear and delivers long-lasting precision in demanding shop environments.
- It offers reliable right-angle positioning for fixtures and workpieces.
- Two elongated slots increase clamping flexibility in multiple directions.
- The nitrided finish enhances durability and resists weld spatter.
- The square supports repeatable setups with minimal adjustment time.
- Compatible with all Siegmund System 28 Metric Series welding tables.
- Its heavy-duty build ensures secure clamping of large or heavy parts.
Key Features:
- Dual elongated slots provide versatile clamping options.
- Nitrided surface delivers durability and wear resistance.
- Works as a secure right-angle stop for large components.
- Compatible with Siegmund System 28 Metric Series.
- Built for precise, repeatable alignment under heavy shop use.
Specifications:
- Item No.: 2-280111.N
- System: Siegmund System 28 Metric Series
- Length: 175mm (6.89" Inches)
- Width: 50mm (1.97" Inches)
- Height: 175mm (6.89" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 3.97 lbs. (1.8 kg.)
- Finish: Plasma Nitrided
Common Uses:

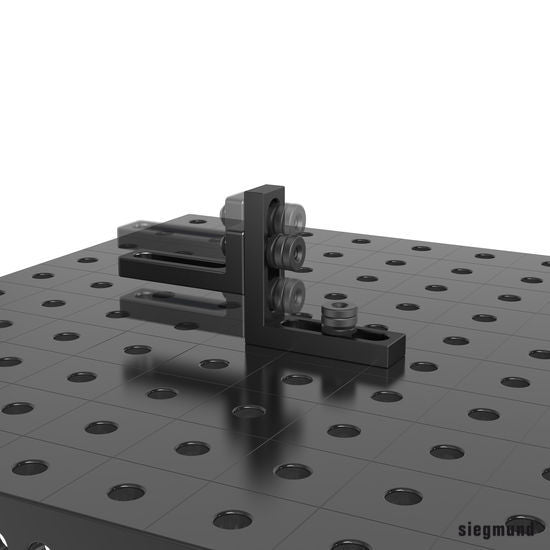

This nitrided stop and clamping square provides durable positioning for demanding welding tasks. It enables flexible alignment with elongated slots while securing large workpieces at precise angles. Fabricators use it for both clamping and stopping functions when building assemblies, ensuring accuracy and strength under repeated shop use.
