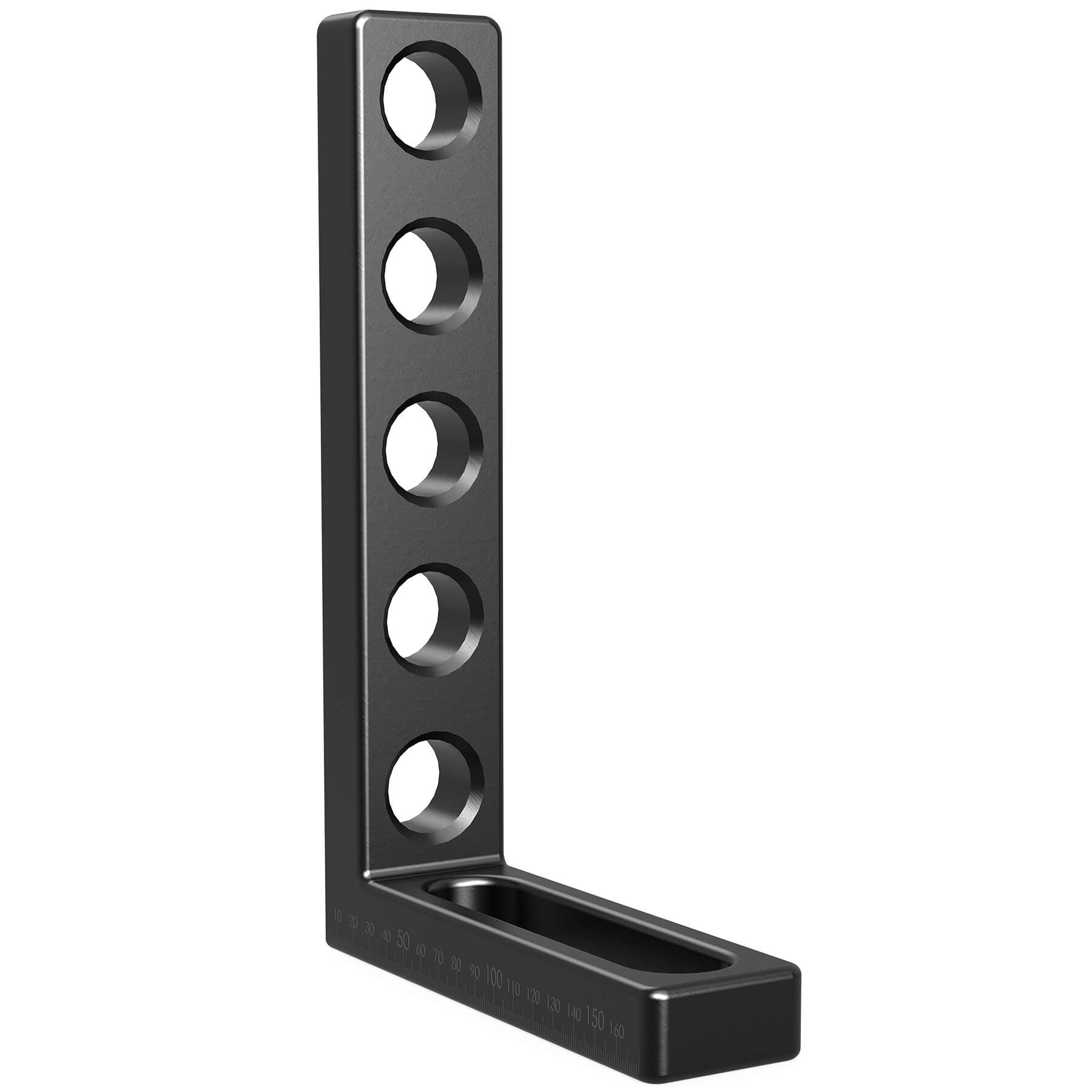

The 275x175mm Stop and Clamping Square L Nitrided provides multifunctional use as a cast iron square, table extension, or adjustable stop for larger components. With boreholes and an elongated slot, it allows for secure positioning and flexible adjustment. Fine scaling on both sides ensures precise and repeatable setups, while the nitrided finish resists weld spatter, wear, and corrosion for long service life.
- Functions as a fixed square, table extension, or adjustable stop.
- Elongated slot allows versatile clamping and positioning.
- Fine scaling on both sides ensures repeatable accuracy.
- 25mm (0.98" Inches) material thickness delivers rigidity.
- Weight of 6.17 lbs. (2.8 kg.) provides stability in use.
- Durable nitrided finish extends service life.
Key Features:
- Provides multifunctional use for squaring, extending, or stopping.
- Elongated slot and boreholes expand clamping flexibility.
- Fine scaling enables accurate and repeatable positioning.
- Strong 25mm (0.98" Inches) thickness resists deflection.
- Compatible with Siegmund System 28 Metric Series tables.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 175mm (6.89" Inches)
- Width: 50mm (1.97" Inches)
- Height: 275mm (10.83" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 6.17 lbs. (2.8 kg.)
Common Uses:

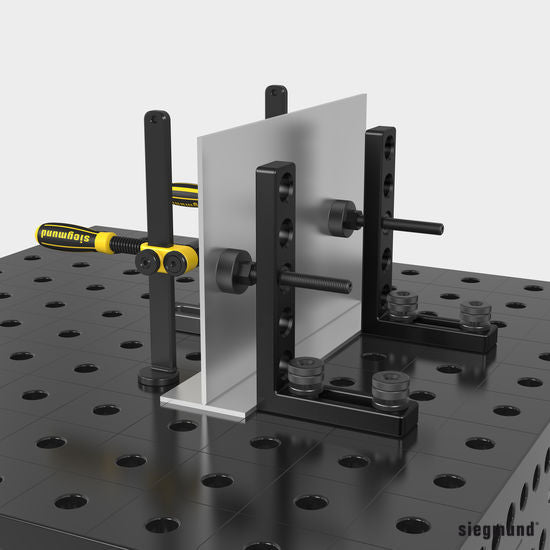

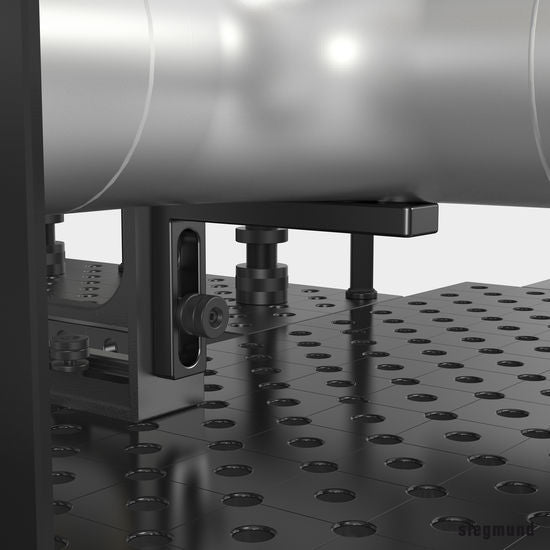

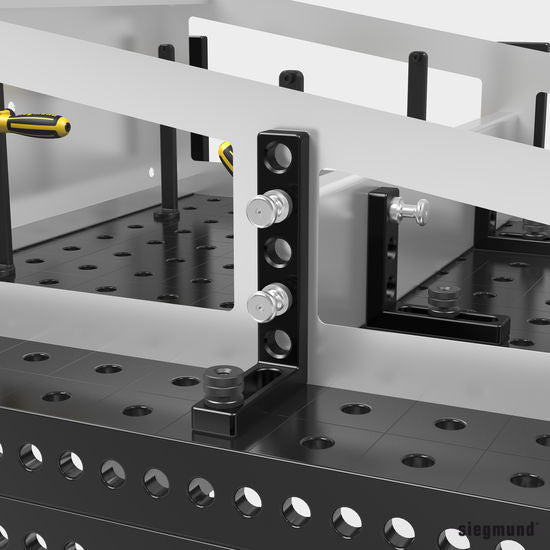

This stop and clamping square serves as both a fixed and adjustable fixture, providing reliable alignment and extension for welding and fabrication setups. It is especially effective for supporting taller components or acting as a table extension in flexible fixturing arrangements.
