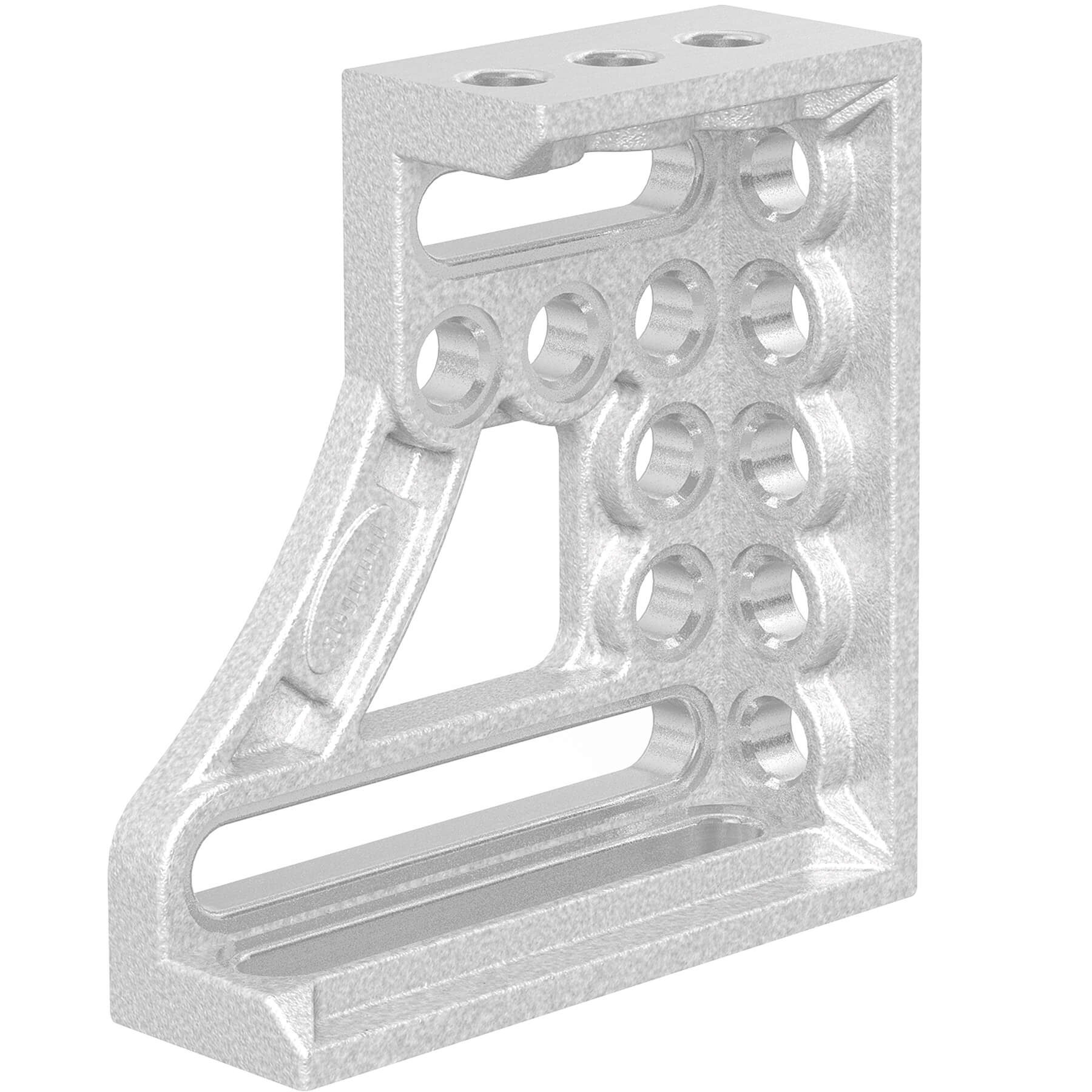

The Siegmund Stop and Clamping Square provides reliable support for fixturing large and heavy parts while keeping setup light and manageable. Built from an aluminum-titanium alloy, it balances strength with reduced weight, making it easier to handle without sacrificing stability.
- Three-dimensional design allows versatile clamping and stop options.
- Functions as both a stop and a table extension.
- Lightweight aluminum-titanium material improves handling and reduces strain.
- High-strength build delivers stability during heavy workholding.
- Standard fine scale ensures accurate positioning.
- Optimized for use in pairs for balanced setups.
Key Features:
- Lightweight yet durable aluminum-titanium alloy construction.
- Precise clamping with integrated fine scale.
- Three-dimensional design expands stop and extension options.
- Compatible with Siegmund System 28 Metric Series.
- Handles heavy parts while remaining easy to maneuver.
Specifications:
- Item No.: 2-280120
- System: Siegmund System 28 Metric Series
- Length: 280mm (11.02" Inches)
- Width: 95mm (3.74" Inches)
- Height: 300mm (11.81" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 11.02 lbs. (5 kg.)
- Material: Aluminum-Titanium Alloy
Common Uses:
This Stop and Clamping Square delivers secure positioning for large or heavy parts while minimizing operator fatigue thanks to its reduced weight. It serves as both a stable stop and a table extension, making it a versatile fixture element for precision welding and assembly tasks.
