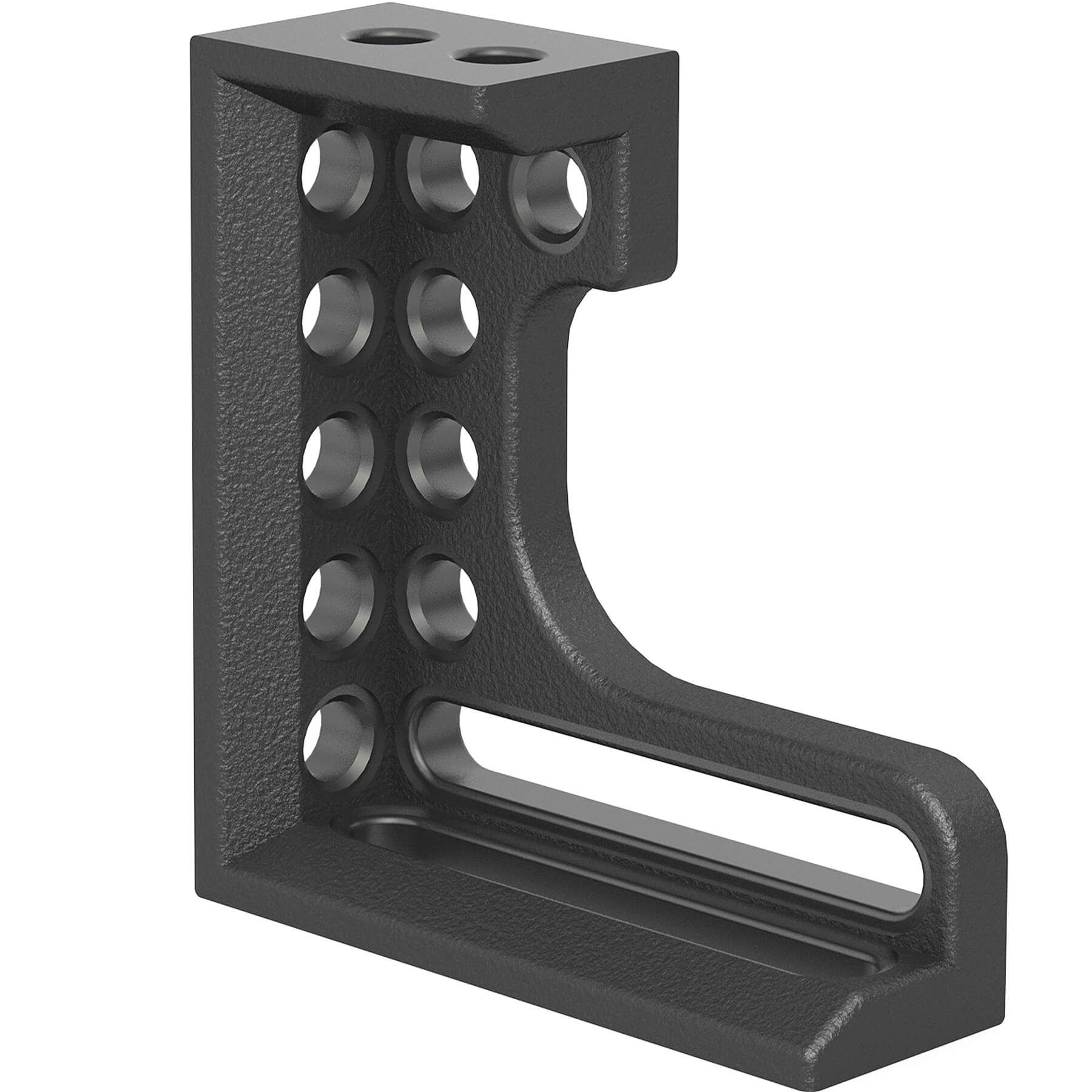

The Siegmund Stop and Clamping Square 300 GK Right is a heavy-duty fixture designed for precision alignment and stability in demanding welding and fabrication environments. Its three-dimensional shape enables multiple clamping options, while its nitrided finish ensures resistance against spatter, wear, and corrosion. Manufactured from GGG40 ductile cast iron, it offers superior rigidity and durability for heavy part applications.
- Three-dimensional design offers multiple clamping surfaces.
- Provides secure support for heavy parts with precise alignment.
- Functions as both a stop and as a table extension.
- Nitrided surface ensures long service life and spatter resistance.
- Recommended for paired use for balanced fixturing.
Key Features:
- 27mm thickness ensures rigidity under load.
- GGG40 ductile cast iron construction for maximum strength.
- Right-hand orientation for matched use with left-hand version.
- Fine scale standard for accurate, repeatable setups.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 280mm (11.02" Inches)
- Width: 95mm (3.74" Inches)
- Height: 300mm (11.81" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 28.44 lbs. (12.9 kg.)
- Material: GGG40 Ductile Cast Iron

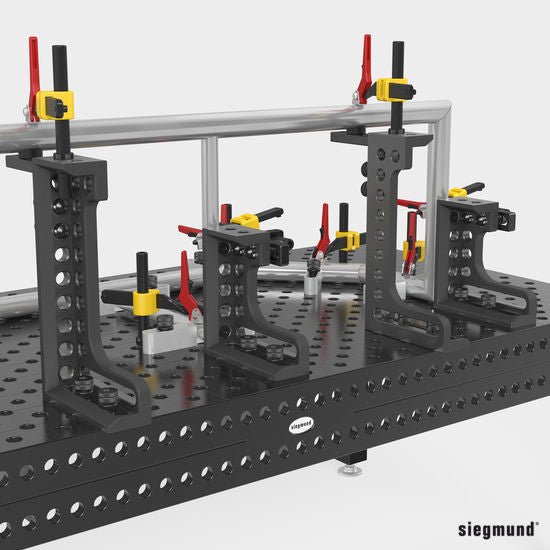

Common Uses:
The Stop and Clamping Square 300 GK Right provides robust fixturing for heavy-duty fabrication tasks. Its three-dimensional design allows versatile clamping, while its size and strength make it ideal for working with large or heavy components. Serving as both a square stop and a table extension, it is highly effective when paired with the left-hand version for stable and precise assembly setups.
