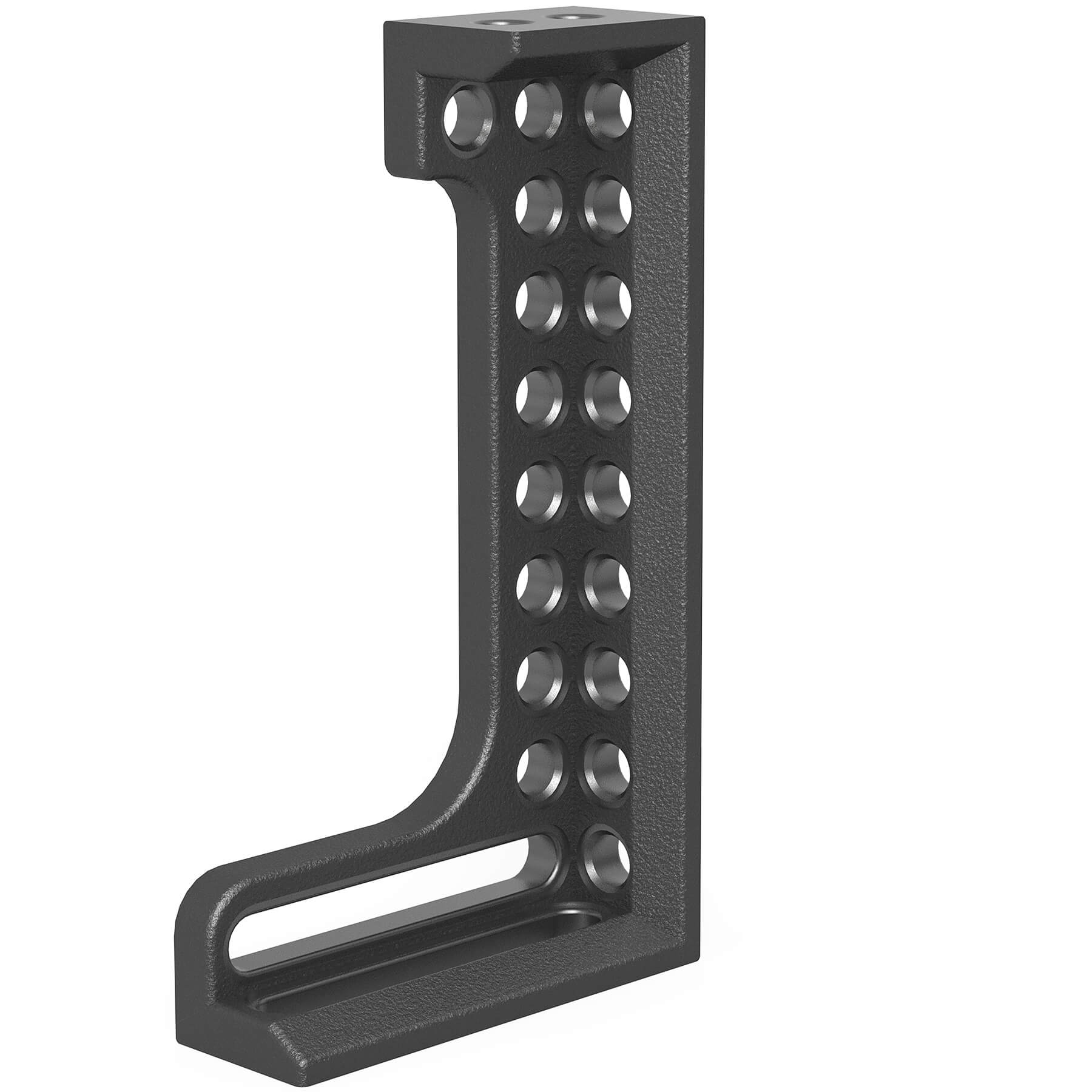

The Stop and Clamping Square 500 GK Left Nitrided delivers stability and versatility for heavy-duty welding and fixturing setups. Its three-dimensional design allows precise positioning while supporting large components with confidence. Built from GGG40 ductile cast iron, it combines strength with long-term durability for demanding shop environments.
- Provides reliable use as both a stop and a table extension.
- Offers three-dimensional clamping options for flexible setups.
- Manufactured from GGG40 ductile cast iron for maximum stability.
- Nitrided finish increases wear resistance and service life.
- Left-side orientation with integrated fine scale.
- Recommended for use in pairs for balanced setups.
Key Features:
- High stability for heavy workpieces.
- Durable nitrided finish resists wear and corrosion.
- Supports both stop and extension applications.
- Left-oriented design with integrated scale.
- Engineered for compatibility with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 280mm (11.02" Inches)
- Width: 95mm (3.74" Inches)
- Height: 500mm (19.69" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 38.58 lbs. (17.5 kg.)
- Material: GGG40 ductile cast iron, nitrided
Common Uses:

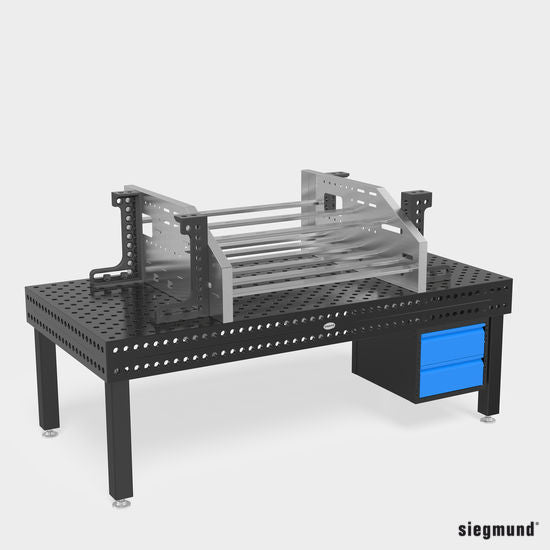

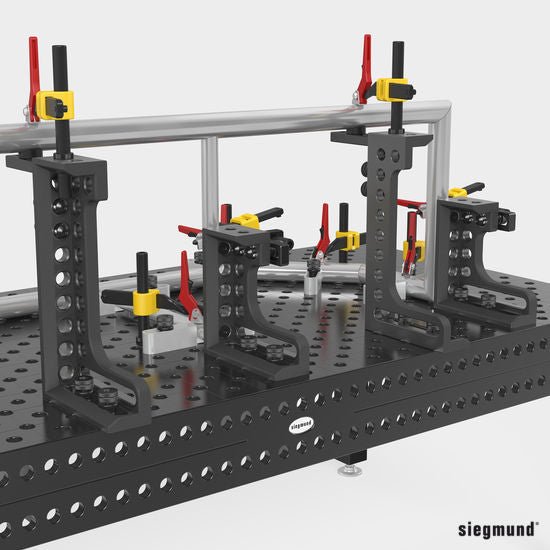

This Stop and Clamping Square provides secure and precise positioning of large, heavy components on Siegmund System 28 Metric Series tables. It serves effectively as both a rigid stop and a stable extension of the welding surface, enabling complex three-dimensional clamping setups. Shops rely on it when maximum stability and long-term durability are essential.
